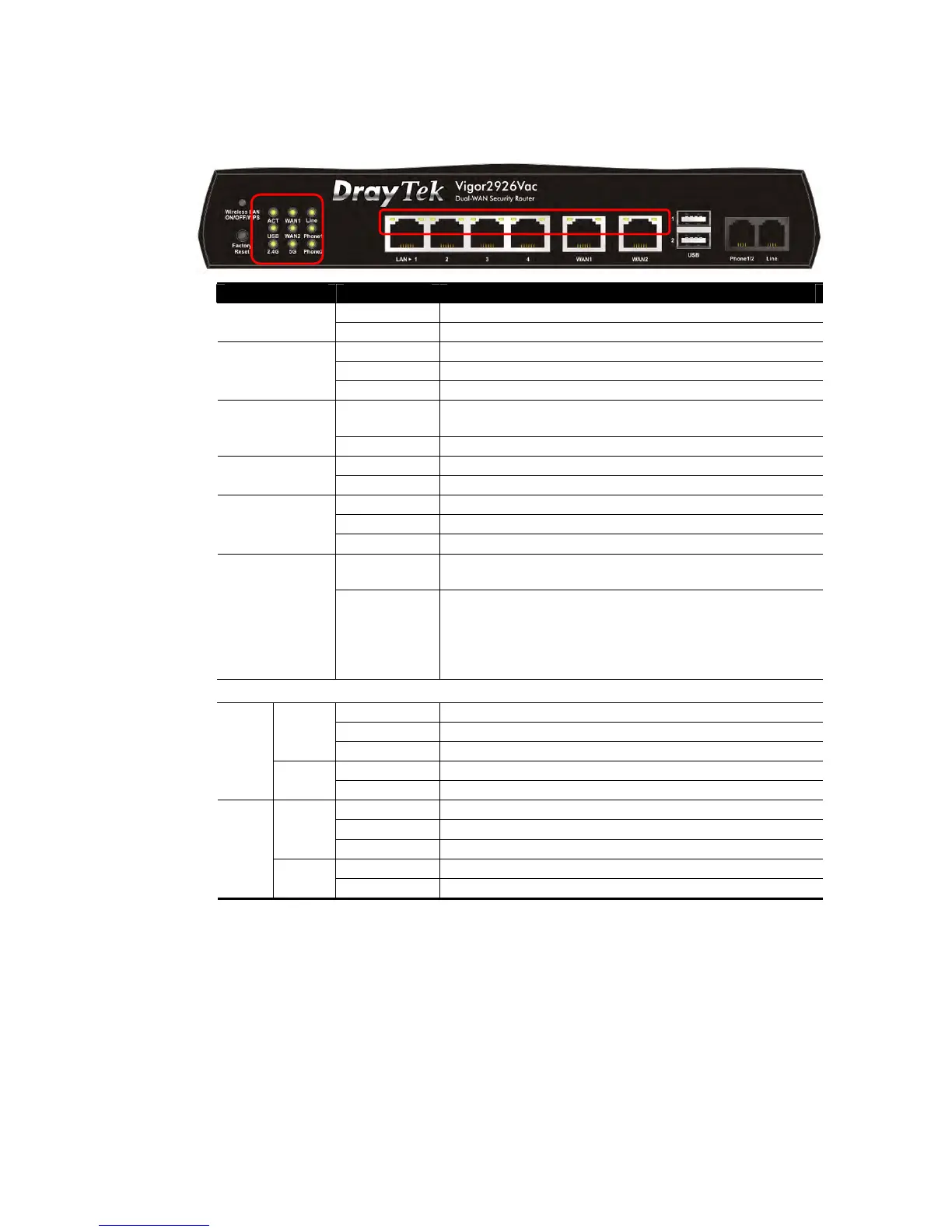

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
On Internet connection is ready.
Off Internet connection is not ready.
WAN1~
WAN2
Blinking The data is transmitting.
On A PSTN phone call comes (in and out). However, when
the phone call is disconnected, the LED will be off.
Line
Off There is no PSTN phone call.
On USB device is connected and ready for use. USB
Blinking The data is transmitting.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone1/Phone2
Blinking A phone call comes.
On
Wireless access point with bandwidth of 2.4GHz/5GHz
is ready.
2.4G/5G
Blinking
It will blink slowly while wireless traffic goes through.
ACT and WLAN LEDs blink quickly and simultaneously
when WPS is working, and will return to normal
condition after two minutes. (You need to setup WPS
within 2 minutes.)
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN1~
LAN4
Right
LED
Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN1
~
WAN2
Right
LED
Off The port is connected with 10/100Mbps
