WDS means Wireless Distribution System. It is a protocol for connecting two access points (AP)
wirelessly. Usually, it can be used for the following application:
 Provide bridge traffic between two LANs through the air.
 Extend the coverage range of a WLAN.
Refer to the following table:
WDS Mode Wireless
Signal
Comparisons
Bridge Limited
 Wireless stations (clients) within the effective range of
wireless signal can access into Internet through the router
/AP.
 Wireless stations (clients) out of the effective range of
wireless signal cannot access into Internet through the
router /AP with Bridge mode configured.
 The packets received from a WDS link will only be forwarded
to local wired or wireless hosts.
Repeater Extended
 Wireless stations (clients) within the effective range of
wireless signal can access into Internet through the router
/AP.
 Wireless stations (clients) out of the effective range of
wireless signal can access into Internet through the router
/AP with Repeater mode configured.
 The packets received from one Vigor router can be repeated
to another AP (remotely) through WDS links.
 Only Repeater mode can do WDS-to-WDS packet forwarding.
To meet the above requirement, two WDS modes are implemented in Vigor router. One is

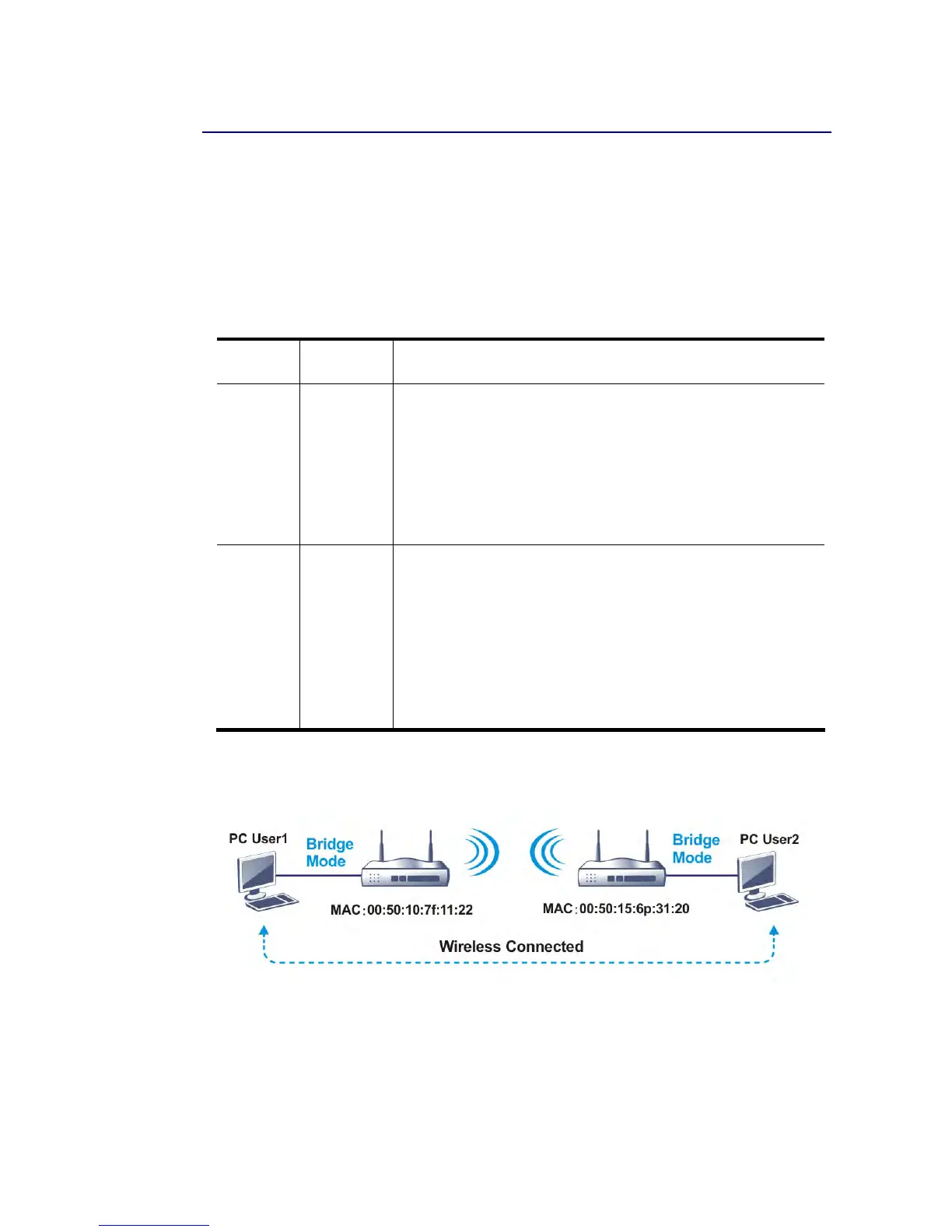

Bridge, the other is Repeater. Below shows the function of WDS-bridge interface:
The application for the WDS-Repeater mode is depicted as below:
