Multi-VLAN allows users to create profiles for specific WAN interface and bridge connections
for user applications that require very high network throughput. Simply go to WAN and select
Multi-VLAN.
G
G
e
e
n
n
e
e
r
r
a
a
l
l

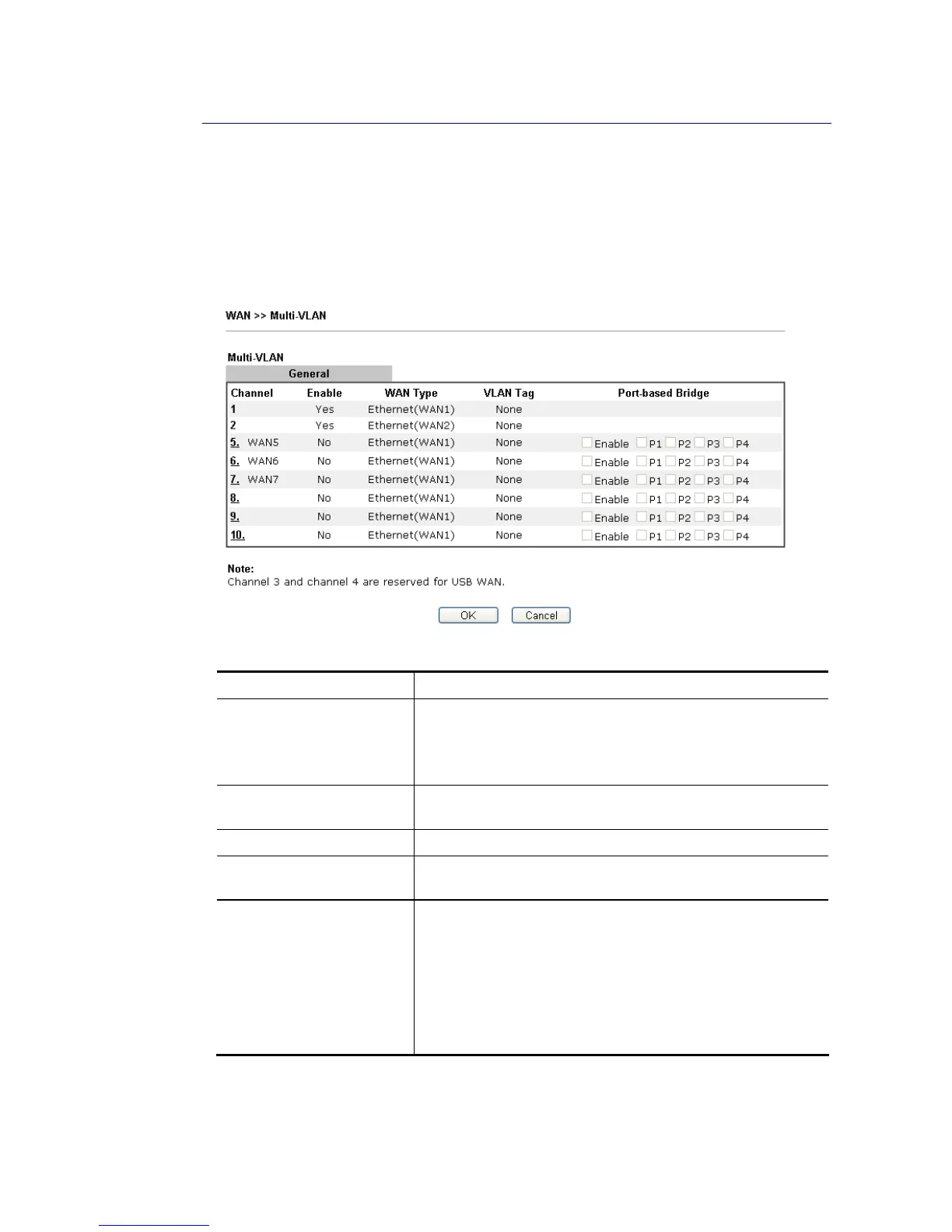

This page shows the basic configurations used by every channel.
Available settings are explained as follows:
Item Description
Channel Display the number of each channel.
Channels 1 and 2 are used by the Internet Access web user
interface and can not be configured here.
Channels 5 ~ 10 are configurable.
Enable Display whether the settings in this channel are enabled
(Yes) or not (No).
WAN Type Displays the physical medium that the channel will use.
VLAN Tag Displays the VLAN tag value that will be used for the packets
traveling on this channel.
Port-based Bridge The network traffic flowing on each channel will be
identified by the system via their VLAN Tags. Channels using
the same WAN type may not configure the same VLAN tag
value.
Enable - Check this box to enable the port-based bridge
function on this channel.
P1 ~ P4 – Check the box(es) to build bridge connection on
LAN.
