6

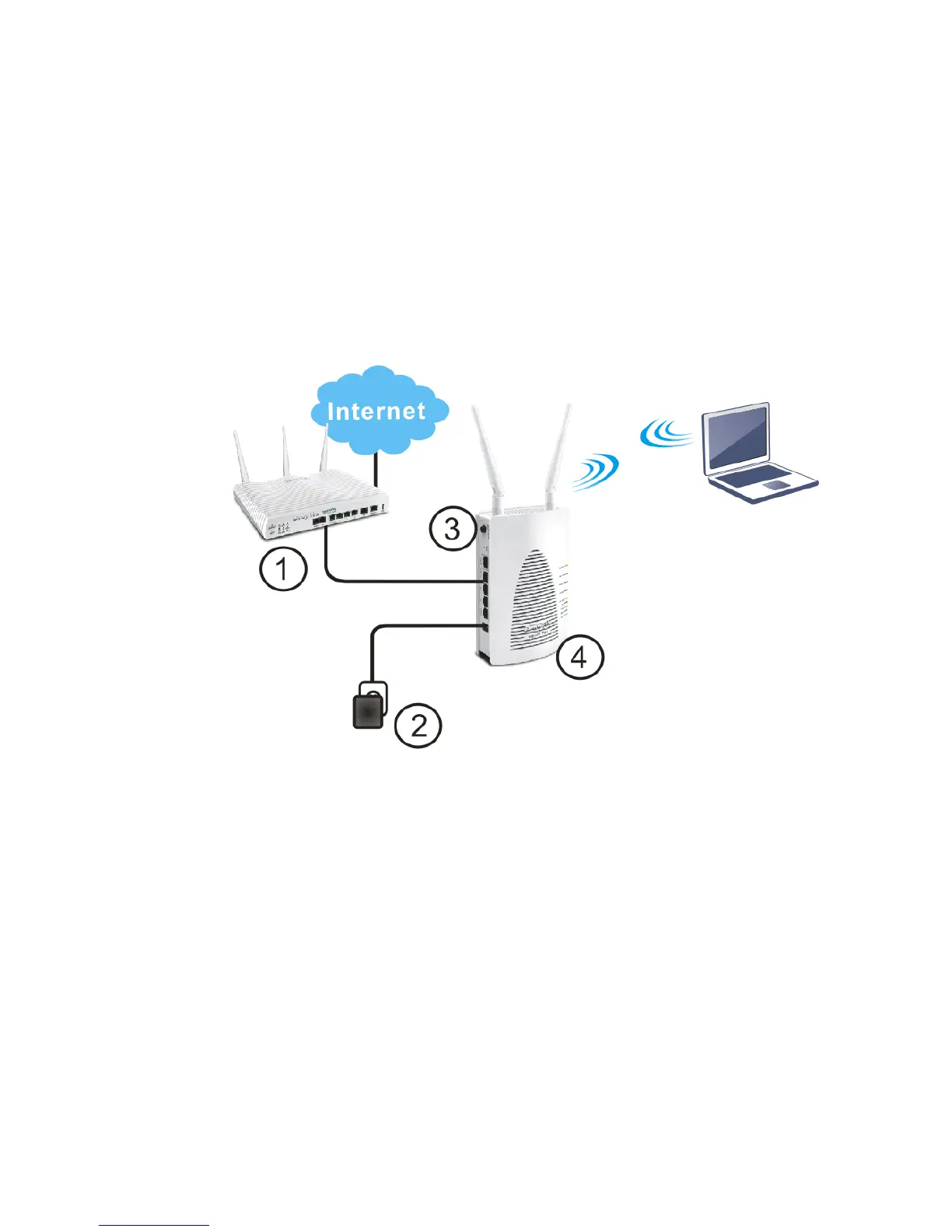

I-2-2 Wired Connection for Notebook in WLAN
1. Connect VigorAP 903 to ADSL modem or router in your network through the LAN A port of the
access point by Ethernet cable.
2. Connect the A/C power adapter to the wall socket, and then connect it to the PWR connector of the
access point.
3. Power on VigorAP 903.
4. Check all LEDs on the front panel. ACT LED should be steadily on, LAN LEDs should be on if the
access point is correctly connected to the ADSL modem or router.
(For the detailed information of LED status, please refer to section I-1-1.)
