I-2-4 PoE Connection
VigorAP 903 can gain the power from the connected switch, e.g., VigorSwitch P2260. PoE (Power over
Ethernet) can break the install limitation caused by the fixed power supply.

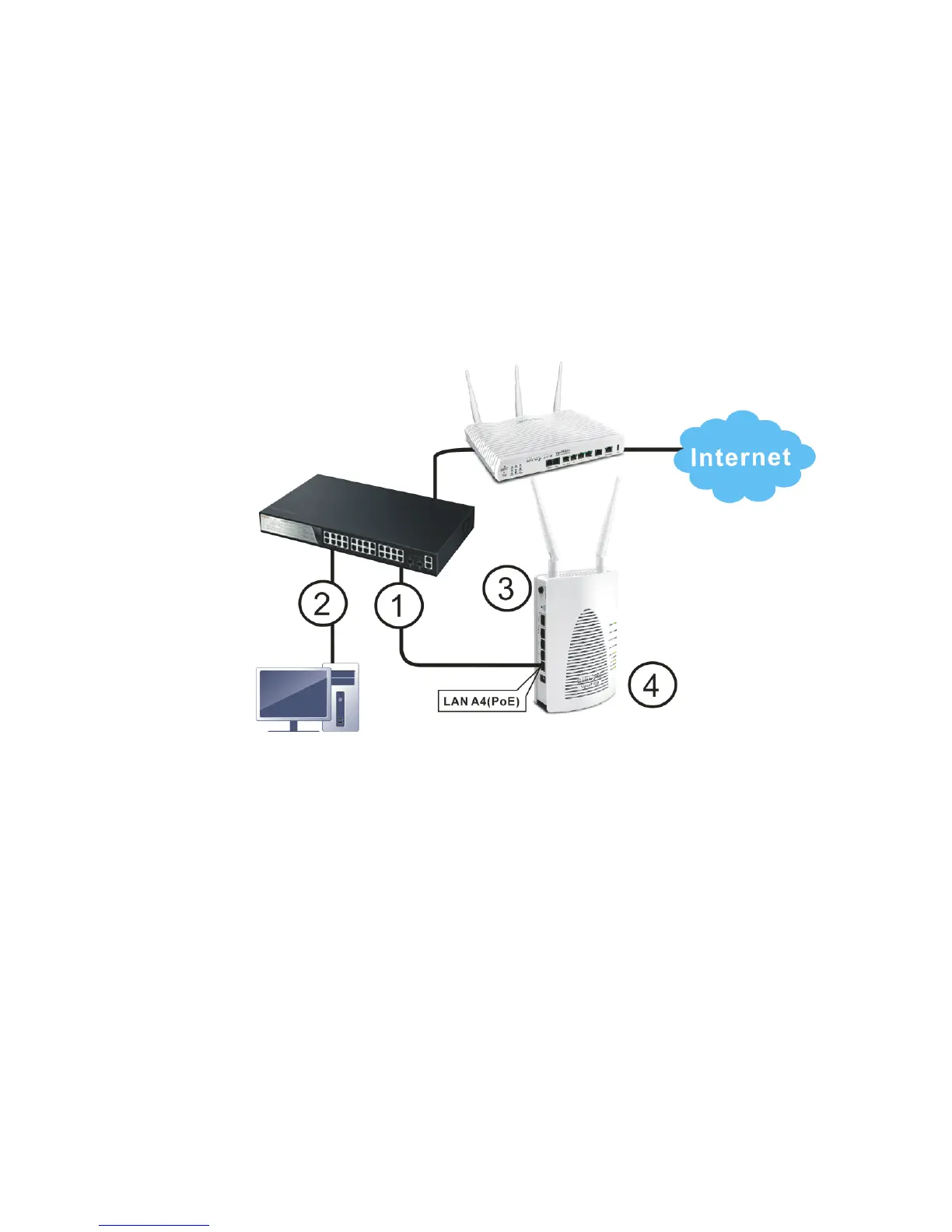

1. Connect VigorAP 903 to a switch in your network through the LAN A4 (PoE) port of the access
point by Ethernet cable.
2. Connect a computer to VigorSwitch P2260. Make sure the subnet IP address of the PC is the same as
VigorAP 903 management IP, e.g., 192.168.1.X.
3. Power on VigorAP 903.
4. Check all LEDs on the front panel. ACT LED should be steadily on, LAN LEDs should be on if the
access point is correctly connected to the ADSL modem, router or switch/hub.
