VigorAP 903 User’s Guide
126

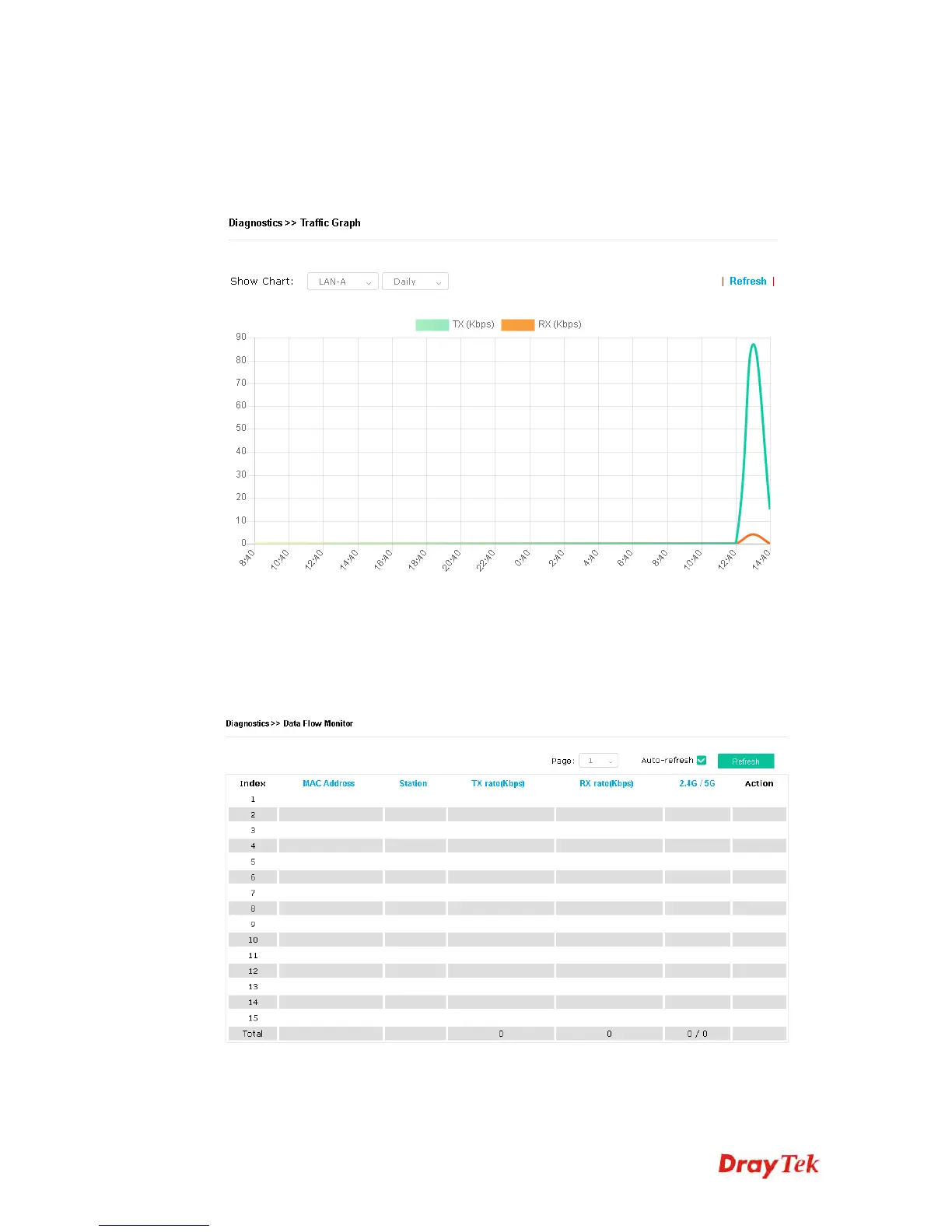

V-1-3 Traffic Graph
Click Traffic Graph to open the web page. Choose one of the managed Access Points, LAN-A or LAN-B,
daily or weekly for viewing data transmission chart. Click Refresh to renew the graph at any time.
The horizontal axis represents time; the vertical axis represents the transmission rate (in kbps).
V-1-4 Data Flow Monitor
This page displays general information for the client connecting to VigorAP 903.
