I-3-2 Windows 2000 IP Address Setup
Click Start button (it should be located at lower-left corner of your computer), then click control panel.
Double-click Network and Dial-up Connections
icon, double click Local Area Connection
,
and Local

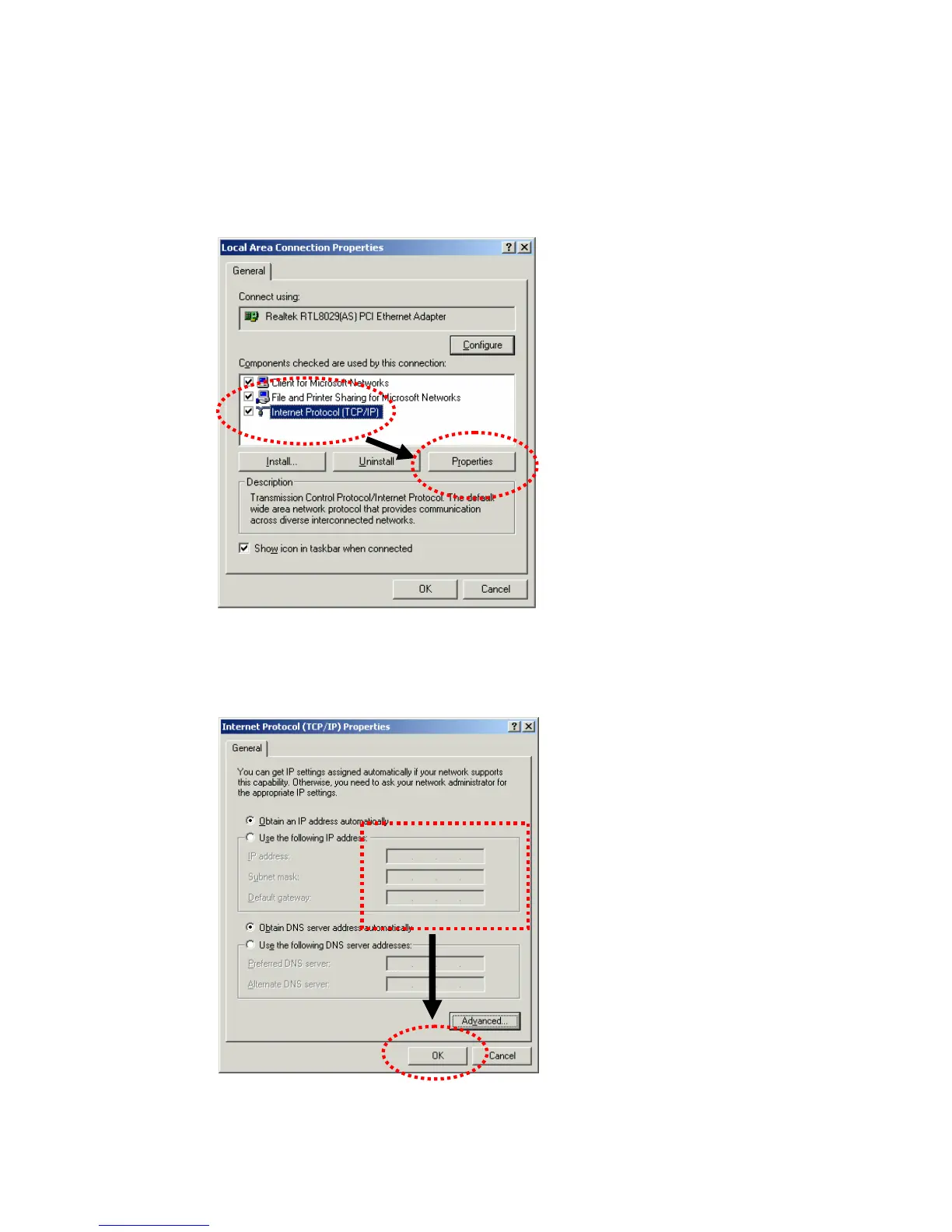

Area Connection Properties window will appear. Select Internet Protocol (TCP/IP), then click
Properties.
Select Use the following IP address, then input the following settings in respective field and click OK
when finish.
IP address: 192.168.1.9
Subnet Mask: 255.255.255.0
