1-2
Chapter1 Before Operation
2. Names and Functions of Components

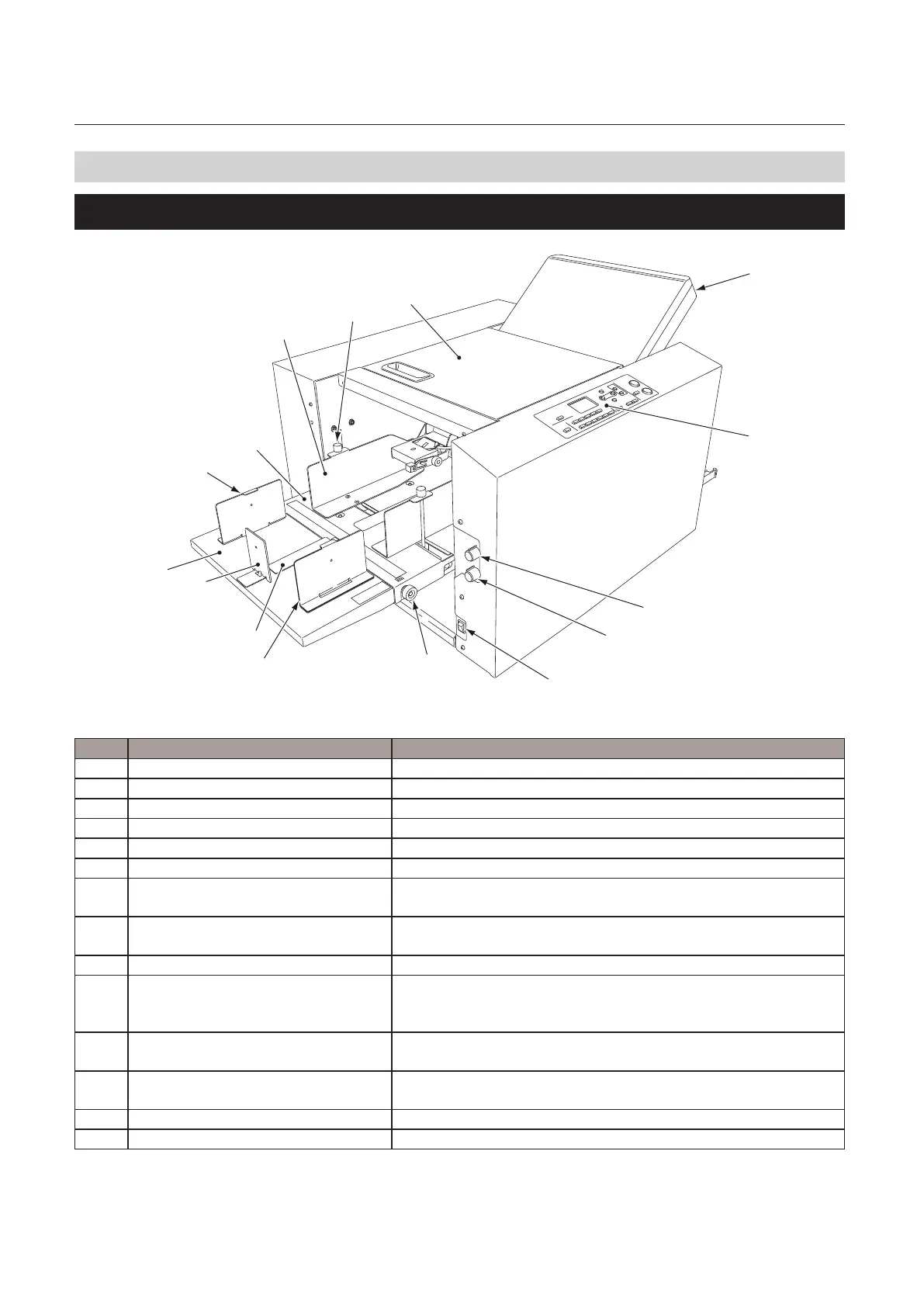

2-1. External parts
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
No. Name Function
[1] Folding plate 1 Guide plate for deciding the paper folding position.
[2] Control panel Use this panel to enter information to operate the machine
(p.1-7)
.
[3] Separating air adjustment For adjusting the separating air amount.
[4] Separator adjustment For adjusting the height of the separator.
[5] Power switch Refer to Chapter 2 “1. Turning On/O the Power”
(p.2-1)
.
[6] Skew correction knob Use this knob to correct the folding misalignment in both directions.
[7]
Side guide unit
Use this guide to hold both sides of paper when stacking long size
paper.
[8]
Plate unit
Use this unit to send separating air toward the rear end of paper
when stacking long sheets of paper.
[9] Trail edge guide unit Holds the back edge of paper stacked on the paper feed tray.
[10] Auxiliary paper feed tray For stacking paper on the paper feed tray in a stable condition. Do
not lean on the auxiliary paper feed tray or hold on to it to lift up the
machine.
[11] Paper feed tray For stacking the paper to be folded. Do not lean on the paper feed
tray or hold on to it to lift up the machine.
[12] Paper feed guide Holds both sides of paper when the paper is stacked on the paper
feed tray.
[13] Guide xing screw For securing the paper feed guide.
[14] Top cover Safety cover to prevent the user from touching the moving parts.
To Next Page
