Chapter 5 Trouble Guide

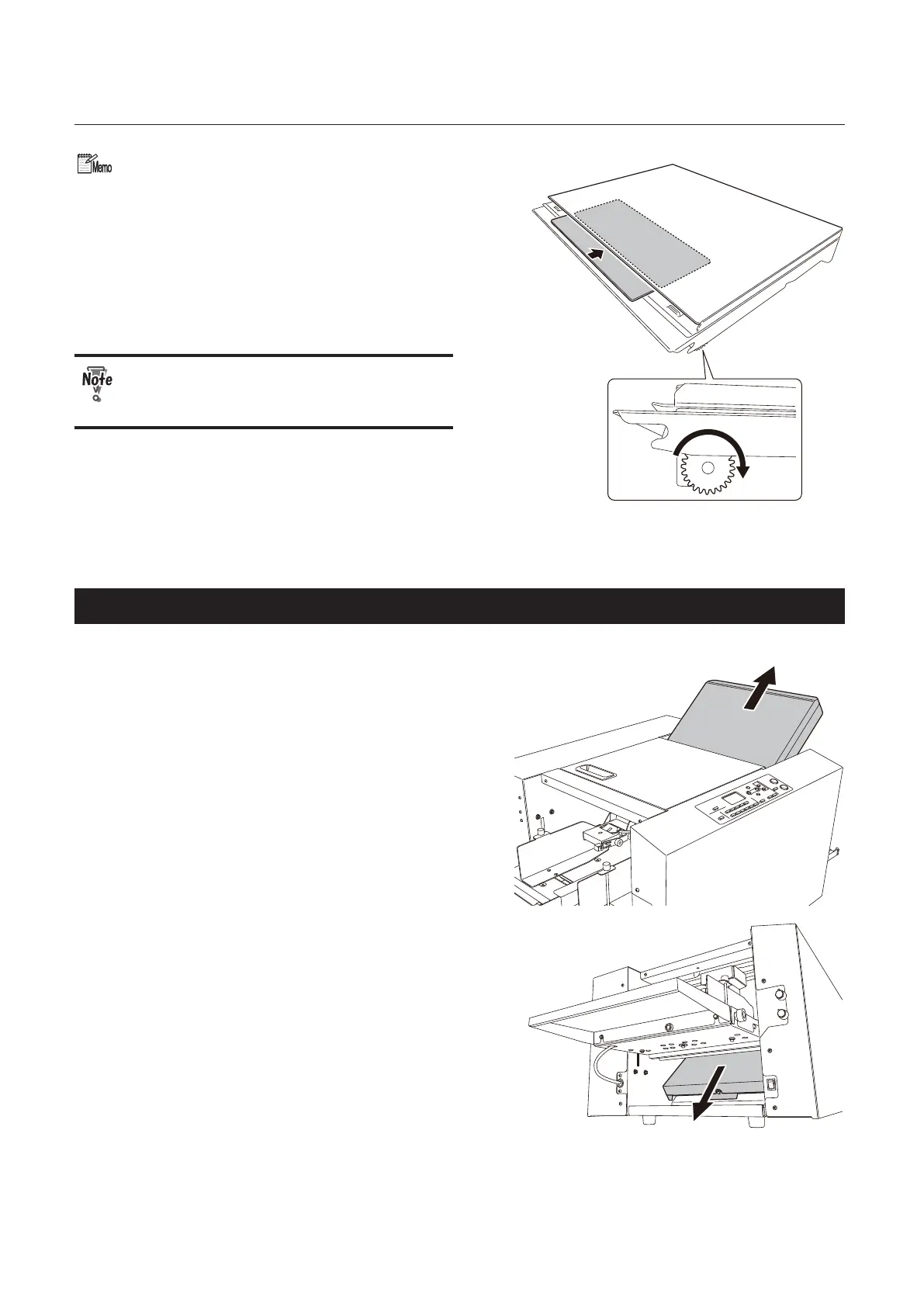

When having diculty in inserting the folding
plate 2, make sure that the stopper of the
folding plate 2 does not protrude beyond the
cover.
The folding plate cannot be inserted properly
as it bumps into interior parts if the stopper
protrudes beyond the cover. If this is the case,
turn the gear in the direction of an arrow to
move the stopper inside the cover.
Do not hold the belt section of the folding
plate 2. Doing so will result in malfunction
of the machine.
2-3. Folding roller
1
Take out the folding plate 1.
2
Take out the folding plate 2.
