1-5
Chapter1 Before Operation

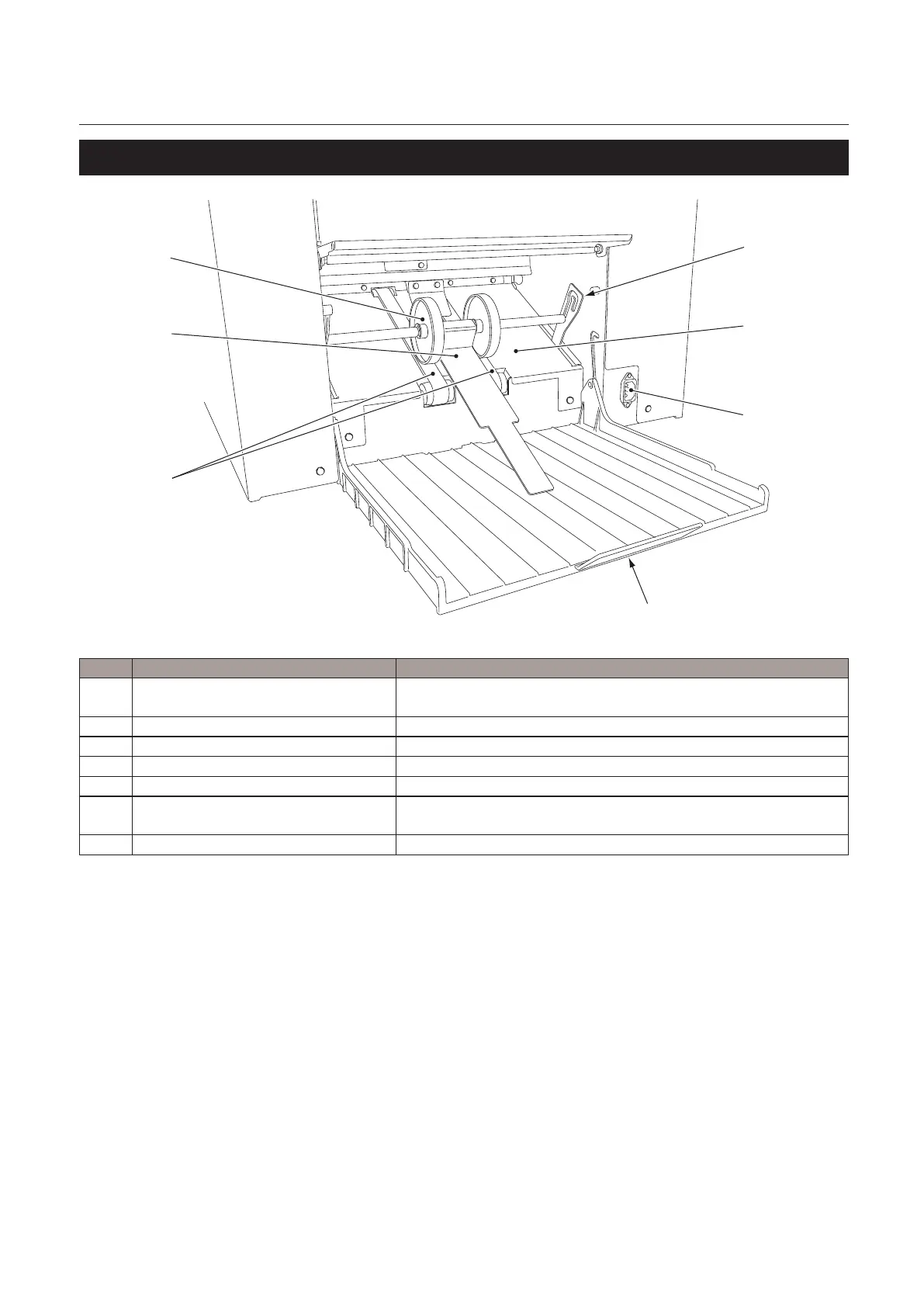

2-4. Internal parts (paper ejection section)
[1]
[3]
[4]
[2]
[5]
[6]
[7]
No. Name Function
[1] Stacker roller lever This is the lever that supports the stacker roller. The height of the
roller can be adjusted.
[2] Ejecting section For receiving folded paper ejected out.
[3] Power inlet Connector for the power cord.
[4] Paper receiving tray For stacking ejected paper.
[5] Stacker belt For ejecting folded paper.
[6] Auxiliary paper ejection guide Holds the ejected paper from the top and prevent the
mis-alignment of paper stacked on the paper feed tray.
[7] Stacker roller It holds down the ejected paper and supports conveyance of paper.
