Duplo DF-1200 - Folding Plate 1

5-5

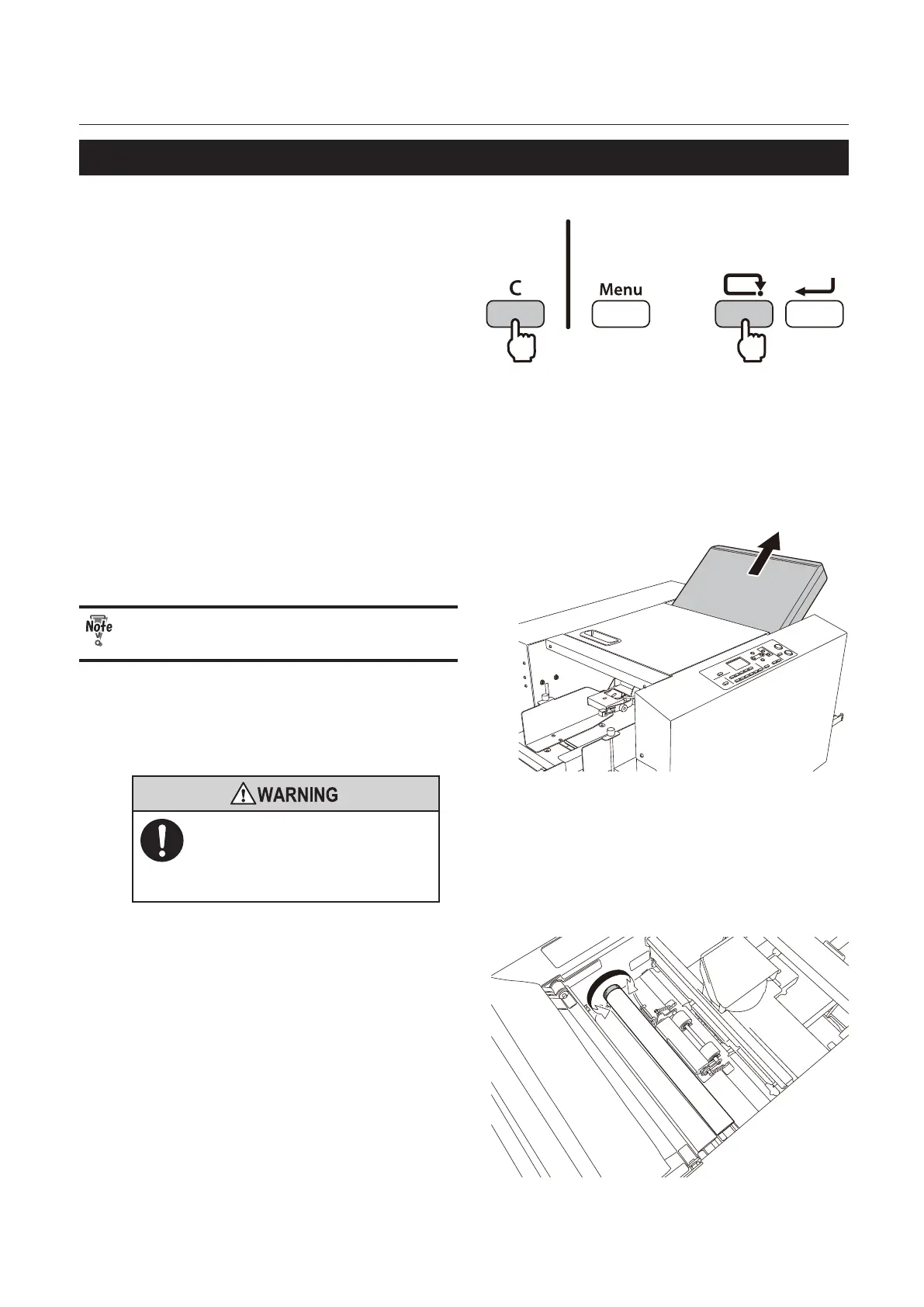

Chapter 5 Trouble Guide
2-2. Folding plate
Holding on the cancel key, press the
clear key.
Eject forcibly the paper inside the folding
plate.
Forcible ejection in the folding plate will not
stop until the folding stopper returns to the
home position, as the folding stopper moves,
even if the key is not held.
Even if the paper is not removed after forcible ejection, check the position of paper jam to remove the paper
with the following method.
Folding plate 1
1
Take out the folding plate 1.
Attach the folding plate 1 holding with
both hands.
2
Open the top cover.
Open or close the top cover
gently.
Hands or ngers may be caught in the
cover section. Doing so may result in
injury.
3
Pull out the paper rotating the jam
correction knob.
4
Close the top cover.
