1-7
Chapter1 Before Operation

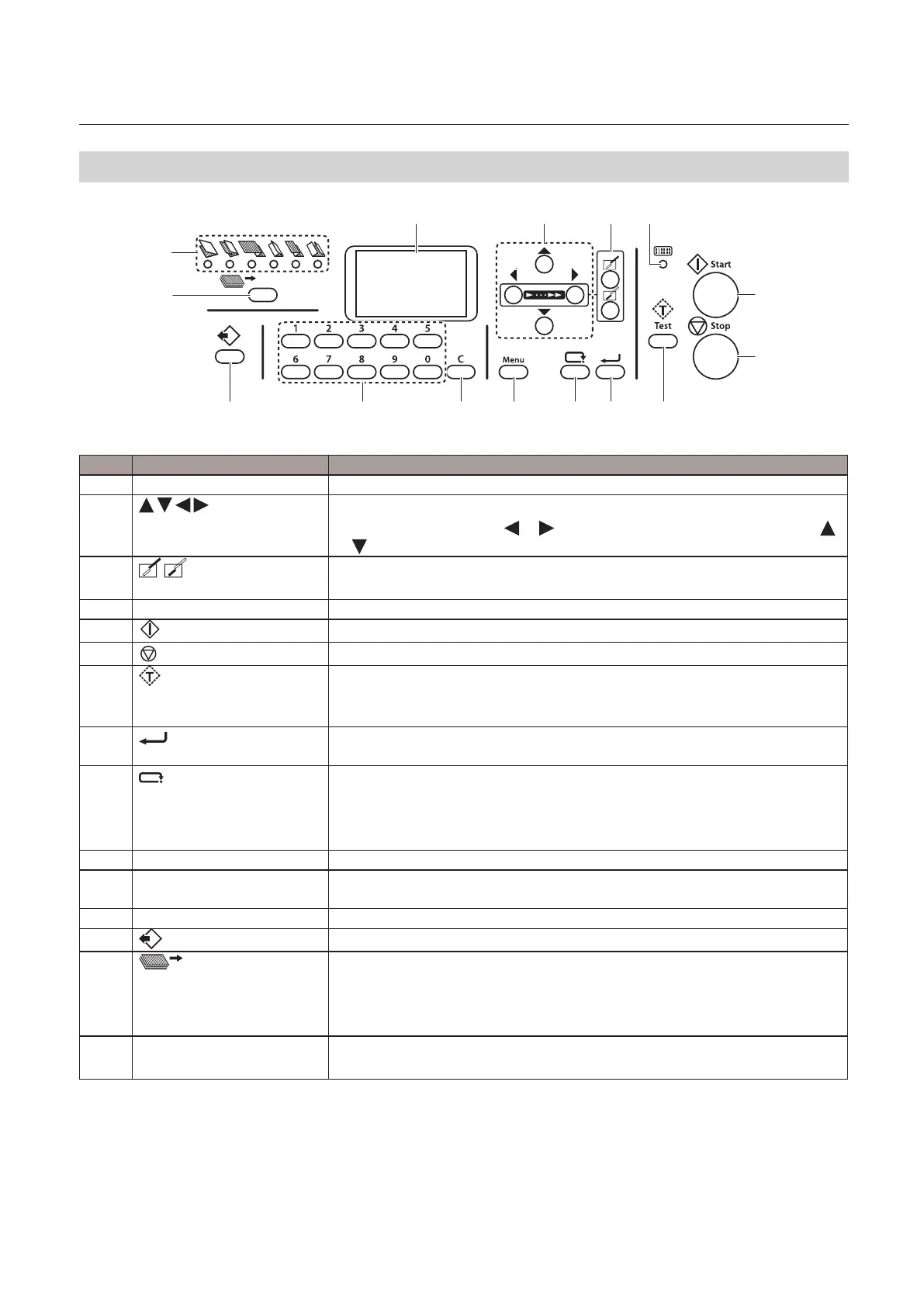

3. Names of Control Panel
[1] [2]
[3] [4]
[5]
[6]
[7]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[8]
No. Name Function
[1] LCD display Displays the menus or error messages.
[2]
key Used to change a value.
On the top screen use the
or key to change processing speed and the
or key to raise or lower the paper feed tray.
[3]
(Stopper adjustment) key
Press to open Stopper adjustment window of folding plates 1 and 2.
[4] Lamp When the machine is in the power saving mode, the lamp blinks slowly.
[5]
Start key
Press to start paper folding.
[6]
Stop key
Press to stop paper folding.
[7]
Test key
Press to test fold.
Paper thickness can be stored by test folding while double-feed detection is
[ON].
[8]
(Enter) key Press to enter the settings. Stopper adjustments can be stored by holding
down this key on the top screen.
[9]
(Cancel) key Use to cancel setting data.
Forces eject while cancel key and test key are pressed down at the same time.
Forces eject at folding plates while cancel key and clear key are pressed down
at the same time.
[10] Menu key Press to display the setting menu window.
[11] C (Clear) key Press to cancel the number of sheets to be processed, selected items or
settings.
[12] Keypad Use to input numeral value.
[13]
(Custom folding) key
Press to select the registered settings of custom folding.
[14]
(Folding mode) key Press to select the folding mode from six standard folding modes. When the
machine is switched on, the single folding mode lamp will light up.
Lighting up will shift to the right every time the key is pressed.
Single folding mode will be performed when custom folding is selected.
[15] Standard folding lamp Of the six standard folding modes, the lamp of the one selected will light up.
All the lamps will go out when the custom folding mode is selected.
To Next Page
