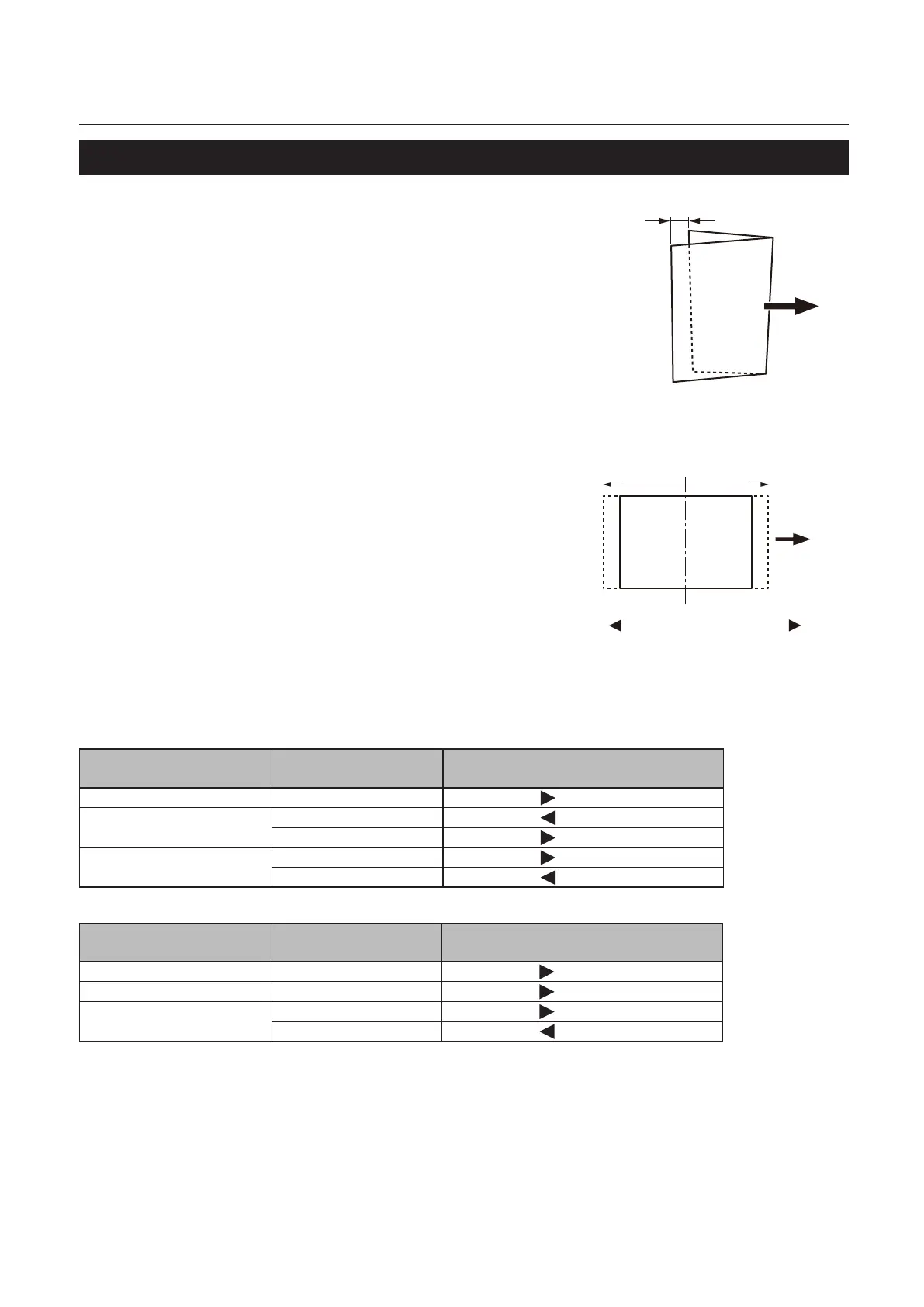

3-3
Chapter 3 Advanced Operation
1-2. Adjustment the folding misalignment in the up and down direction
Ejection
direction
When the folded paper is misaligned along
the vertical length, adjust the positions of the
folding stopper of folding plates 1 and 2 to
correct the misalignment.
Adjustable range and correction restrictions
Ejection
direction
Paper
-5.0 mm/0.20 inch
or less
+5.0 mm/0.20 inch
or less
Adjustment by
using the key.
Adjustment by
using the key.
Center
For standard folding, the adjustable range
using the stopper adjustment key is within ± 5
mm/0.20 inch from the center of the paper.
The positions of the folding stoppers of
folding plates 1 and 2 may not be adjustable
to ± 5 mm/0.20 inch according to the length
of the paper used.
For [Special folding] and [Stopper xing
mode], the folding positions are set directly
according to the paper length, and the
adjustable range of ± 5 mm/0.20 inch is not
restricted.
The restricted folding plate and adjustment details dier according to the folding mode and paper length.
For EU
Folding mode Restricted range of
paper length*
Restricted folding plate and
adjustment key
Double fold 182 to 203.9 mm Correction by
key of folding plate 2
Irregular accordion fold-out 182 to 182.7 mm Correction by
key of folding plate 1
182 to 199.9 mm Correction by
key of folding plate 2
Gate fold 424.4 to 432 mm Correction by
key of folding plate 1
421.8 to 432 mm Correction by
key of folding plate 2
For Noth America
Folding mode Restricted range of
paper length*
Restricted folding plate and
adjustment key
Double fold 7.17 to 8.02 inches Correction by
key of folding plate 2
Irregular accordion fold-out 7.17 to 7.90 inches Correction by
key of folding plate 2
Gate fold 16.69 to 17.00 inches Correction by
key of folding plate 1
16.56 to 17.00 inches Correction by
key of folding plate 2
* Range of paper length which cannot be corrected to ± 5 mm/0.20 inch. The adjustment value diers
according to the paper length.
