1-3
Chapter1 Before Operation

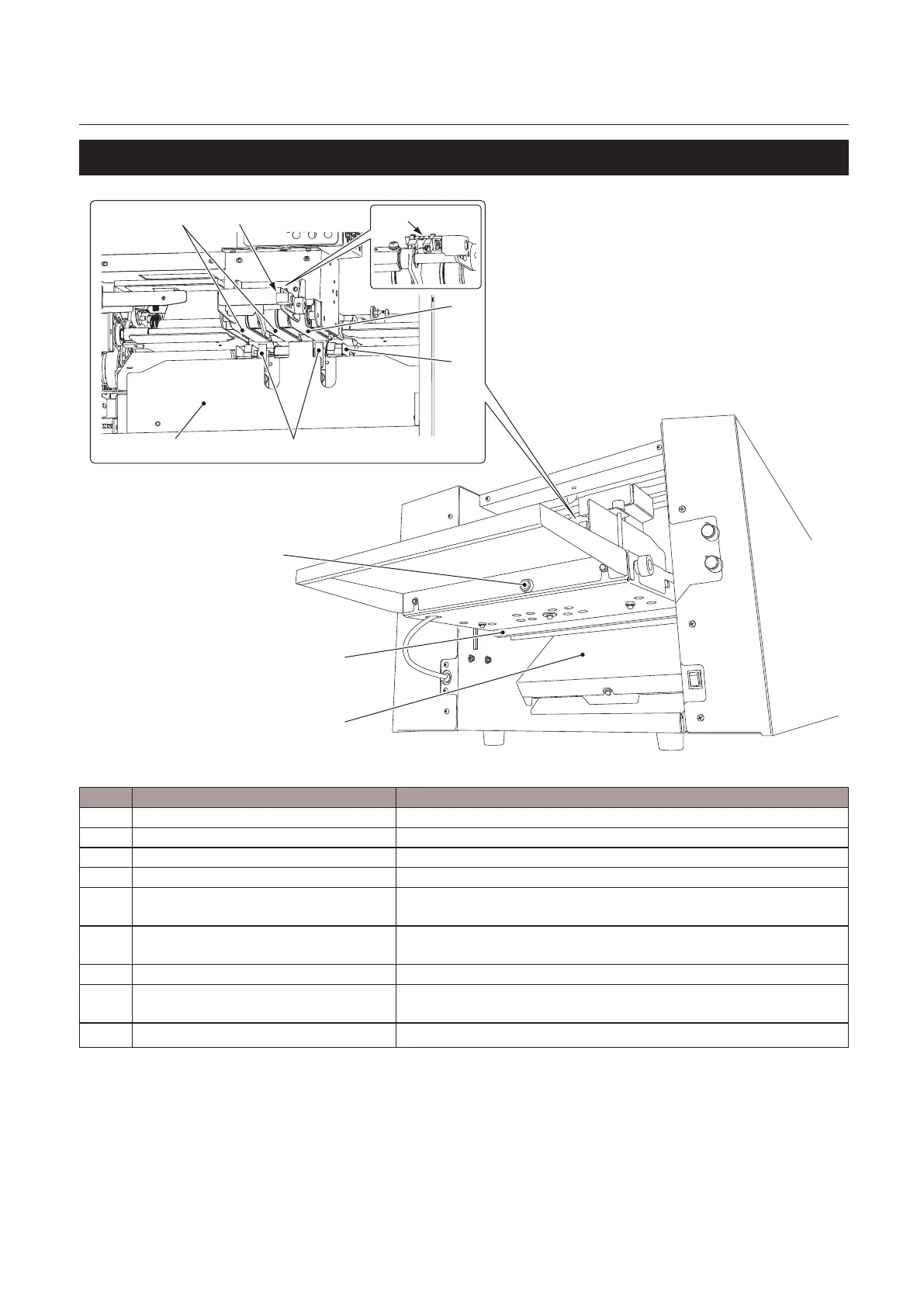

2-2. Internal parts (paper feed section)
[8]
[7]
[4][6]
[3]
[2]
[1][2]
[5]
[9]
No. Name Function
[1] Stack height sensor adjustment For adjusting the distance between the paper and suction belt.
[2] Suction belt Sucks and conveys paper.
[3] Separating-air duct Blows out air for separating paper stacked on the paper feed tray.
[4] Separator Prevents double-feed.
[5] Paper feed tray level sensor This is a sensor to decide the height of paper which is oating by
separating air.
[6] Shutter Adjusts the amount of separating air blown out. Use the separating
air adjusting knob to adjust the amount.
[7] Folding plate 2 Guide plate for deciding the paper folding position.
[8] Safety lever This lever prevents ngers from getting caught when the paper tray
is lowered.
[9]
Knob screw This screw secures the auxiliary paper feed tray in place.
