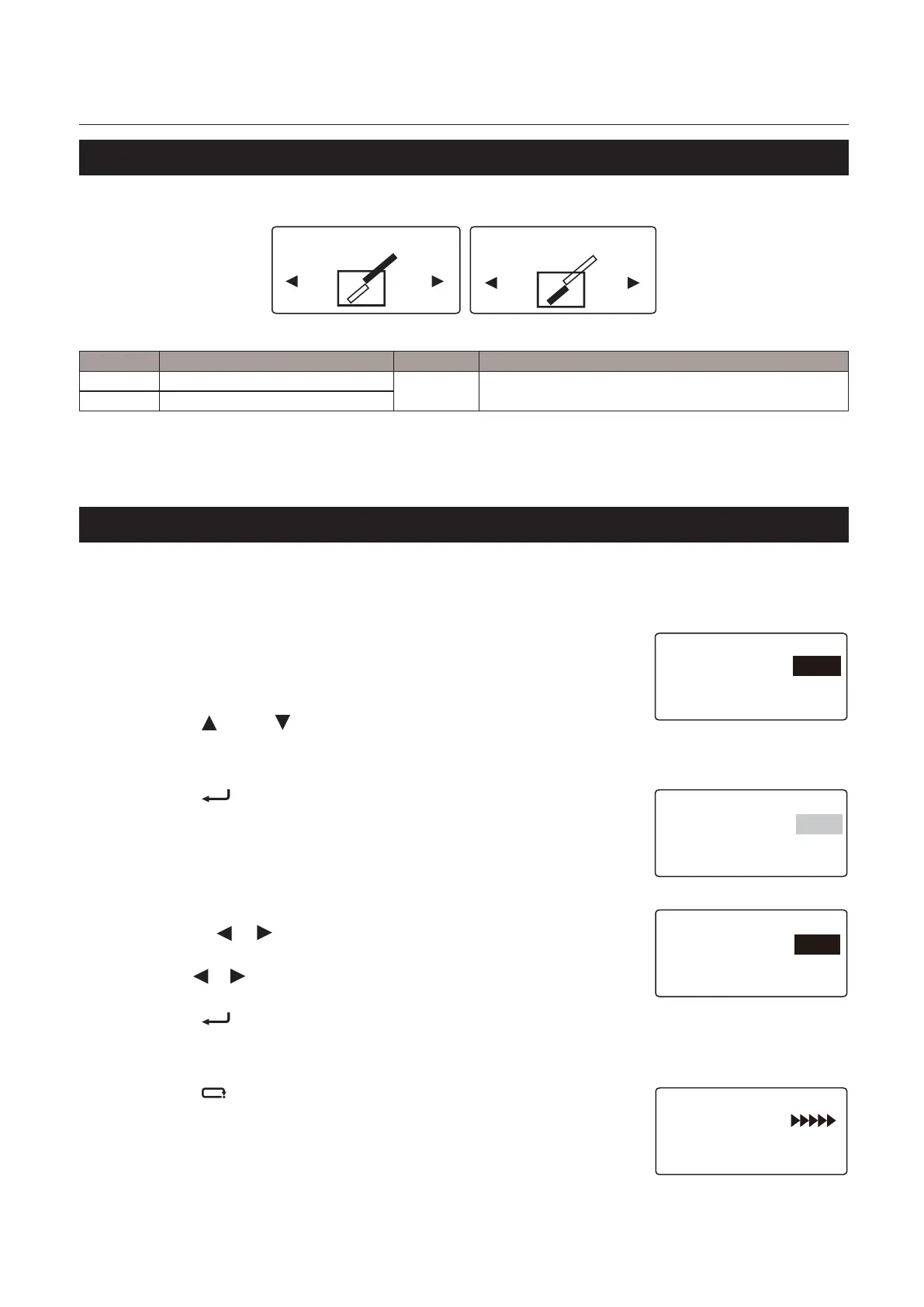

Chapter1 Before Operation
4-3. Stopper adjust screen
A4 +0.0/
- +
+ -
A4 +0.0/+0.0
[A] [B]
Screen Item Display Details
[A] Folding plate 1 stopper correction ** * : Settings (-5.0 to 5.0/-0.20 to 0.20)
[B] Folding plate 2 stopper correction
4-4. Operation on the menu screen
The basic operation on the menu screen is as follows. Here how to open [Air Adjust] window is explained as
an example.
Air Adjust
Sep. Air
45
Pickup Air 40
1
Press Menu while the top screen is
displayed.
A setting window will be displayed.
2
Press the key or key to select [Sep.
Air].
Air Adjust
Sep. Air 45
Pickup Air 40
3
Press the key.
At this stage numerical values can be changed.
Air Adjust
Sep. Air
50
Pickup Air 40
4
Input numerical values on the keypad
or with the
or key.
The numerical values can be changed by [5]
using the
or key.
5
Press the key.
The gures are set.
A4 +0.0/
Ready
0
6
Press the key.
Returns to the top screen.
