3-13
CHAPTER 3 STARTING BINDING OPERATION

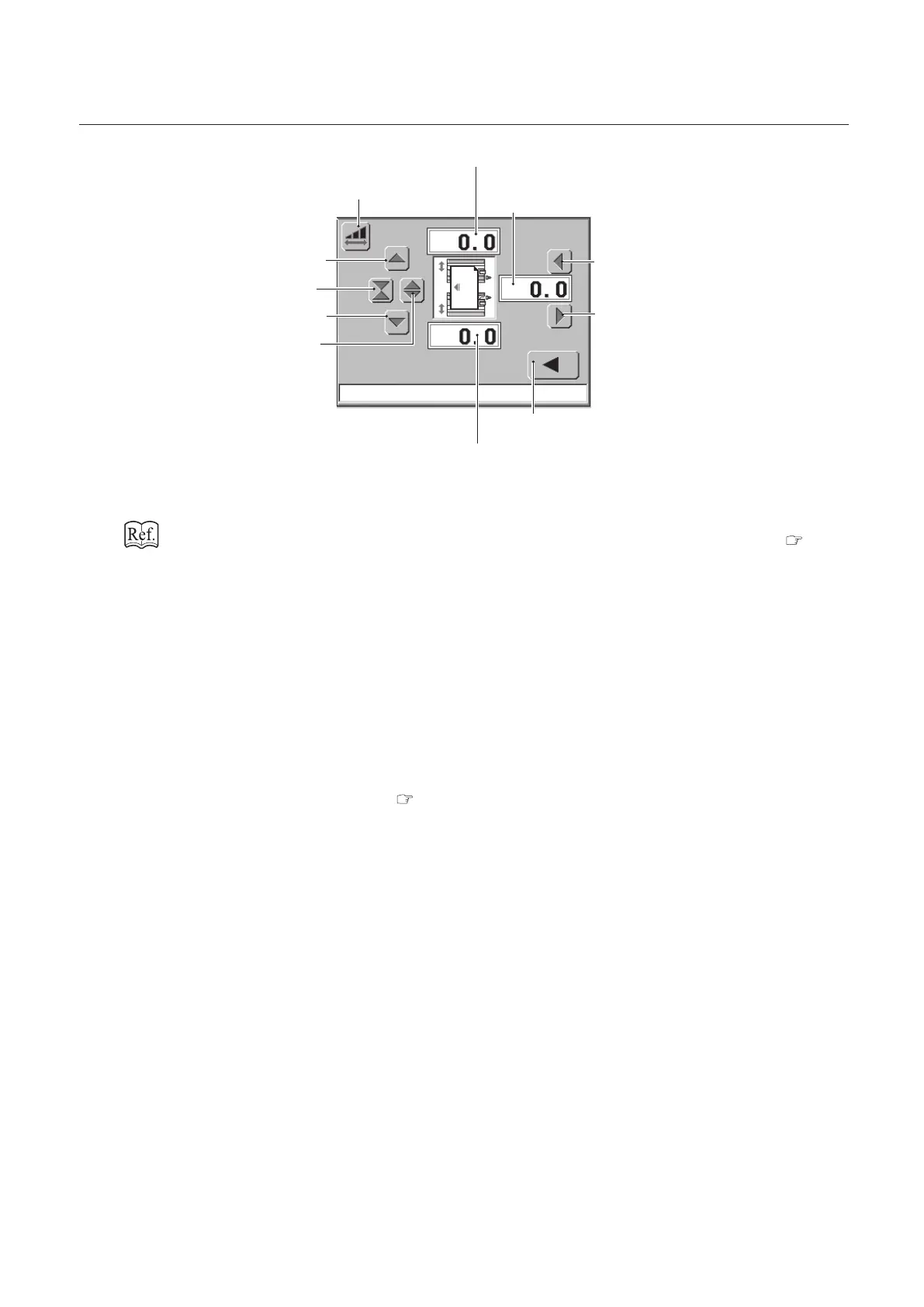

Increment Change Button
Nipping Guide (back) Fine-adjustment
Nipping Guide (front) Fine-adjustment
Previous Button
Move Button 1 Move Button 5
Move Button 6
Move Button 3
Move Button 2
Move Button 4
Positioning Fingers
Fine-adjustment
You can fine adjust the paper feed guides using the guide adjustment switches above the paper
feed tray when there is a cover on the nipping station.
Chapter 4 "Fine-adjustment and Option Setting" "1-3. Adjusting the Nipper Guide" ( p.4-5)
4) Press the move button 5 or 6 to adjust the position of the positioning fingers.
Fine-adjustment range: 0 to 25.0 mm (0 to 0.10 inch)
Move button 5: The positioning fingers move to the left.
Move button 6: The positioning fingers move to the right.
The increment you selected in step 3) will be automatically applied to the positioning fingers.
To change the increment, press the increment change button and select the increment from
0.1 mm/0.5 mm/1.0 mm (0.004 inch/0.02 inch/0.04 inch).
You can also adjust the positioning fingers by turning the positioning finger adjustments in the
range of 0 to 4 mm (0 to 0.16 inch) ( p.3-11).
5) Press the return button.
The nipping station will go down.
To Next Page
