Folder
108 Service Instructions 755 A/756 A - 00.0 - 02/2019

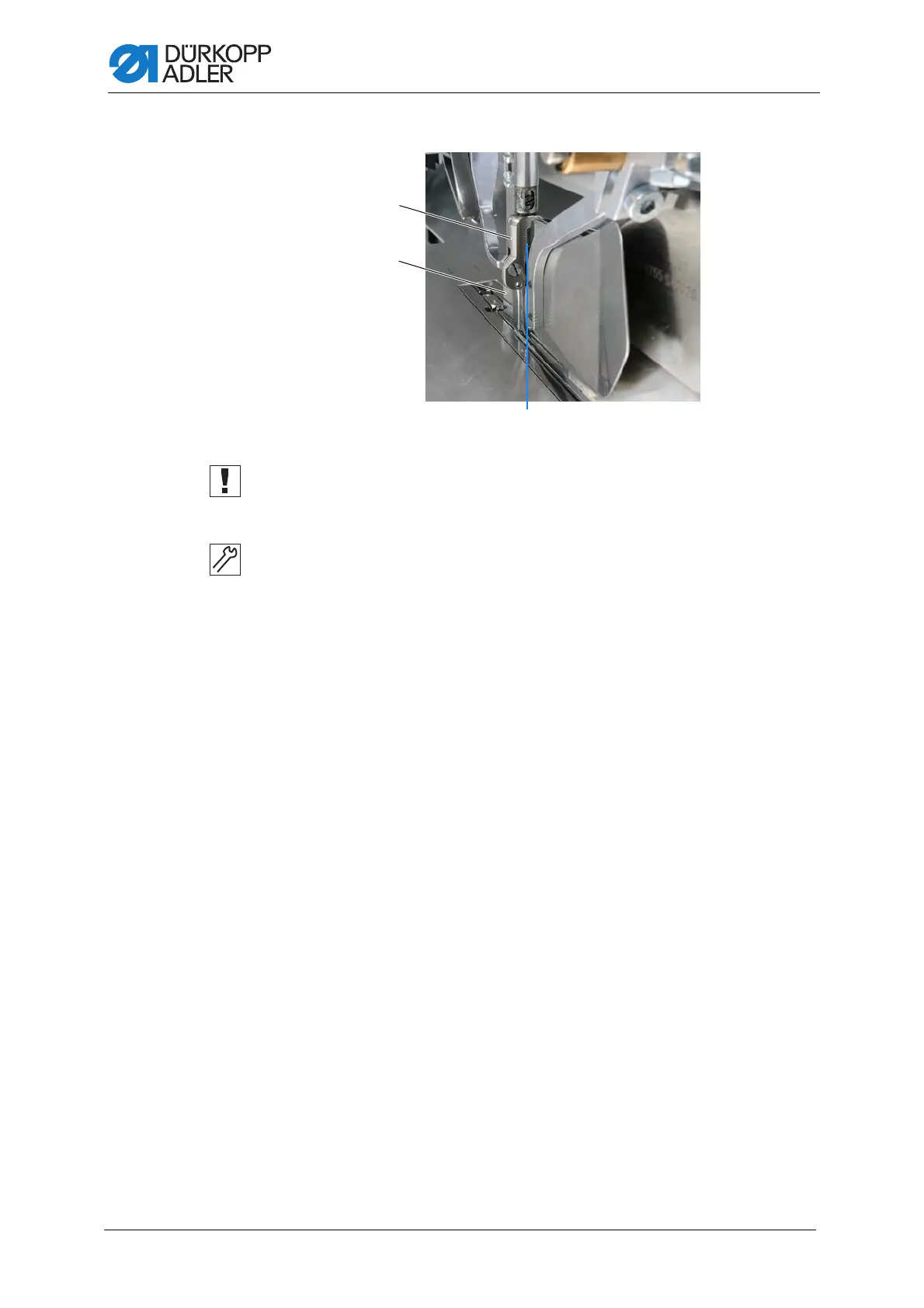

Fig. 112: Setting the guide plates at the folder (2)
Important
The inner side of the needle holder (7) must not come into contact with
the guide plates (1). The distance between the two should be 0.5 mm.
5. Tighten the screw (2).
6. Check the spring pressure of the guide plates (1).
7. Turn the screw (5) to adjust the spring pressure of the guide plates (1).
8. Set the limit of the guide plates (1) using screws (3) and (4).
• to set the lower limit of the guide plates (1): Turn the screw (3)
• to set the upper limit of the guide plates (1): Turn the screw (4)
(1) - Guide plates (7) - Needle holder
