Transport carriage

Service Instructions 755 A/756 A - 00.0 - 02/2019 119

To change the toothed belt:

1. Loosen the screws (3).

2. Remove toothed belt cover (6).

3. Loosen the screws (1).

4. Reduce the toothed belt tension using the screw (2).

5. Loosen the screws (5).

6. Cut and pull out the toothed belt (4).

Fig. 121: Changing the toothed belt (2)

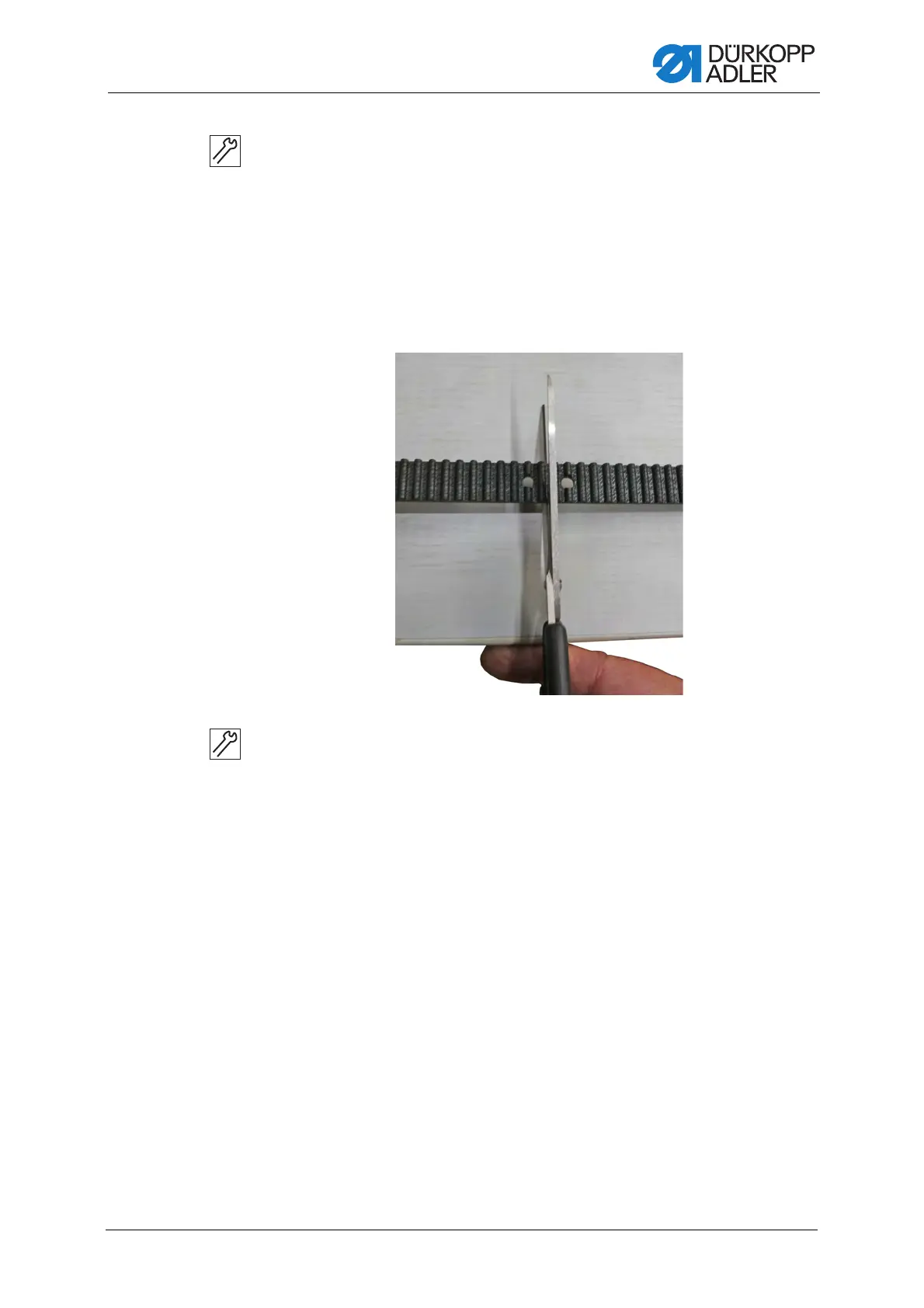

7. Cut the toothed belt between the holes.

8. Fit a new toothed belt and tighten it with the screws (5).

9. Set the toothed belt tension ( p. 120).
