Transport clamps

Service Instructions 755 A/756 A - 00.0 - 02/2019 129

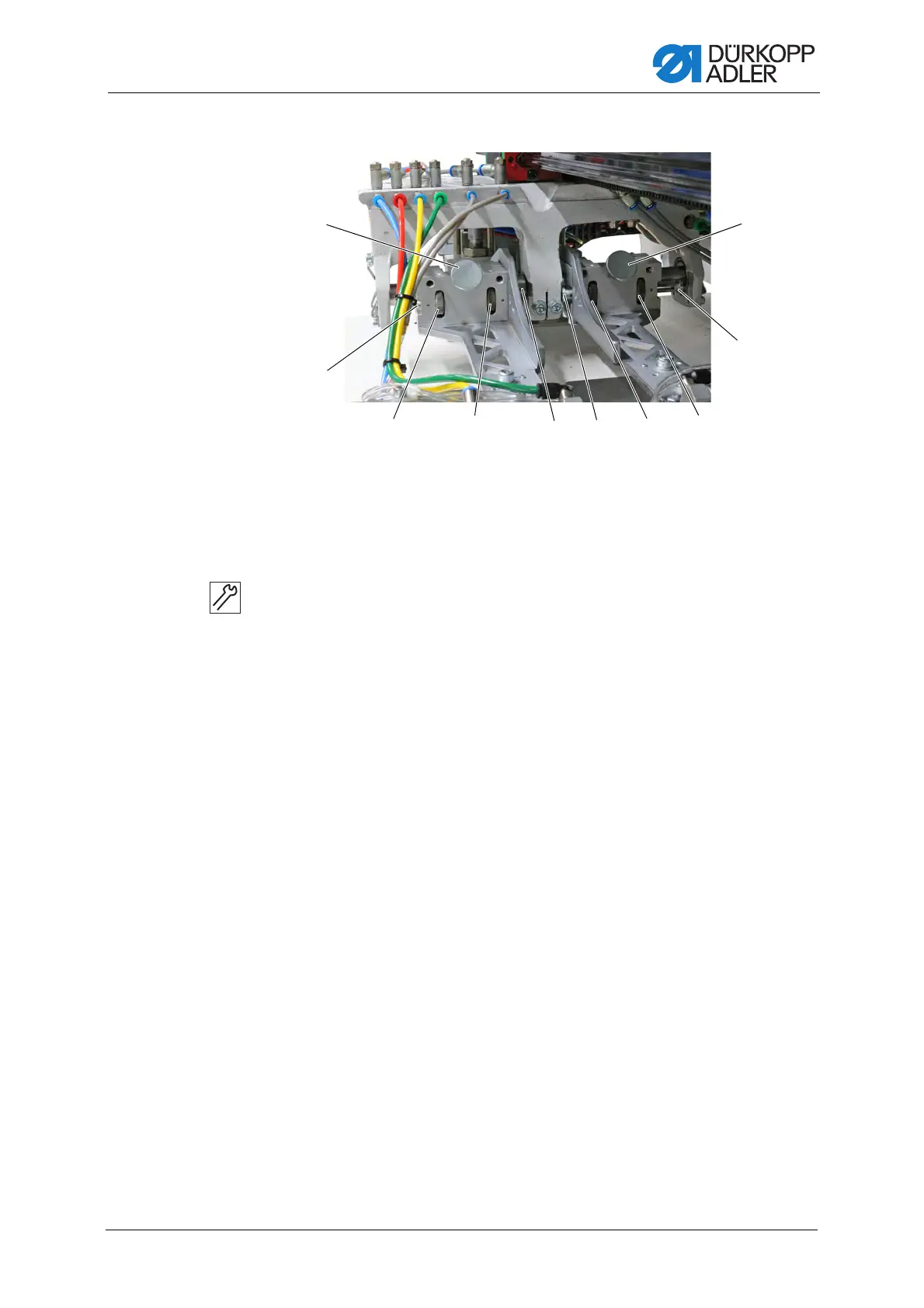

Fig. 130: Setting the distance of the transport clamps to the folder sole (2)

6. Loosen screws (3) and (12).

7. Double pipe: Move the transport clamps and set stop screws (7)

and (8) to 1 mm using knurled screws (6) and (9).

8. Single pipe: Move the transport clamps and set stop screws (4)

and (11) to 1 mm using knurled screws (5) and (10).

9. Tighten screws (3) and (12).

(3) - Screw

(4) - Stop screw

(5) - Knurled screw (single pipe left)

(6) - Knurled screw (double pipe left)

(7) - Stop screw

(8) - Stop screw

(9) - Knurled screw (double pipe right)

(10) - Knurled screw (single pipe right)

(11) - Stop screw

(12) - Screw

③

④

⑧⑤⑥⑦⑨⑩

⑪

⑫
