Stacker
244 Service Instructions 755 A/756 A - 00.0 - 02/2019

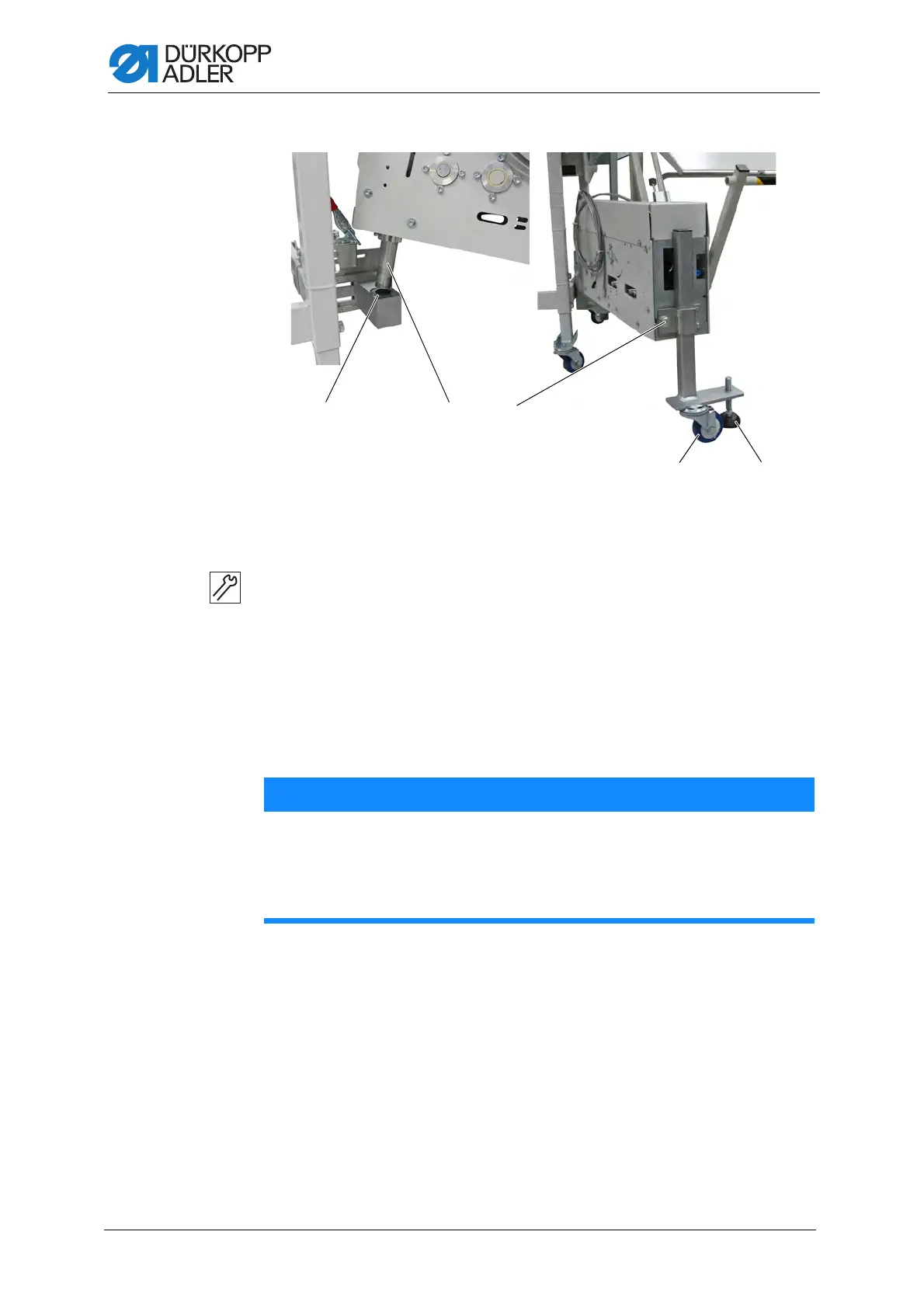

Fig. 238: Assembling the throw-over stacker (2)
3. Hook the pin (4) into the hole (3).
4. Loosen the screw (5).
 The roller (6) lowers down to the floor.
5. Swivel up the base (7) so that the throw-over stacker rests on
the roller (6).
6. Tighten the screw (5) while slightly lifting the throw-over stacker.
 The upper edge of the throw-over stacker is parallel to the floor.
The suspension of the throw-over stacker is relieved.
(3) - Hole
(4) - Pin
(5) - Screw
(6) - Roll
(7) - Base
NOTICE
Property damage may occur!
Possible damage to the pedal.
Pull the pedal out of the throw-over stacker BEFORE swinging out
the stacker brackets.
