Stacker
Service Instructions 755 A/756 A - 00.0 - 02/2019 249
4. Shift the position of the throw-over stacker in the slotted hole (1) to set
it parallel to the stand.
 The stacker brackets (4) and (5) are positioned parallel to the stand.
The stacker brackets (4) and (5) are positioned below the tabletop (3).
5. Tighten the screws (7).
Setting the height of the throw-over stacker

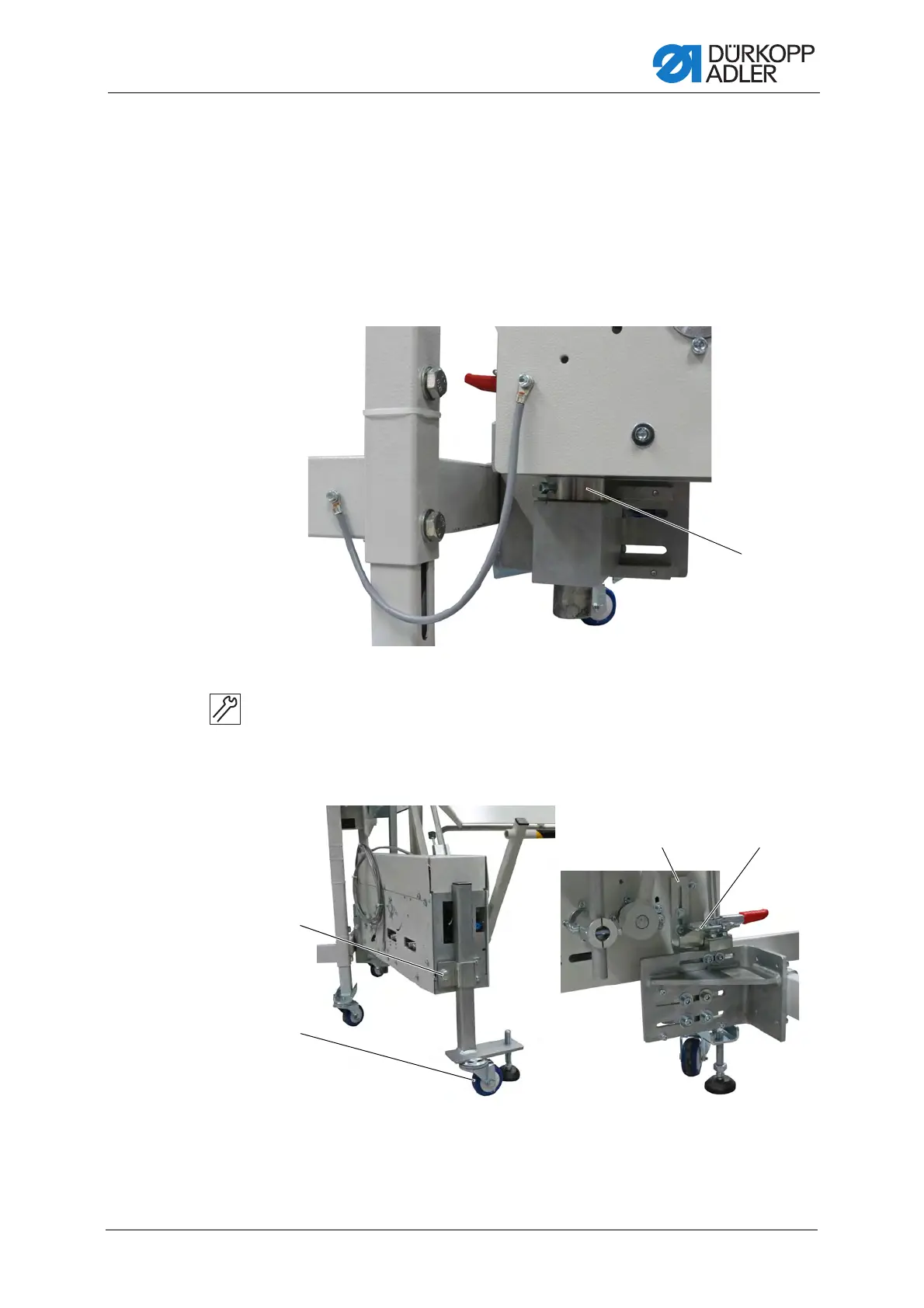

Fig. 243: Aligning the throw-over stacker (2)
To set the height of the throw-over stacker:
1. Raise the throw-over stacker by the desired distance.
2. Slide the adjusting ring (8) up to the throw-over stacker and tighten it.
Fig. 244: Aligning the throw-over stacker (3)
(8) - Adjusting ring
(9) - Screw
(10) - Roll
(11) - Clamping bracket
(12) - Locking mechanism
