Setting the retention bracket

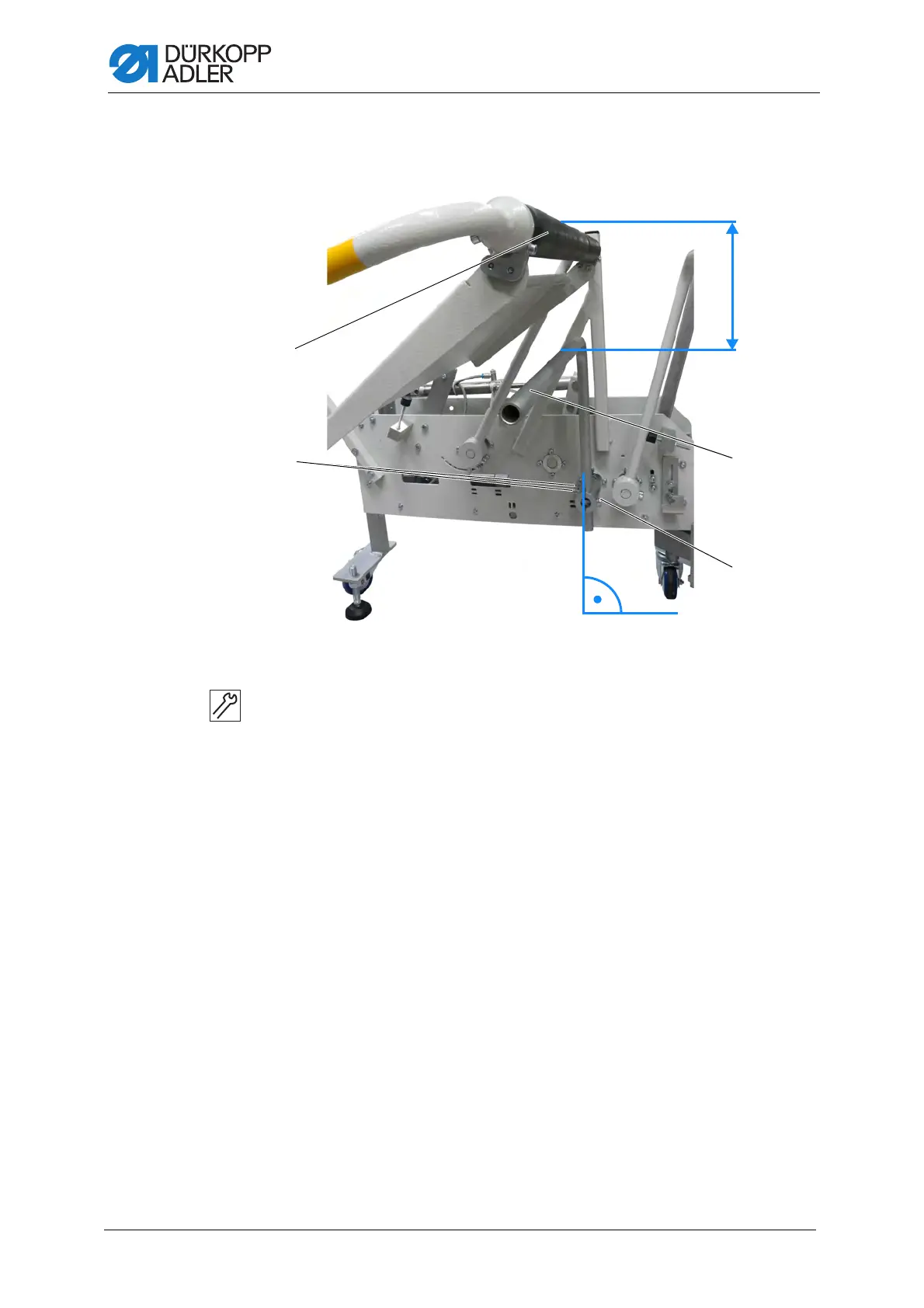

Fig. 251: Setting the stacker brackets (3)
To set the retention bracket:
1. Loosen the screws (10).
2. Set the retention bracket (12) at a right angle relative to the floor.
3. Tighten the screws (10).
4. Loosen the screw (11).
5. Set the height of the retention bracket.
 The distance between the upper edge of the stacking bracket (9)
and the upper edge of the retention bracket (12) is 190 mm.
6. Tighten the screw (11).
(9) - Stacking bracket
(10) - Screws
(11) - Screw
(12) - Retention bracket
⑪
⑫
⑨
⑩
190 mm
