Stacker

Service Instructions 755 A/756 A - 00.0 - 02/2019 259

Replacing pneumatic cylinder 2

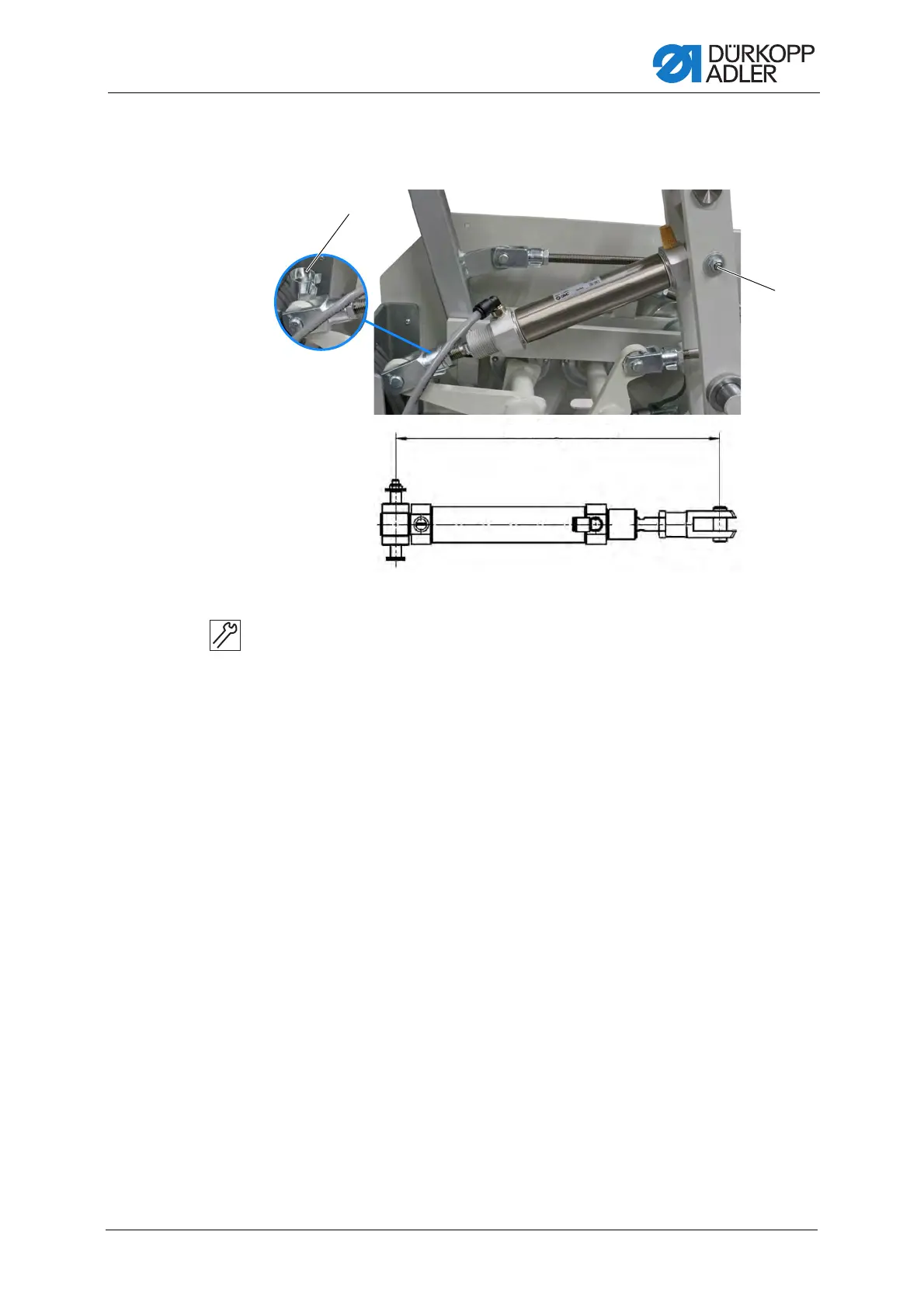

Fig. 255: Replacing pneumatic cylinder 2

To replace pneumatic cylinder 2:

1. Loosen the spring clip (1).

2. Loosen the screw (2) and disassemble the axle.

3. Disassemble the old pneumatic cylinder.

4. Set the new pneumatic cylinder to a dimension of 240 mm.

5. Assemble the new pneumatic cylinder.

Make sure to insert the sockets again.

6. Connect the pneumatic lines.

(1) - Spring clip (2) - Screw

②

①

240 (retracted)
