Disassembling and assembling the machine head
Service Instructions 755 A/756 A - 00.0 - 02/2019 27
To assemble the machine head:
1. Use a suitable tool to carefully insert the machine head into the
tabletop cutout.
2. Tighten the machine head using the screws (2).
3. Restore the gas shock absorber connection (1).

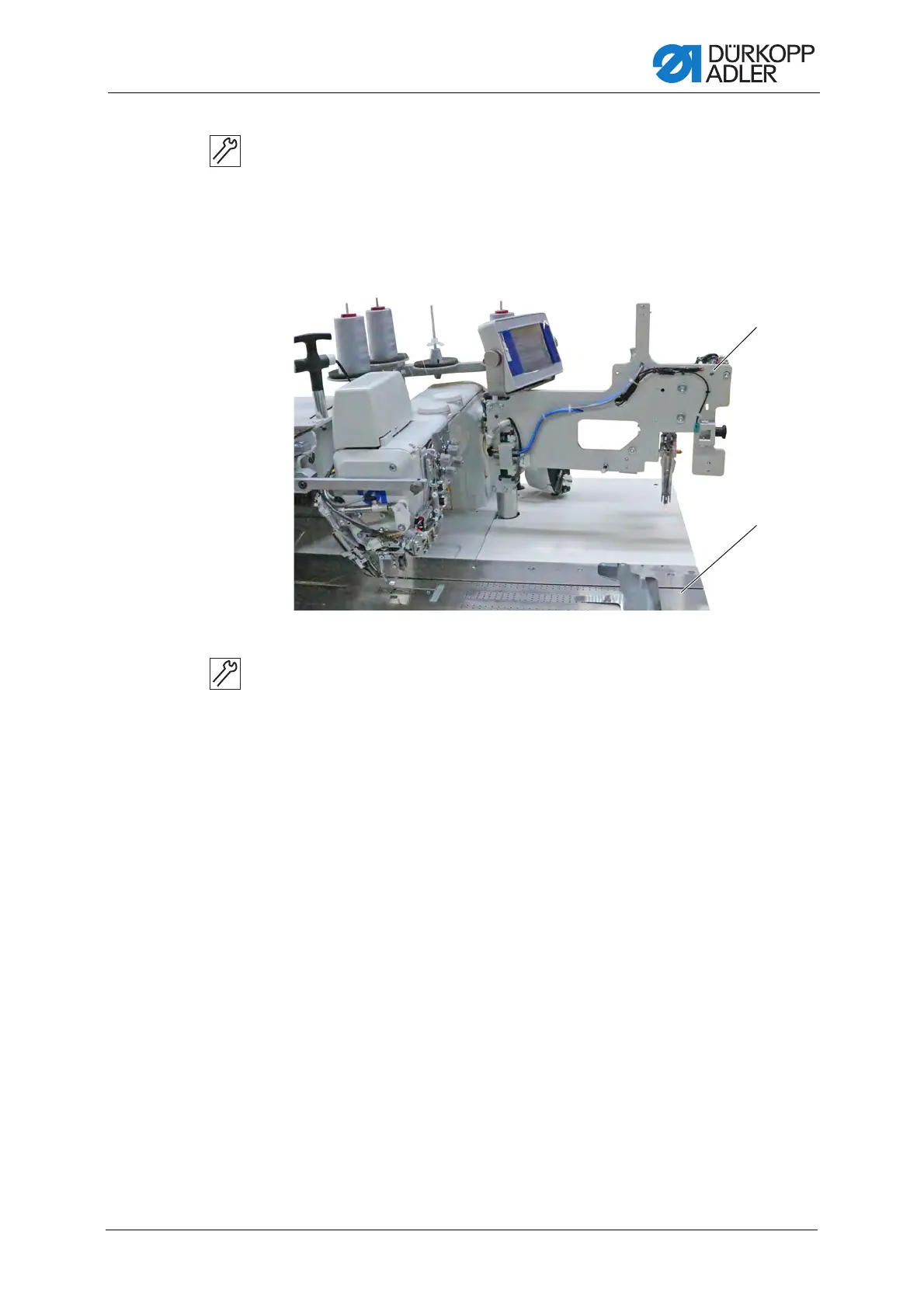

Fig. 14: Assembling machine head (2)
4. Establish the electrical and pneumatic connection to the machine head.
5. Swivel down the folding station (3) and lock it into place.
6. Insert the fabric sliding plate (4).
(3) - Folding station (4) - Fabric sliding plate
