Programming

356 Service Instructions 755 A/756 A - 00.0 - 02/2019

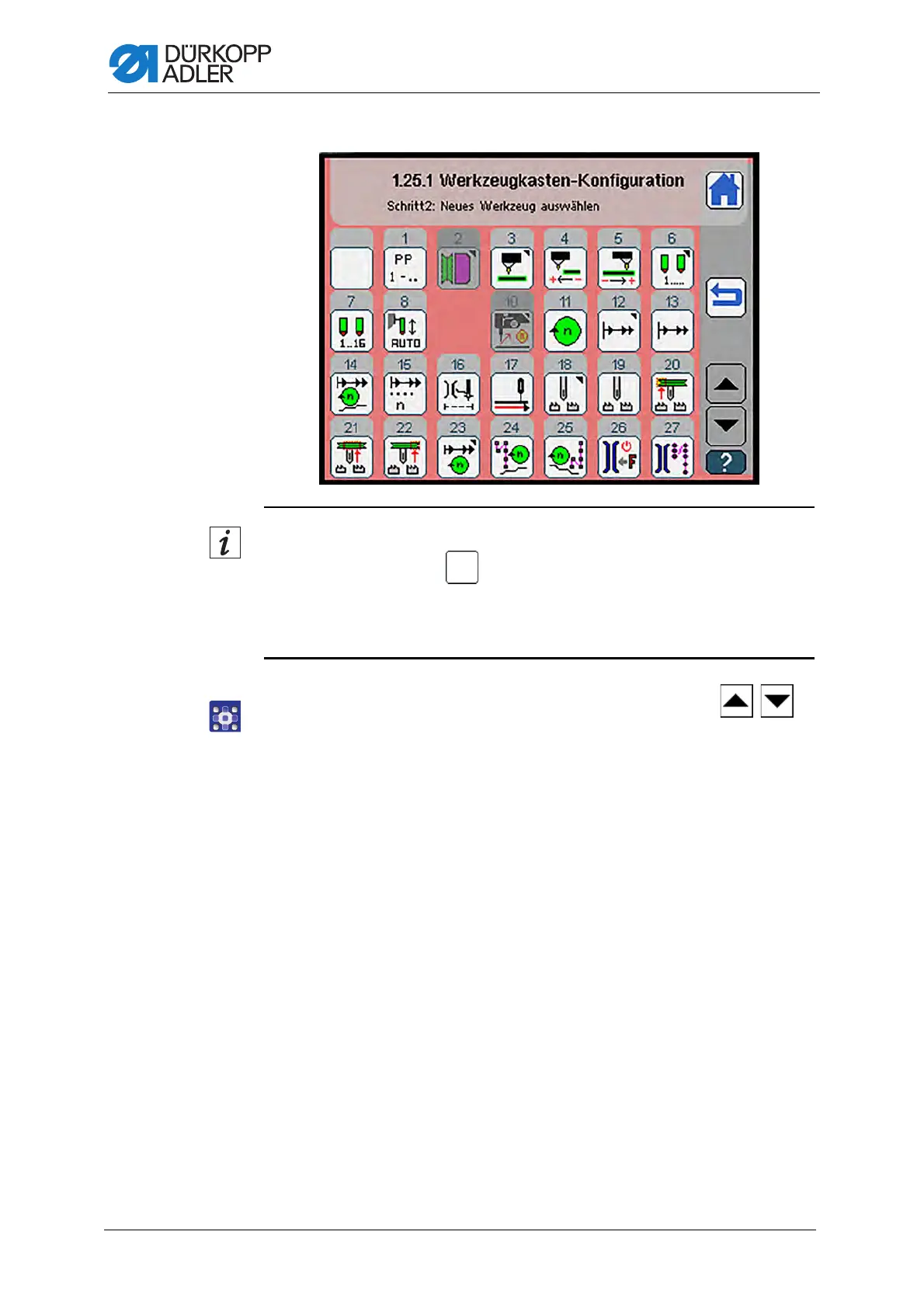

Fig. 329: Toolbox configuration (2)

Information

You can use the button to remove a previously selected tool from

the toolbox again.

Tools already in use are grayed out.

2. To navigate up and down the list, use the arrow buttons .

3. Press the selected tool to select it.

 The display returns to Machine config.

Default Chapter3
