Programming

376 Service Instructions 755 A/756 A - 00.0 - 02/2019

Set and test sewing motor

 The display switches to Test sewing motor.

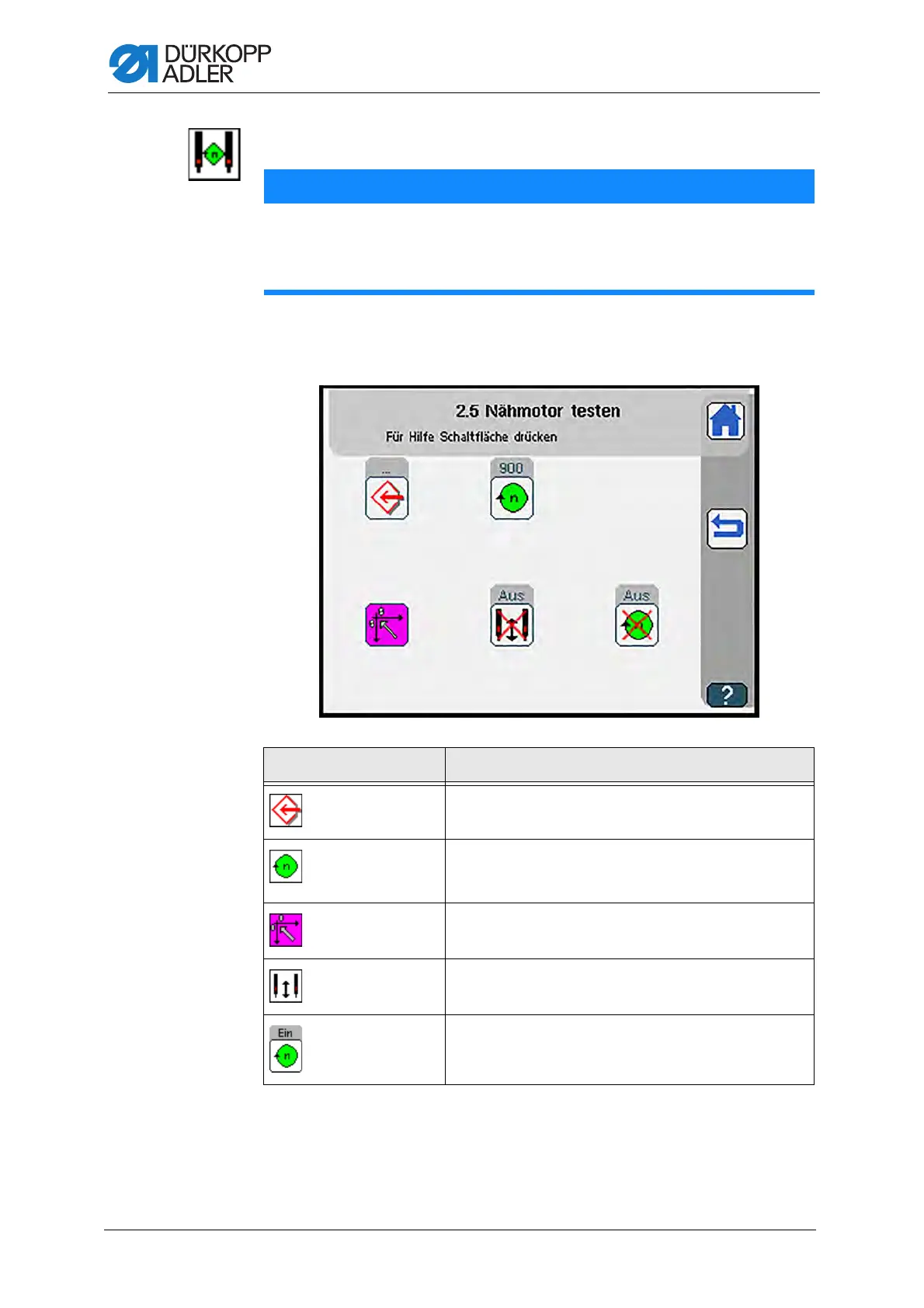

Fig. 343: Testing the sewing motor

NOTICE

Property damage may occur!

Jamming of the machine.

Unthread the needle thread before starting the sewing motor.

Symbols Meaning

Adjust sewing motor  p. 377

Adjust sewing motor speed

• 100 RPM - 3200 RPM (class 755 A)

• 100 RPM - 3000 RPM (class 756 A)

Reference

Switch split needle bar On/Off

Sewing motor On/Off

Default Chapter3
