Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 387

Touch test

 The display switches to Touch test.

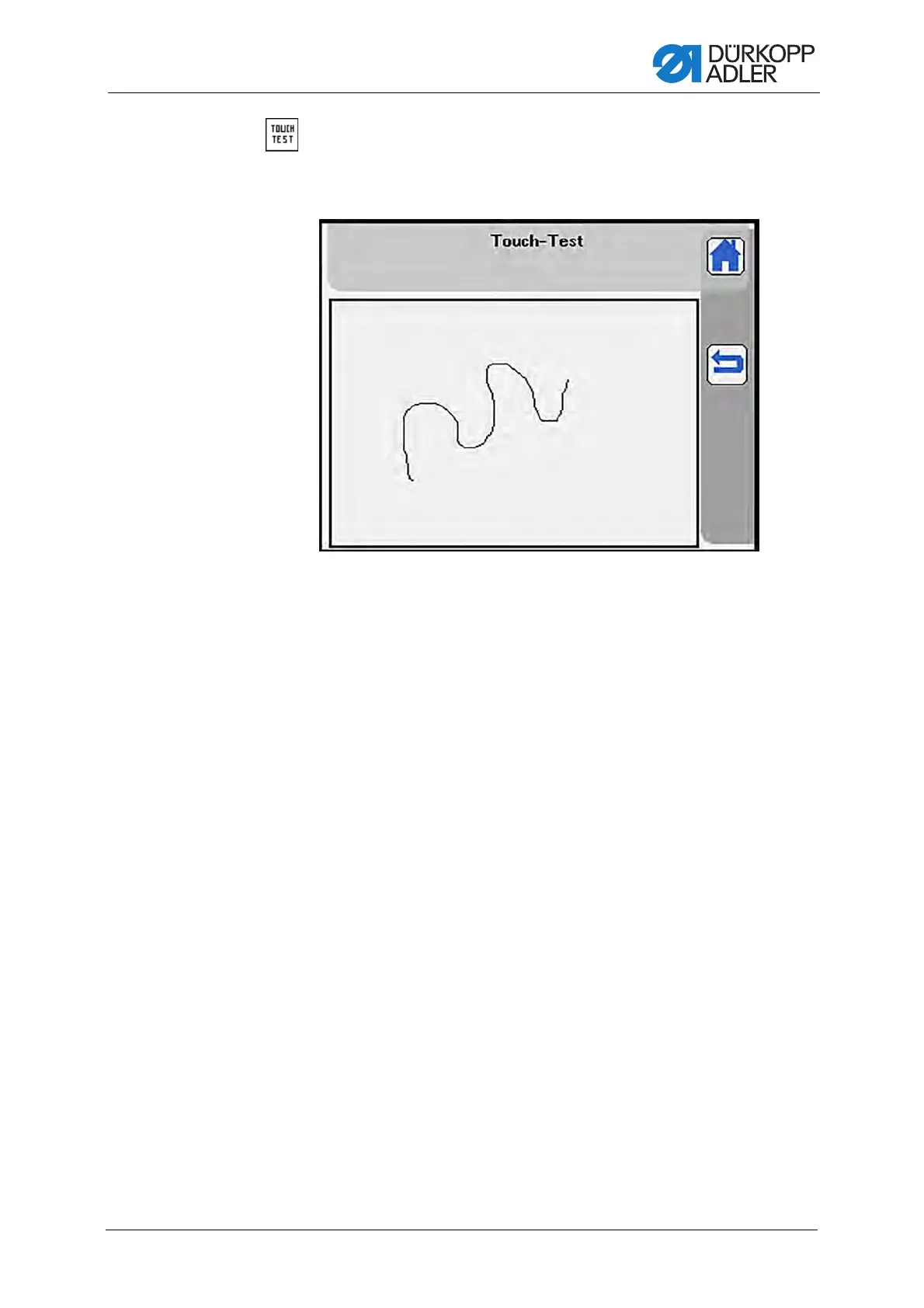

Fig. 353: Touch test

The Touch test menu item allows you to draw on the touch screen.
