Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 433

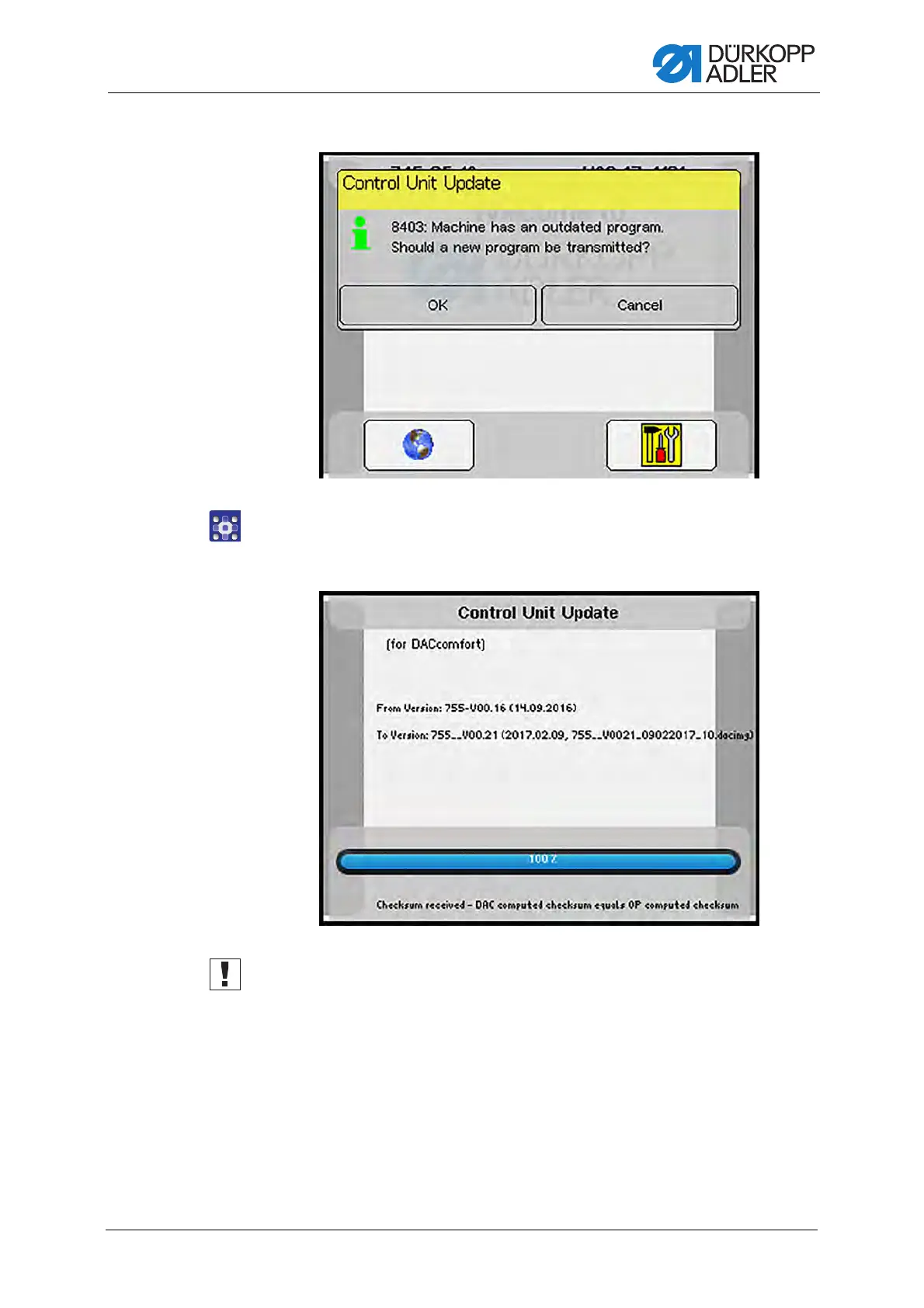

Fig. 397: Update the machine software (4)

8. Confirm with OK.

 The update is carried out.

Fig. 398: Update the machine software (5)

Important

Do not switch off the machine while the update is in progress!

 The display shows notice 8408: Waiting for Reset by machine.
