Needle bar
46 Service Instructions 755 A/756 A - 00.0 - 02/2019

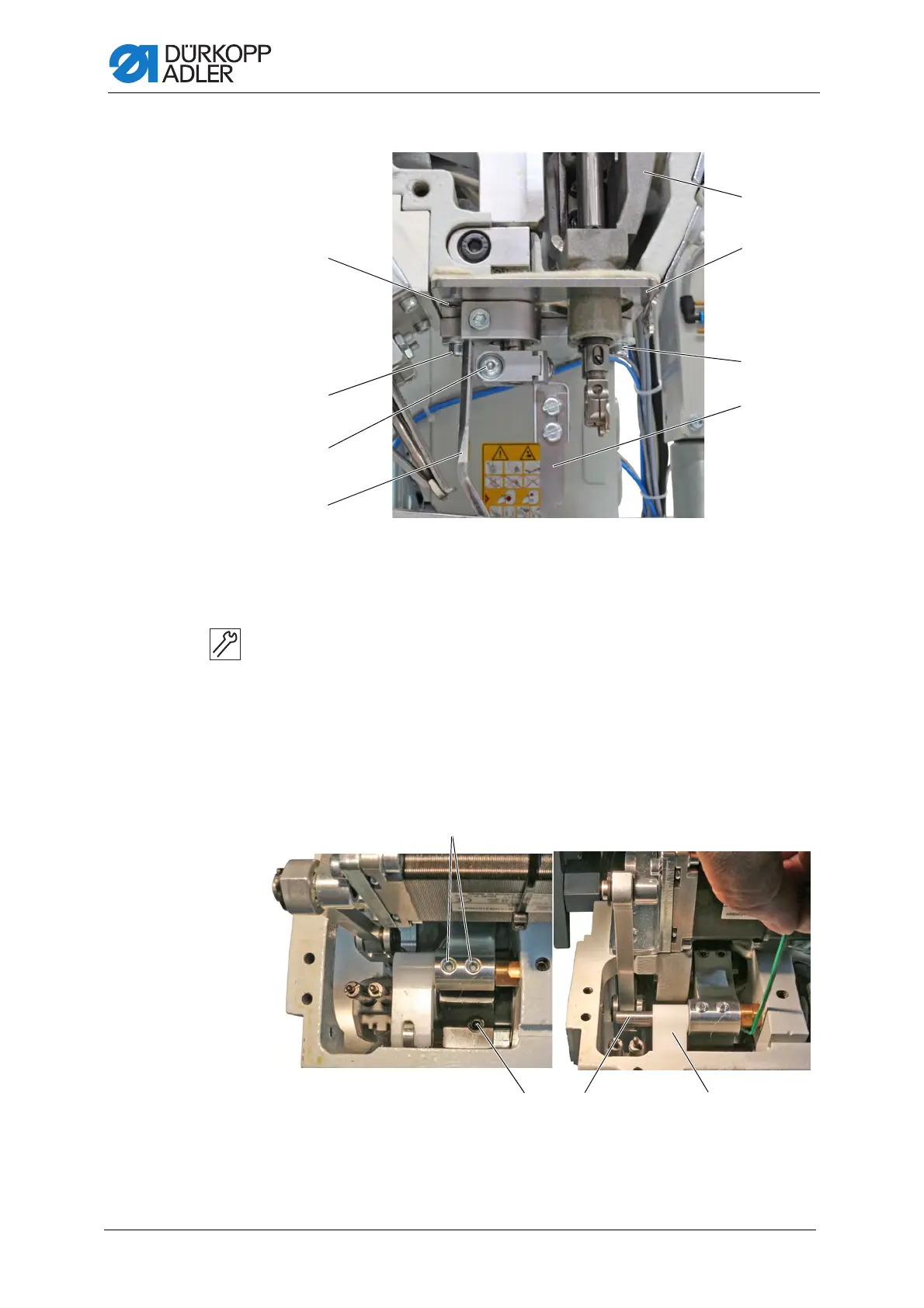

Fig. 38: Disassembling the needle bar linkage (2)
8. Loosen the screw (7).
9. Remove the middle knife (9).
10. Loosen the screws (6).
11. Remove the middle knife guard (7).
12. Loosen the screw (5).
13. Remove the plate (10) from the felt.
Fig. 39: Disassembling the needle bar linkage (3)
(5) - Screw
(6) - Screws
(7) - Screw
(8) - Middle knife guard
(9) - Middle knife
(10) - Plate
(11) - Needle bar linkage
(12) - Screws
(13) - Screw
(14) - Bolt
(15) - Lever
