Integrated motor

98 Service Instructions 867-M PREMIUM - 02.0 - 02/2017

To place the cover:

1. Position the cover (2) at the side.

2. Tighten the screws (1).

19.3.5 Locking the machine in place

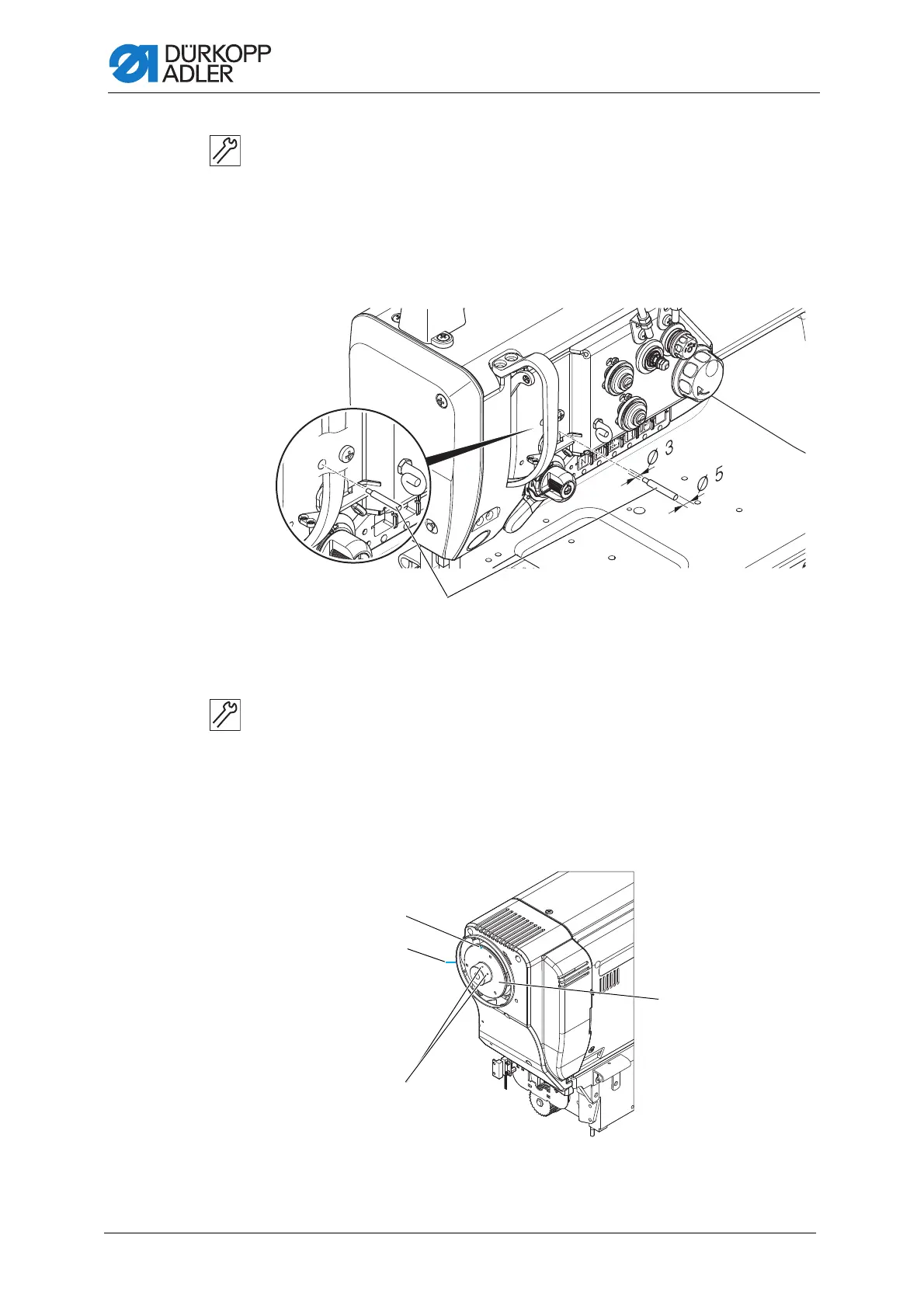

Fig. 86: Locking the machine in place

To lock the machine in place:

1. Lock the machine in place using the locking peg (1) (Ø 3 mm).

 The needle is in the top dead center position.

19.3.6 Assembling the handwheel flange

Fig. 87: Assembling the handwheel flange

(1) - Locking peg

①

(1) - Handwheel flange marking

(2) - Cover marking

(3) - Threaded pins

(4) - Handwheel flange

①

③

④

②
