Setting the feed dog
Service Instructions 867-M PREMIUM - 02.0 - 02/2017 41

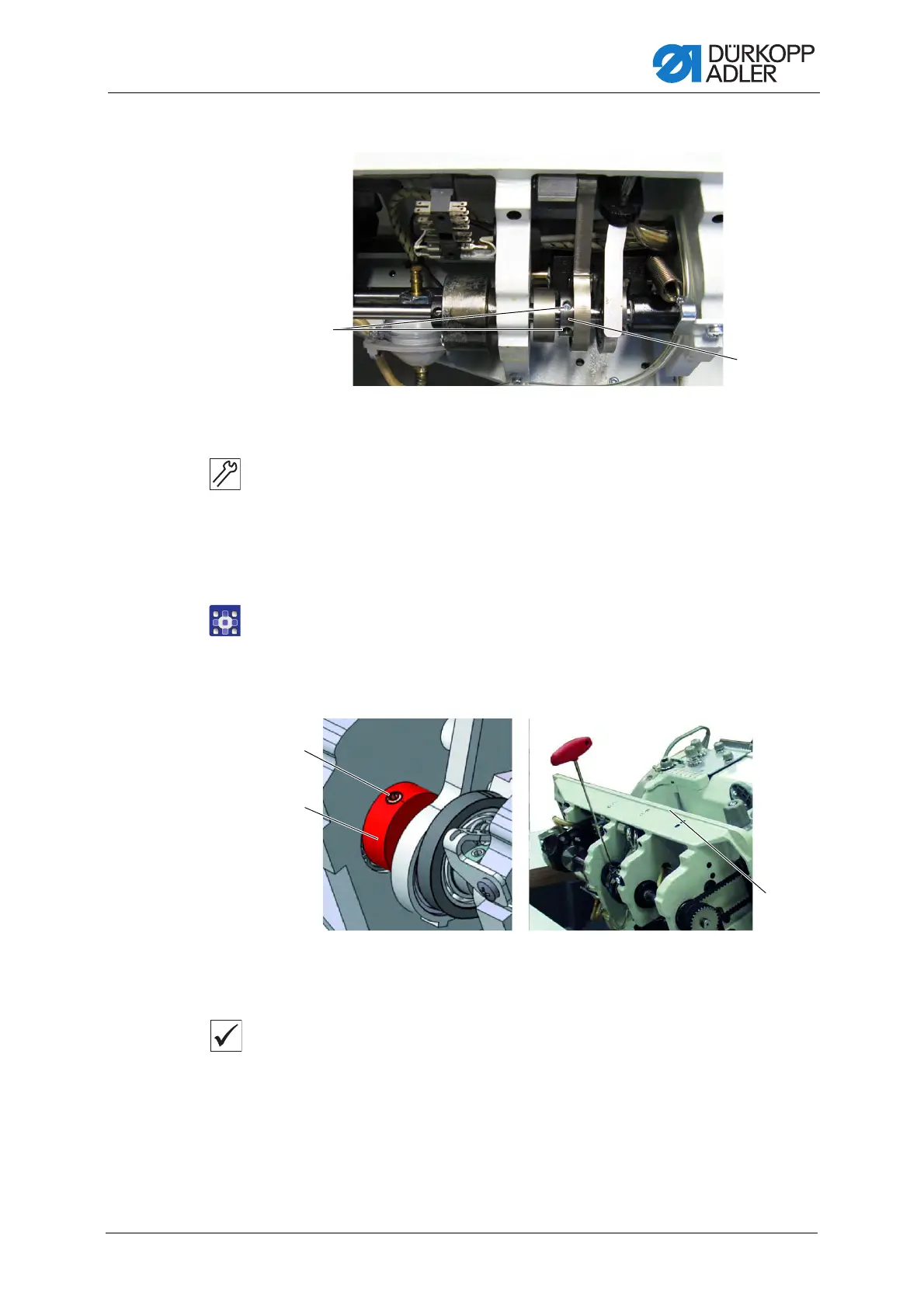

Fig. 29: Setting the feed dog stroke movement
5. Loosen the threaded pins (1).
6. Move the handwheel into the 90° position.
7. Turn the stroke eccentric (2) such that the upper edge of the feed dog
is in the upward movement and at the same height as the upper edge
of the throat plates.
8. Tighten the threaded pins (1).
9. Finish the service routine.
8.3.4 Setting the compensating weight
Fig. 30: Setting the compensating weight
Proper setting
The handwheel is at position 210°:
The threaded pin for the compensating weight is parallel to the base
plate.
(1) - Threaded pins (2) - Stroke eccentric
(1) - Threaded pin
(2) - Compensating weight
(3) - Base plate
