Sewing feet
Service Instructions 867-M PREMIUM - 02.0 - 02/2017 59
3. Loosen the threaded pins (5).
4. Turn the stroke eccentric (4) such that the feeding foot touches down
on the feed dog when the handwheel is in the 95° position.
Important
Ensure not to move the stroke eccentric (4) laterally on the axle.
5. Tighten the threaded pins (5).
6. Finish the service routine.
12.4 Setting the sewing foot pressure and sewing foot lift

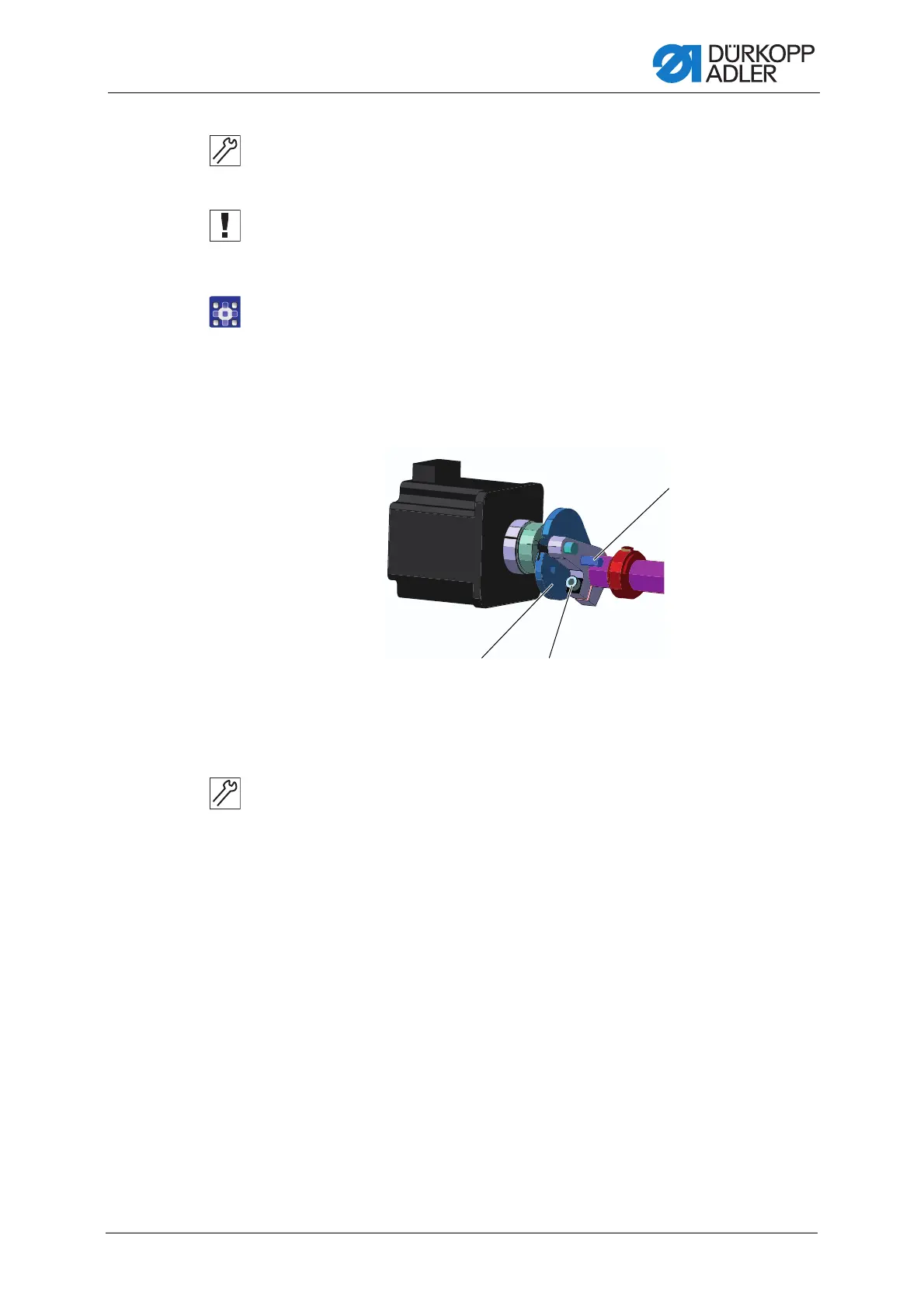

Fig. 48: Setting the sewing foot pressure and sewing foot lift
To set the sewing foot pressure and the sewing foot lift:
1. Switch off the machine.
2. Place a 5 mm distance piece (e.g. locking pin 0367 105950) between
the presser foot and throat plate.
3. Loosen the screw (2).
4. Turn the control cam (1) to the position indicated above.
5. Peg it in place with the cylinder pin (3).
6. Tighten the screw (2).
Sewing foot pressure
The sewing foot pressure is set via the program parameters.
The correct sewing foot pressure depends on the sewing material:
Lower pressure for soft materials, e.g. fabric
Higher pressure for durable materials, e.g. leather or laminate
(1) - Control cam
(2) - Screw
(3) - Cylinder pin 5m 6x24
(part number 9301 102221)
