19.2.4 Disassembling the stator

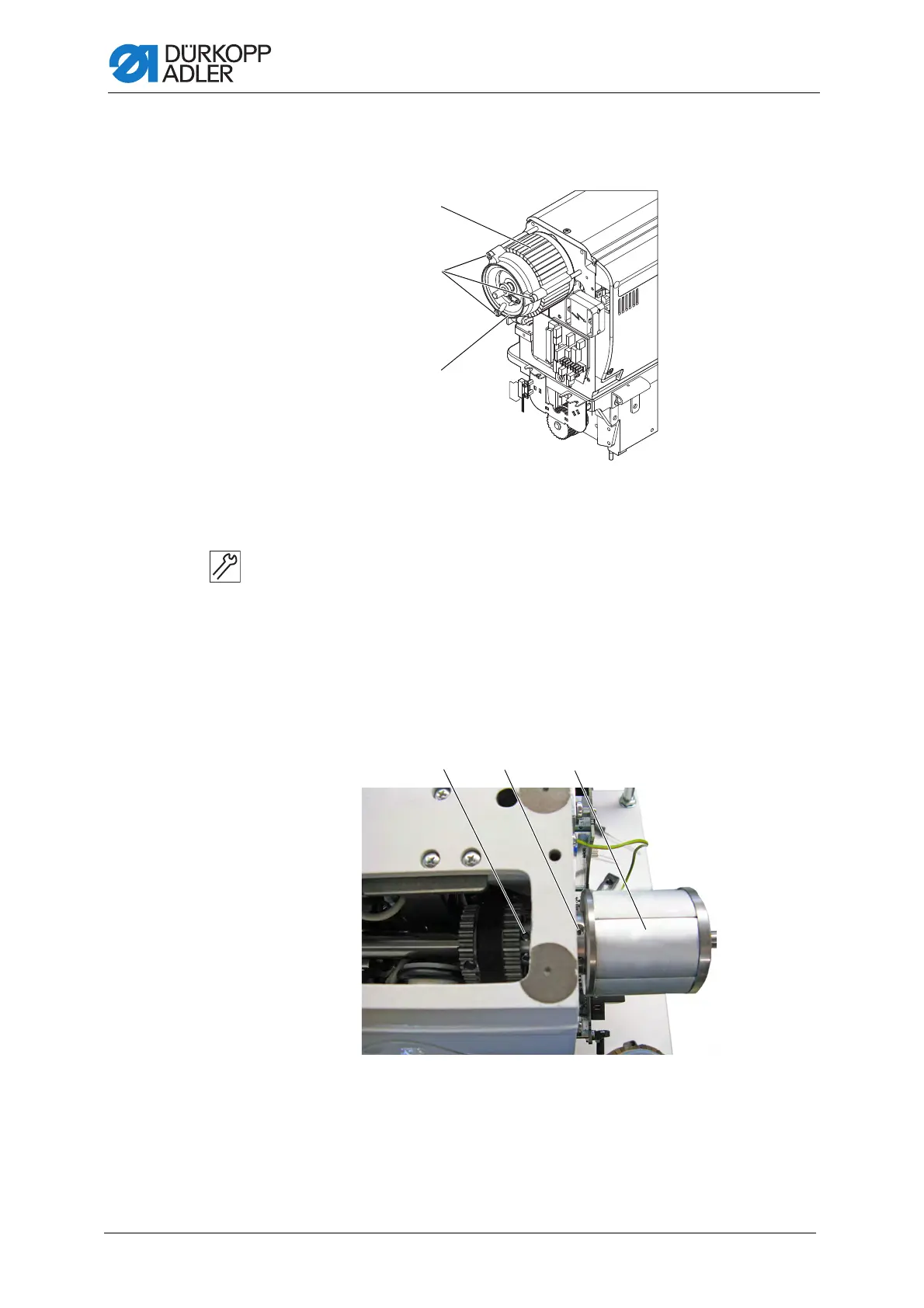

Fig. 80: Disassembling the stator
To disassemble the stator:
1. Loosen the screws (2).
2. Remove the cover plate (3).
3. Remove the stator with ring (1).
19.2.5 Disassembling the rotor
Fig. 81: Disassembling the rotor
(1) - Stator with ring
(2) - Screws
(3) - Cover plate
(1) - Threaded pins
(2) - Threaded pins
(3) - Rotor with deep groove ball bearing
