Integrated motor

Service Instructions 867-M PREMIUM - 02.0 - 02/2017 97

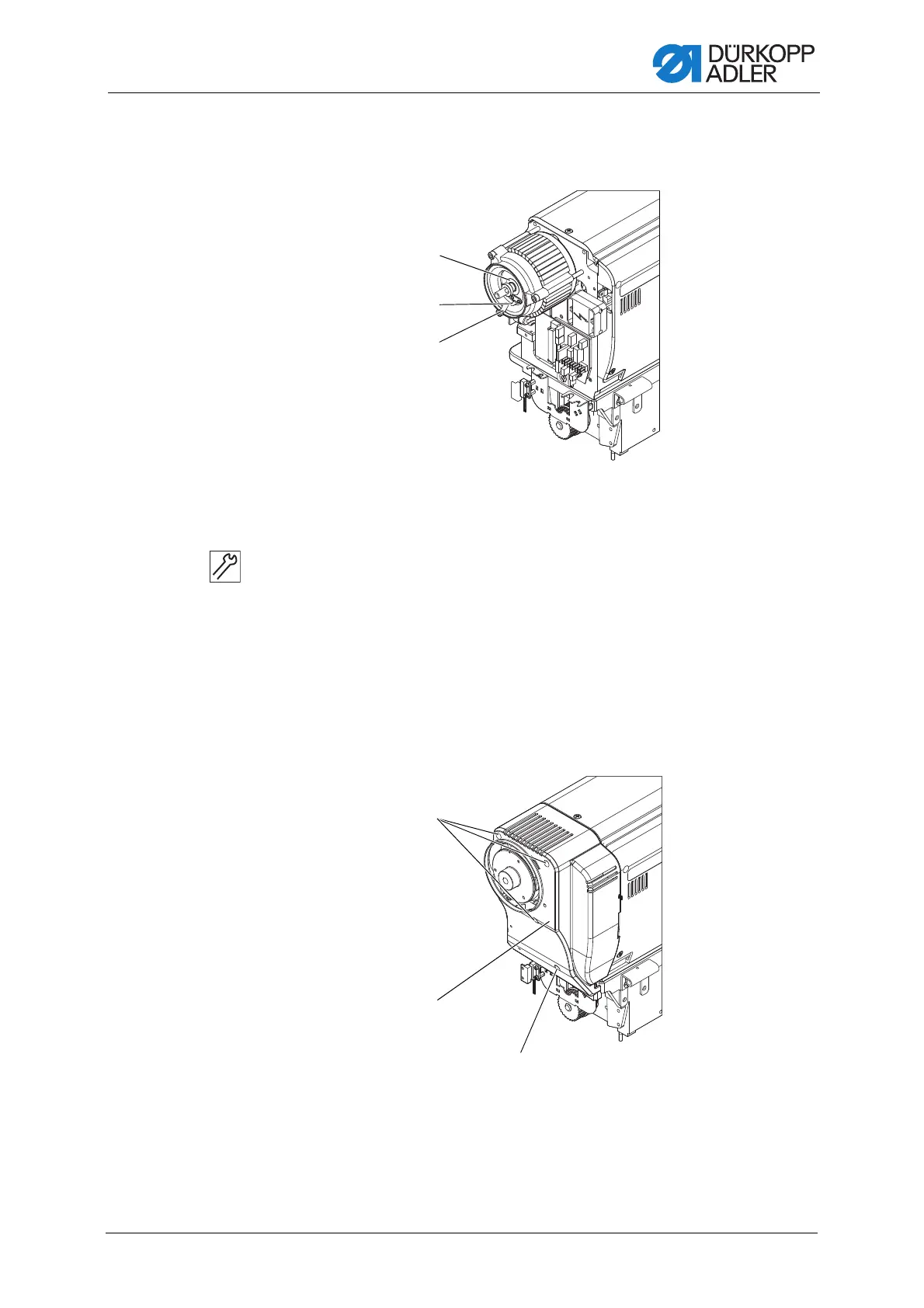

19.3.3 Assembling the encoder

Fig. 84: Assembling the encoder

To fit the encoder:

1. Push the encoder (2) and encoder disk (1) onto the shaft.

2. Align the encoder disk (1) so that it runs in the middle of the encoder (2).

3. Screw the encoder disk (1) and encoder (2) firmly in place.

4. Tighten the retaining plate (3).

19.3.4 Assembling the cover

Fig. 85: Assembling the cover

(1) - Encoder disk

(2) - Encoder

(3) - Retaining plate

①

②

③

(1) - Screws (2) - Cover

①

②
