Positioning the arm shaft
28 Service Instructions 867-M PREMIUM - 02.0 - 02/2017
5 Positioning the arm shaft

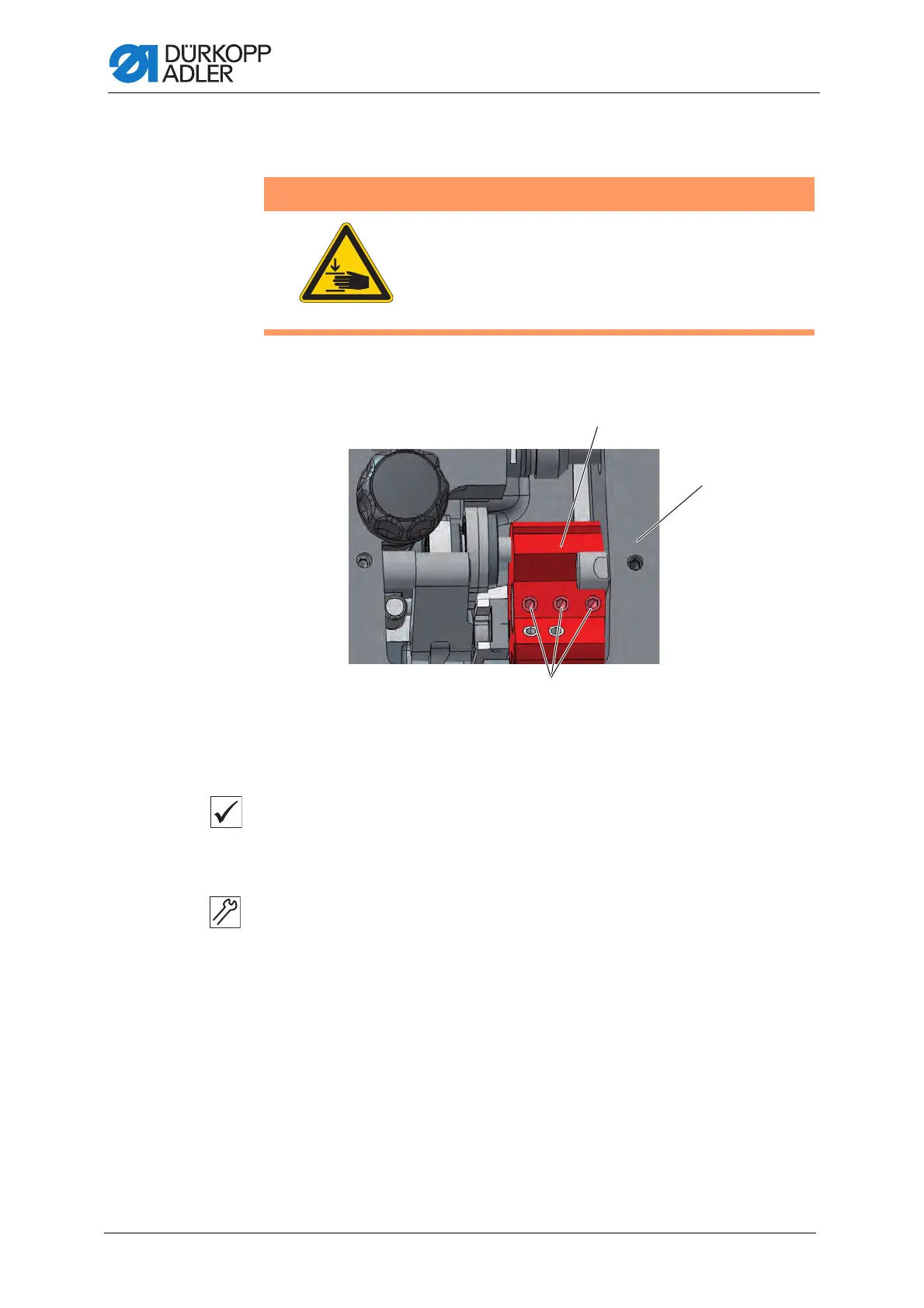

Fig. 17: Positioning the arm shaft
Proper setting
The 3 threaded pins (1) on the arm shaft crank (3) are seated completely
on the flat. The arm shaft crank (3) is flush with the machine casting (2).
To position the arm shaft:
1. Remove the arm cover (
 p. 17).
2. Loosen the threaded pins (1) on the arm shaft crank (3).
3. Turn the arm shaft crank (3) such that the threaded pins (1) are seated
completely on the flat of the arm shaft.
4. Push the arm shaft (3) to the right as far as it will go and flush with the
machine casting.
5. Tighten the threaded pins (1) on the arm shaft crank (3).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you check and set
the position of the arm shaft crank.
(1) - Threaded pins
(2) - Machine casting
(3) - Arm shaft crank
③
①
②
