Removing the arm cover
To remove the arm cover:
1. Loosen the screws (2).
2. Remove the arm cover (1).
Placing the arm cover
To place the arm cover:
1. Place the arm cover (1).
2. Tighten the screws (2).
3.4.3 Removing and placing the head cover

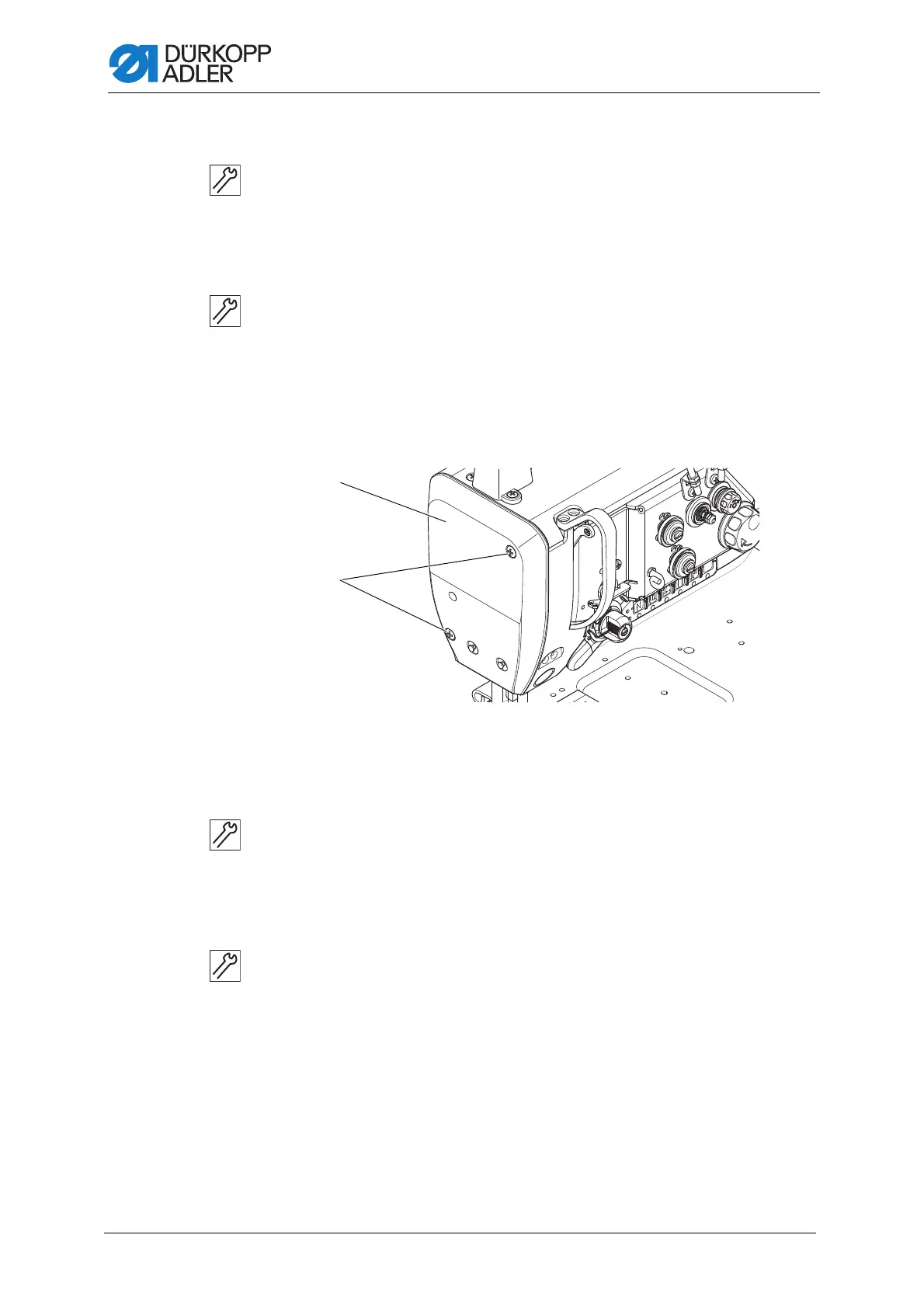

Fig. 7: Removing and placing the head cover
Removing the head cover
To remove the head cover:
1. Loosen the screws (2).
2. Remove the head cover (1).
Placing the head cover
To place the head cover:
1. Place the head cover (1).
2. Tighten the screws (2).
(1) - Head cover (2) - Screws
