Working basis
20 Service Instructions 867-M PREMIUM - 02.0 - 02/2017
3.4.5 Opening and closing the throat plate slide

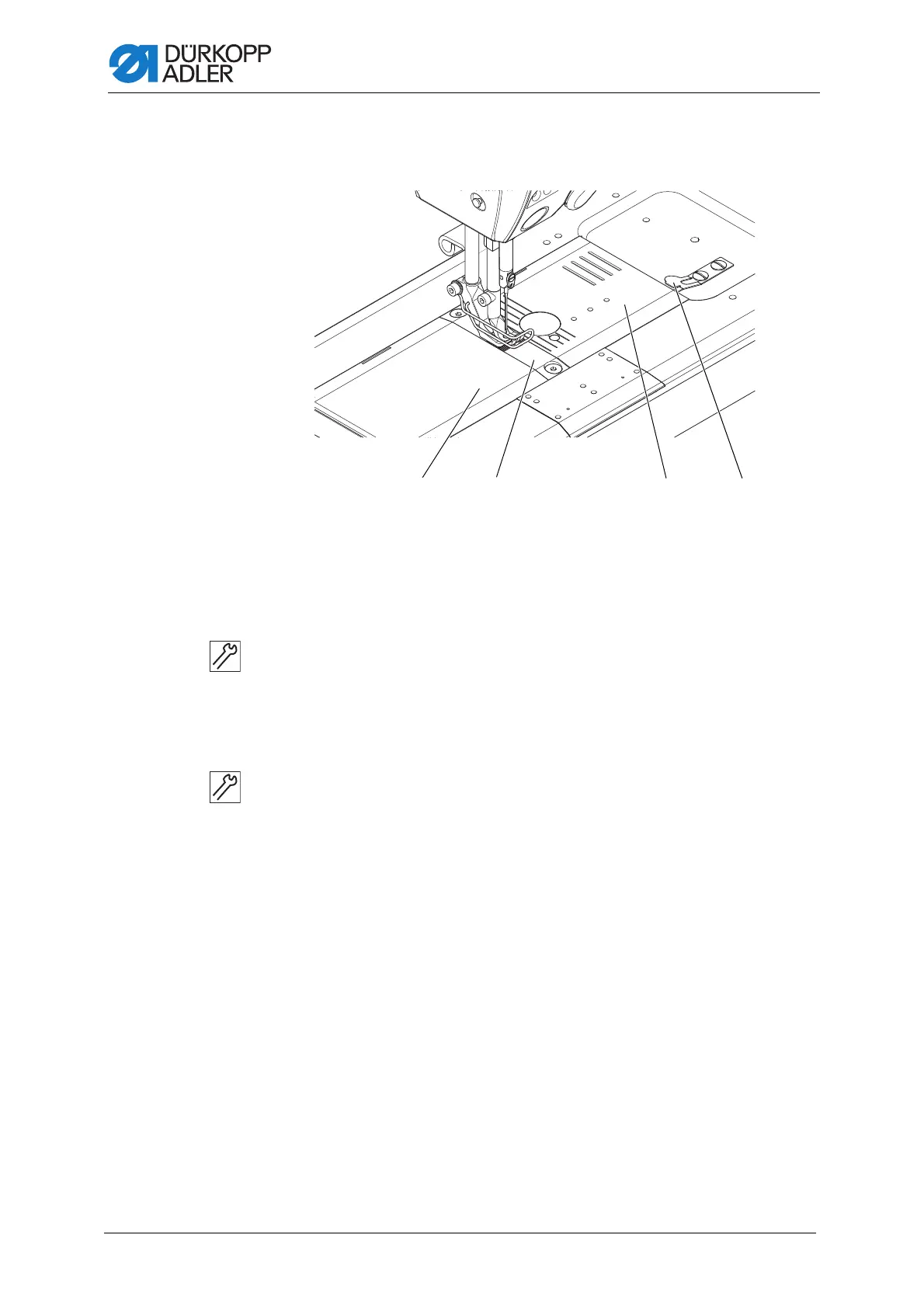

Fig. 9: Opening and closing the throat plate slide
Opening the throat plate slide
To open the throat plate slide:
1. Press the clamping spring (3) downwards.
2. Push the throat plate slide (1) apart.
Closing the throat plate slide
To close the throat plate slide:
1. Screw the throat plate slide (1) to the throat plate (2).
(1) - Throat plate slide
(2) - Throat plate
(3) - Clamping spring
