UPR700 Microprocessor-Based Pressure/Process Indicator 3
MODEL UPR700-0-0-3 QUICK START INSTRUCTIONS

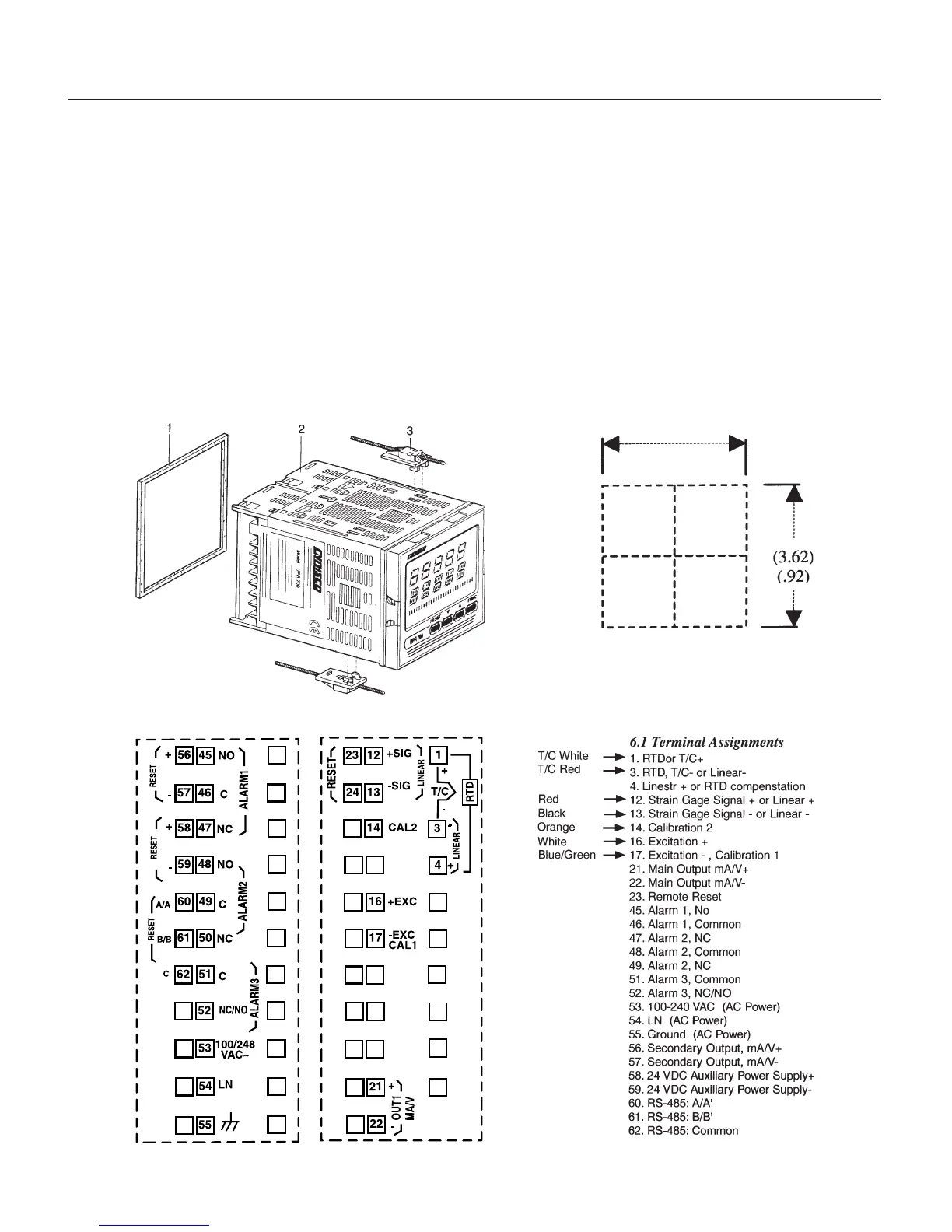

1. MOUNTING
• Prepare panel cutout to dimensions shown below.
• Remove instrument from case by spreading locking tabs.
•Grasp the bezel and slide the instrument out of its case.
• Slide the rubber gasket over the case.
• Slide the instrument case into the cutout.
• Attach the panel mounting hardware tightening the threaded rod for a secure fit.
• Slide the instrument back into the case until an audible click is heard as each tab engages.
