Guangzhou EC-PACK Packaging Equipment Co., Ltd.

EC-JET 1000Pro Continuous Inkjet Printer

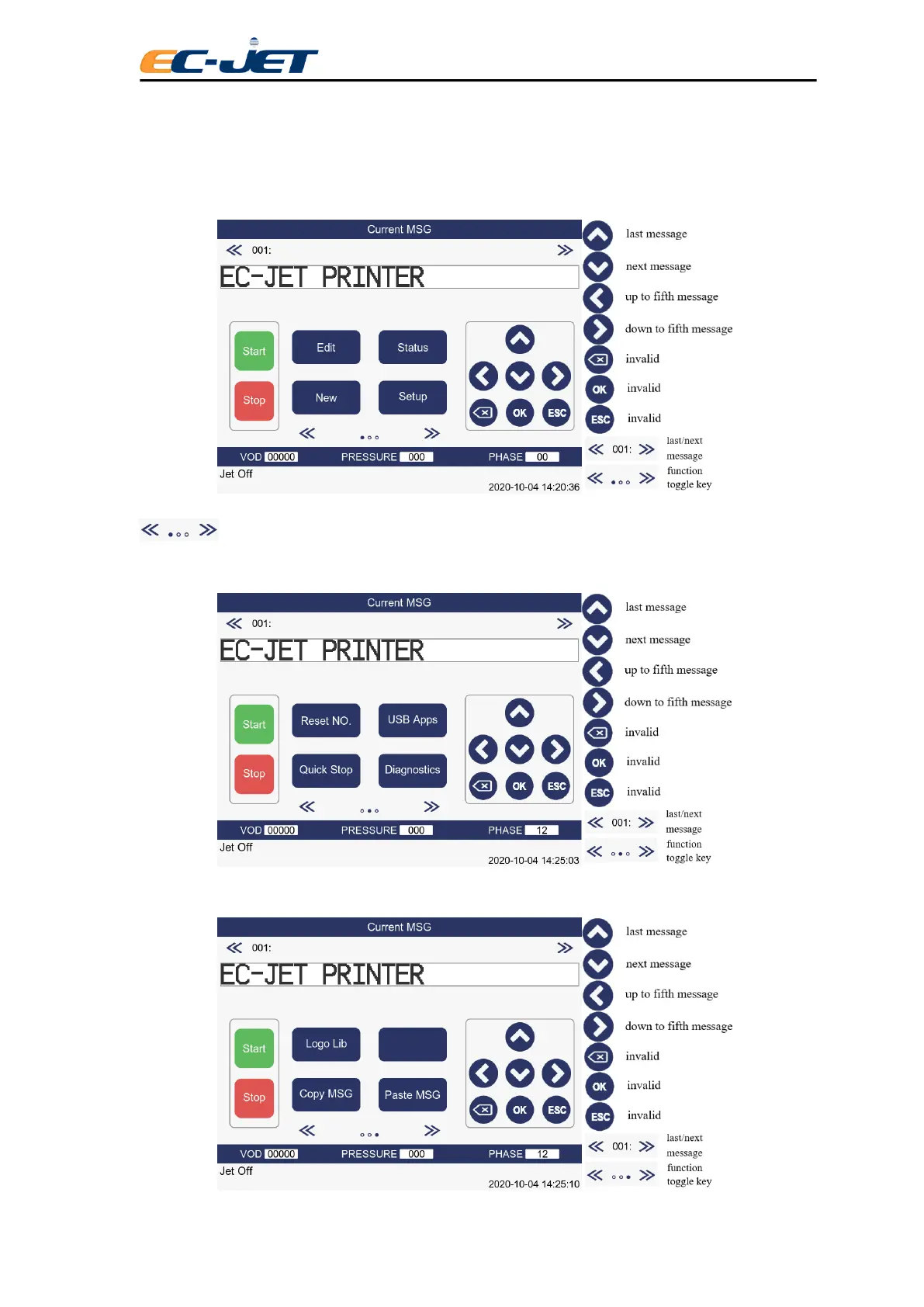

3.4.1 Display Brief Introduction

This button is to shift the functions and data shown in the OPERATION MENU. As below

pictures:

Main Page
