EC-JET 1000Pro Continuous Inkjet Printer

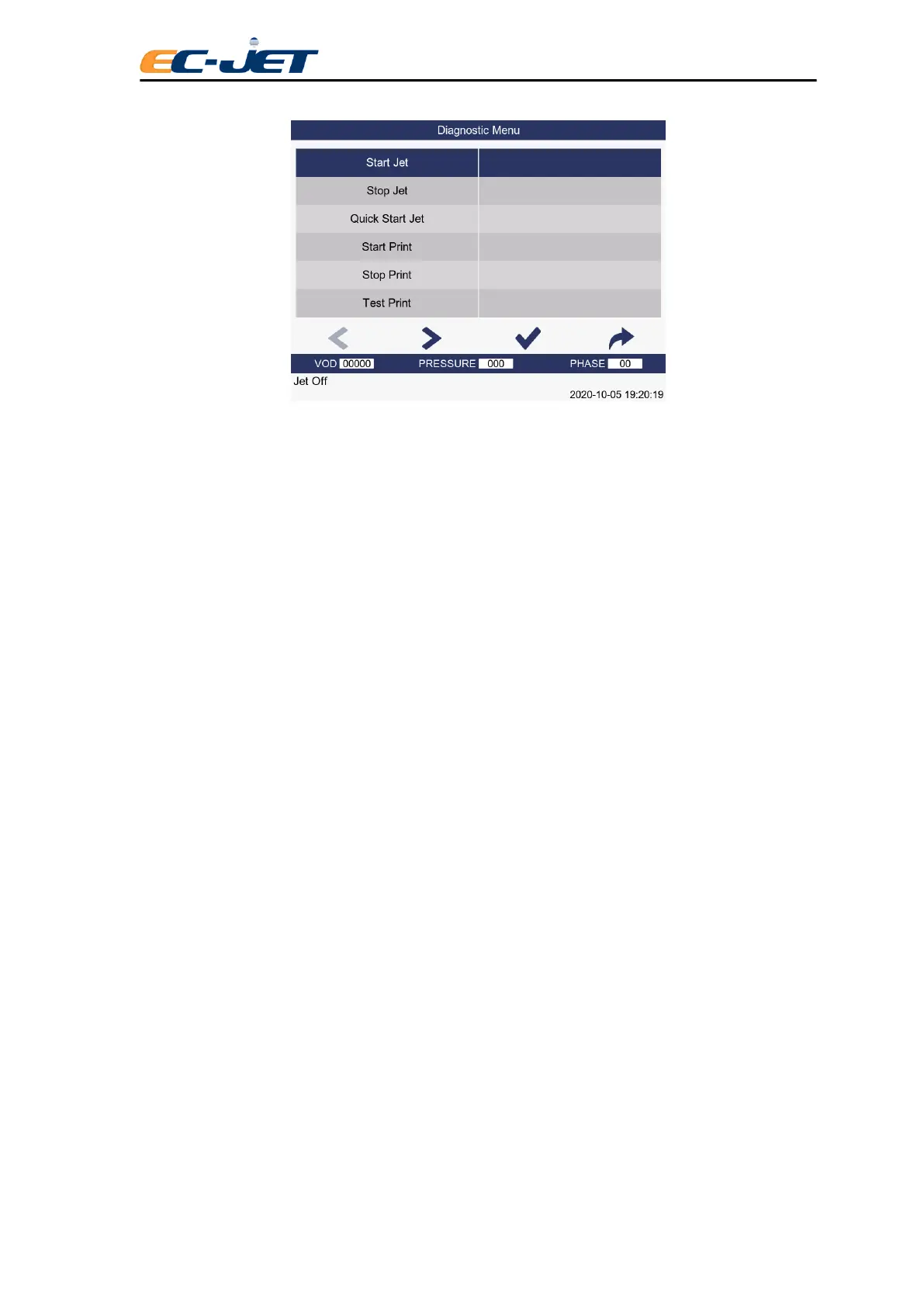

The menu option selected will be the one which was selected the last time the DIAGNOSTICS menu was

used.

The options available from the DIAGNOSTICS menu are described in another chapter of this manual

6.3.9 Solvent Add Time

This shows the total time that the printer has added solvent since the printer has been switched on.
