Version 2.02 15.05.2007
Operation of VS 3000
83
eckelmann.de
E 2007 - ECKELMANN AG | BERLINER STRASSE 161 | 65205 WIESBADEN | TELEFON +49(0)611 71 03-0 | FAX +49(0)611 71 03-133
Entering text
In fields that allow text entry, text can also be entered by the alphanumeric keypad. Repeatedly press the nu -
meric keys to generate letters. Press the ENTER key (↵) to confirm the entered value or text.

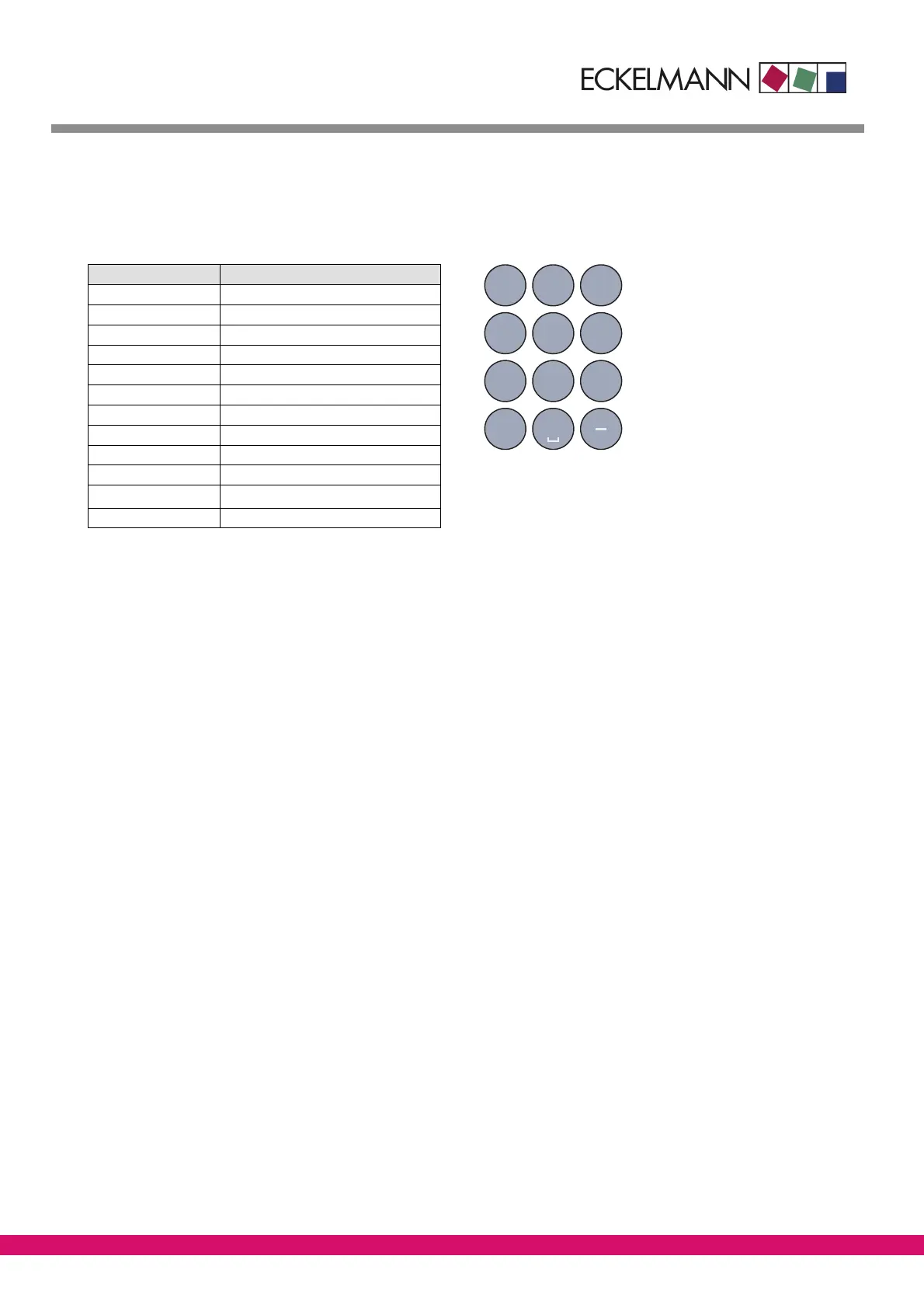

Key Letter/Character
0 äöüß0 Space
1 1
2 abc2
3 def3
4 ghi4
5 jkl5
6 mno6
7 pqrs7
8 tuv8
9 wxyz9
-
._-
, Insert space
Alphanumeric key assignments
Press the MODE key to shift between upper and lower case letters.
Deleting text entry
Simultaneously press the MODE and minus ( - ) keys to delete a complete line of text. Press the MODE and
decimal ( . ) keys to delete one character.
Cancelling an entry
Press the ESC key to cancel an entry at any time. The entry will not be applied.
Exiting menus and screens
Press the ESC key to exit the menu or screen you are in at any time. This returns you to the next higher menu.
All menus and screens are closed automatically if no key is pressed for 10 minutes. The display then jumps to
the Main Menu or to the Alarm menu if any fault report is currently active.
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ZNR. 51203 68 430 D0
