Connection of the instrument 14
Manual econ sens3 Version 3.0
5.2 Overview of connections
All connections of the econ sens3, with the exception of the connection for current measurement (3)
and the Ethernet interface (4), are designed as pluggable screw terminals.

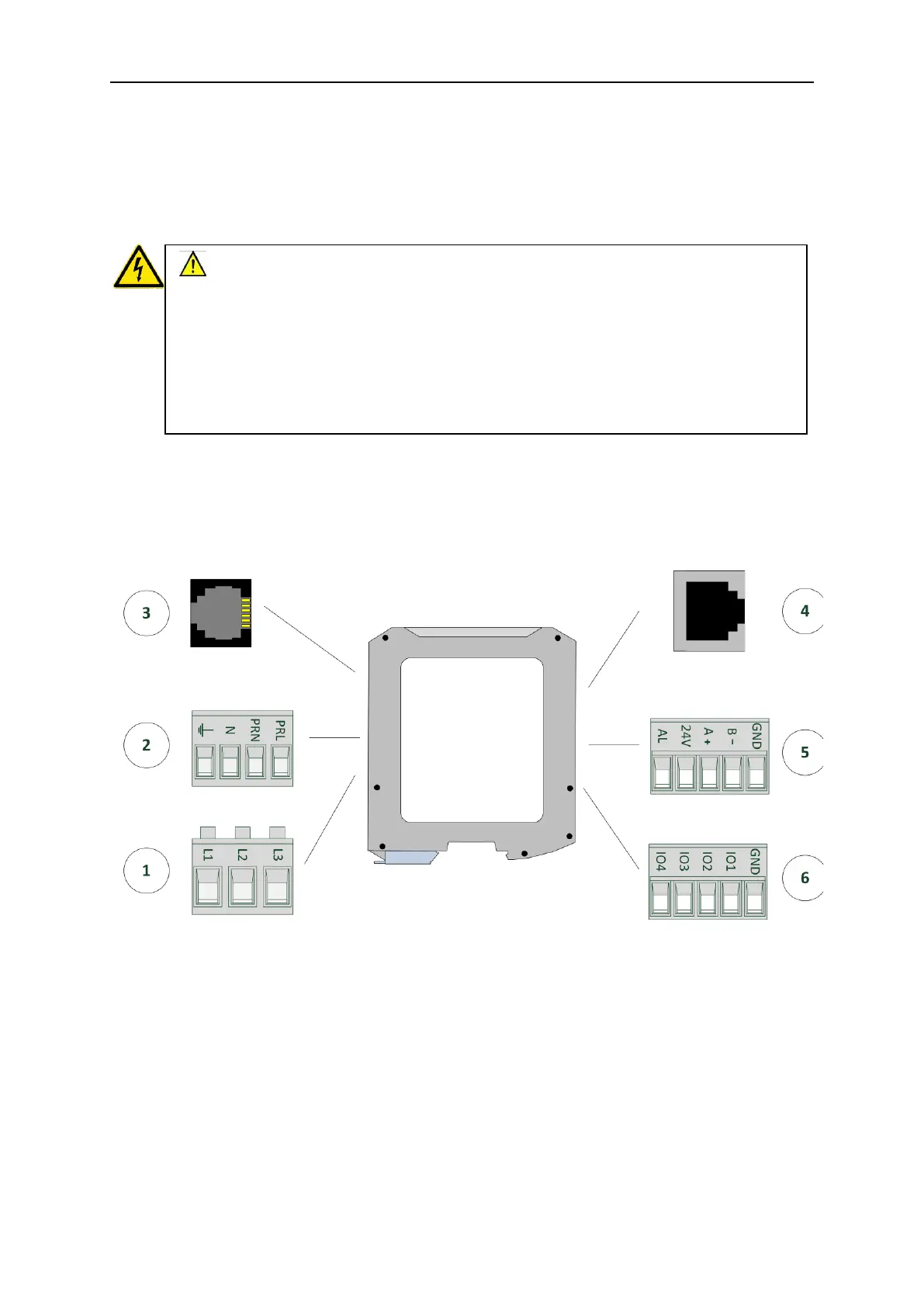

Figure 4 shows the arrangement of the connections of the econ sens3.
Additional details on assignment of the individual connections can be found in subsequent chapters.
Warning!
Incorrect connection can result in serious bodily harm, including death, or property
damage.
As a general rule, use ferrules to connect flexible wires. Also ensure that the torques
specified for the individual screw terminals are not exceeded or undercut.
