Econ sens3 - Analog Output 4 to 20 Ma; Analog Input 4 to 20 Ma; Analog Input 0 to 10 V;30 V

Connection of the instrument 28
Manual econ sens3 Version 3.0
Analog output 4 to 20 mA
Analog input 4 to 20 mA
Analog input 0 to 10V/30 V

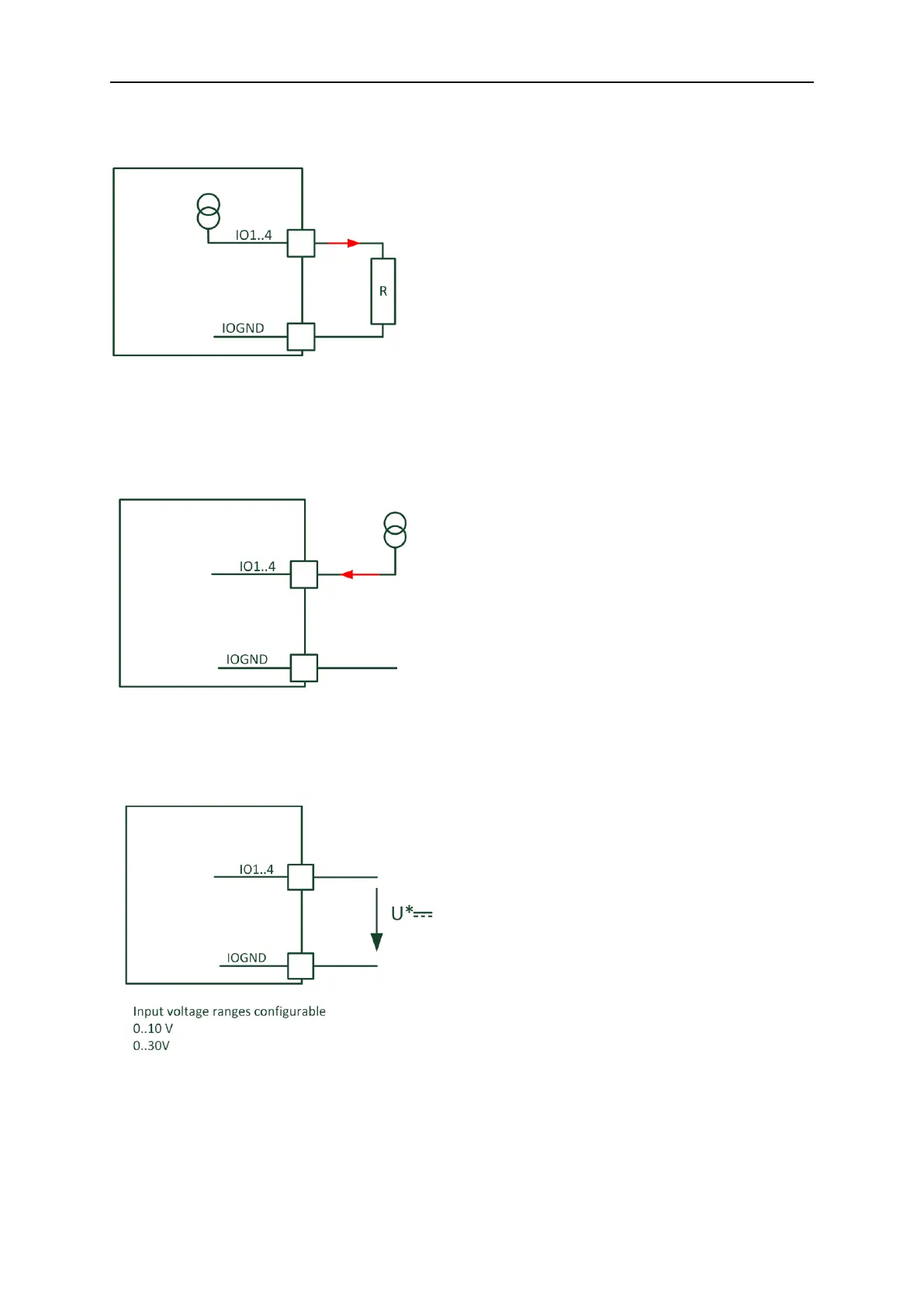

Figure 17: Analog output 4 to 20mA
Figure 18: Analog input 4 to 20mA
Figure 19: Analog input 0 to 10V/30V
I= 4..20 mA
I= 4..20 mA
