8.5 Input / output menu (LOG version)
The input / output menu is shown when inputs and outputs are configured in the LOG version of the
econ sens3. This can be enabled using the options key (see Options submenu in Chapter 8.10).
The applied values / impulses of the digital or analog inputs and outputs are displayed in the menu
window.
Inputs / outputs are configured in the Input / output submenu in Chapter 8.10.

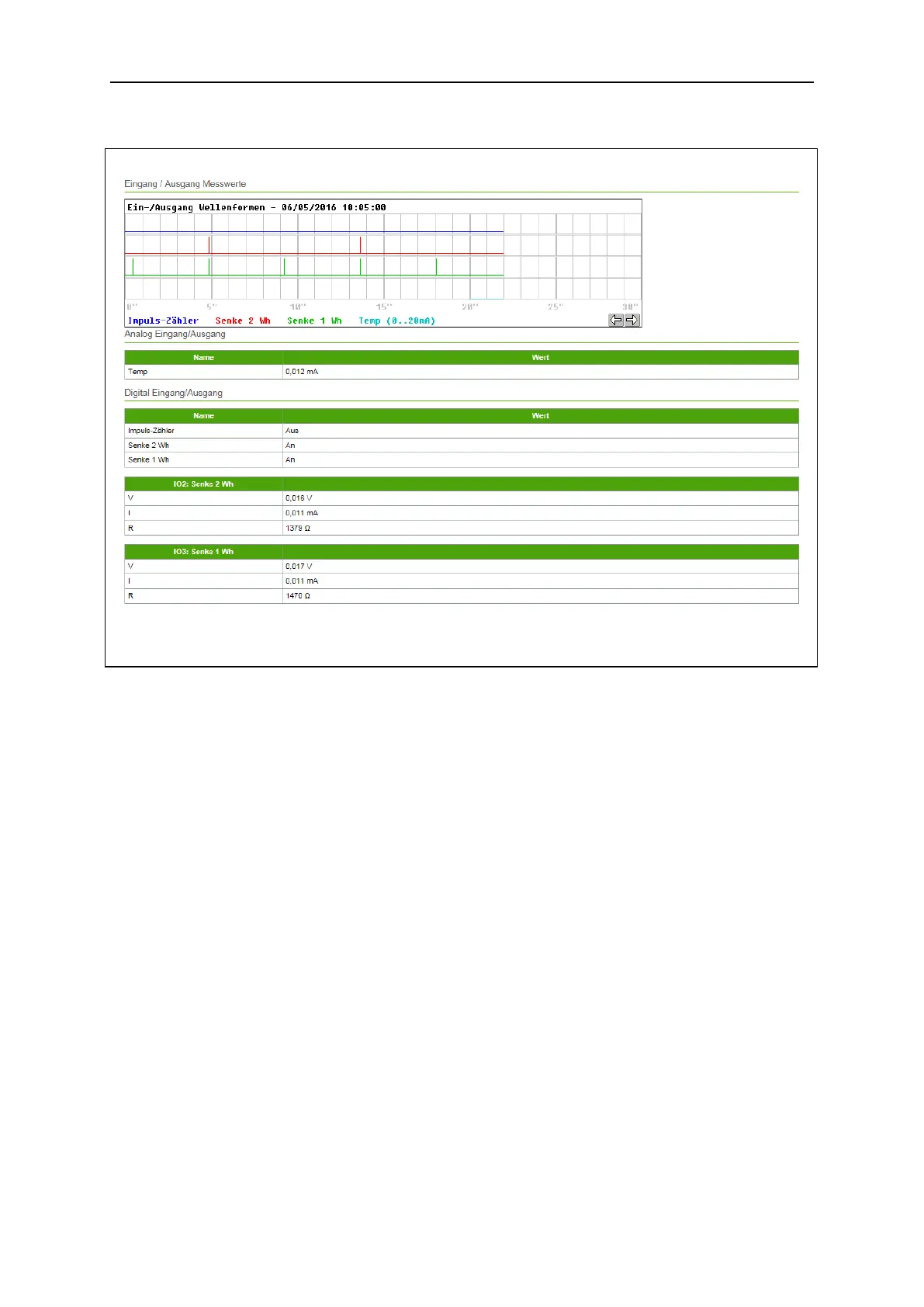

Figure 38: Start page of the input / output menu
