Econ sens3 User Manual

Connection of the instrument 26
Manual econ sens3 Version 3.0
Digital output (pulse)
In the configuration as digital output the
instrument supplies an external resistor
with a current pulse that is configurable
in the software. This can be 1, 2, 5, 10,
or a maximum of 20 mA. Select the
external resistor in such a way that its
voltage dip does not exceed 30 VDC!

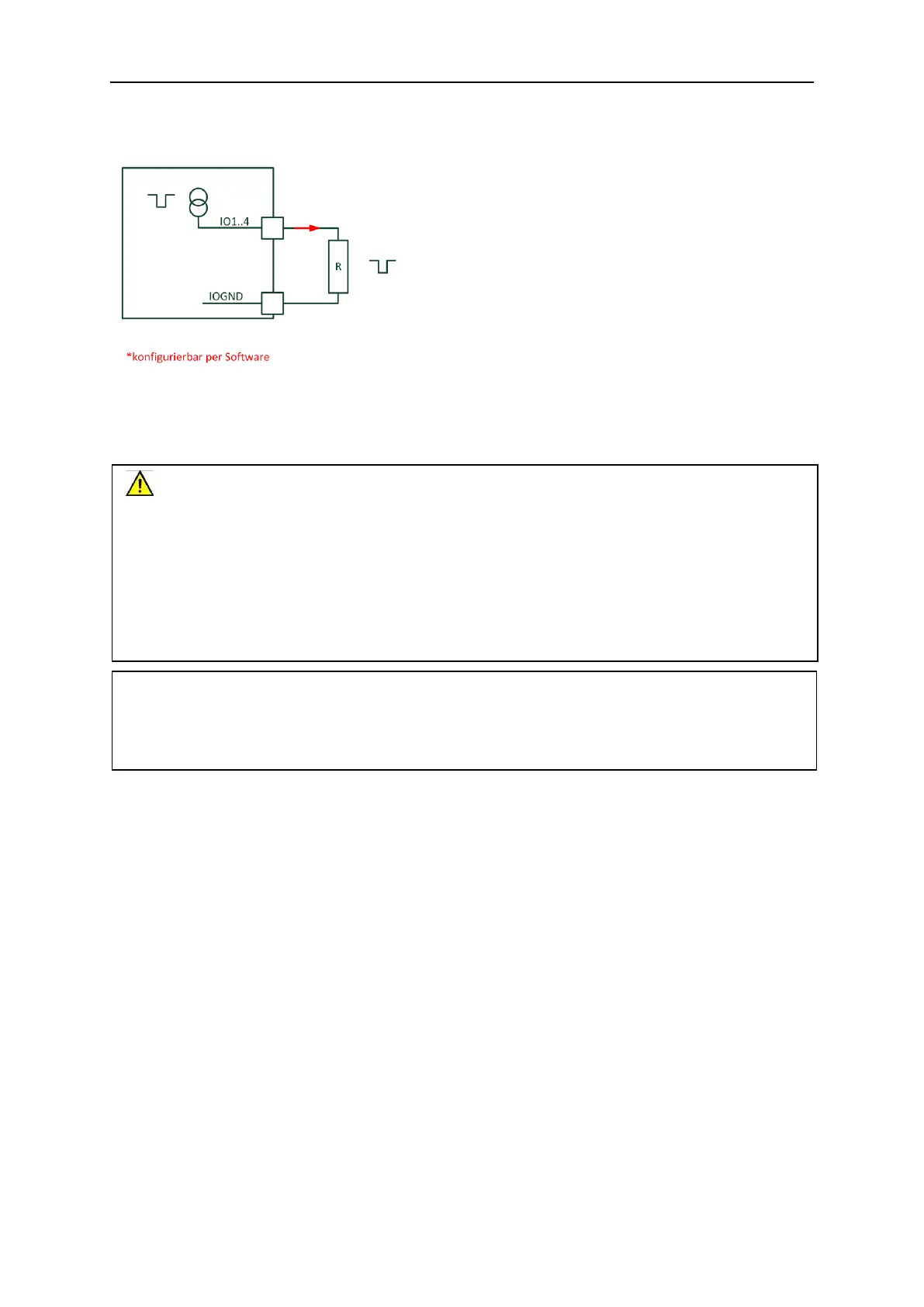

Figure 14: Digital pulse output
Caution!
Metal film resistors with a minimum power loss of 0.4 W are recommended as external resistors.
Resistors with lower power dissipation can become hot during operation and cause burn injuries /
skin irritation.
Attention!
The maximum cable length in the “open collector” and “digital output” configuration is 5 m.
I=1,2,5,10,20 mA*
