F9 Fetal & maternal Monitor Service Manual Installation
- 8 -
3.2 Electrical Requirements
Operating Voltage:
Operating Frequency:
Input Power:
100V-240V ~
50Hz/60Hz
110VA
3.3 Safety Requirements
SHOCK HAZARD- the power receptacle must be a three-wire grounded outlet. A
hospital grade outlet is required. Never adapt the three-prong plug from the monitor to
fit a two-slot outlet. If the outlet has only two slots, make sure that it is replaced with a
three-slot grounded outlet before attempting to operate the monitor.
Do not touch signal input or output connector and the patient simultaneously.
Equipment and devices that connect to the monitor should form an equipotential body to
ensure effective grounding.
Do not switch on the monitor until all cables have been properly connected and verified.
3.4 Installing the Monitor
3.4.1 Installing the Monitor on a Flat Surface.
Place the monitor on a flat surface. Make sure the surface does not vibrate, and is free of
corrosive medicine and dust.

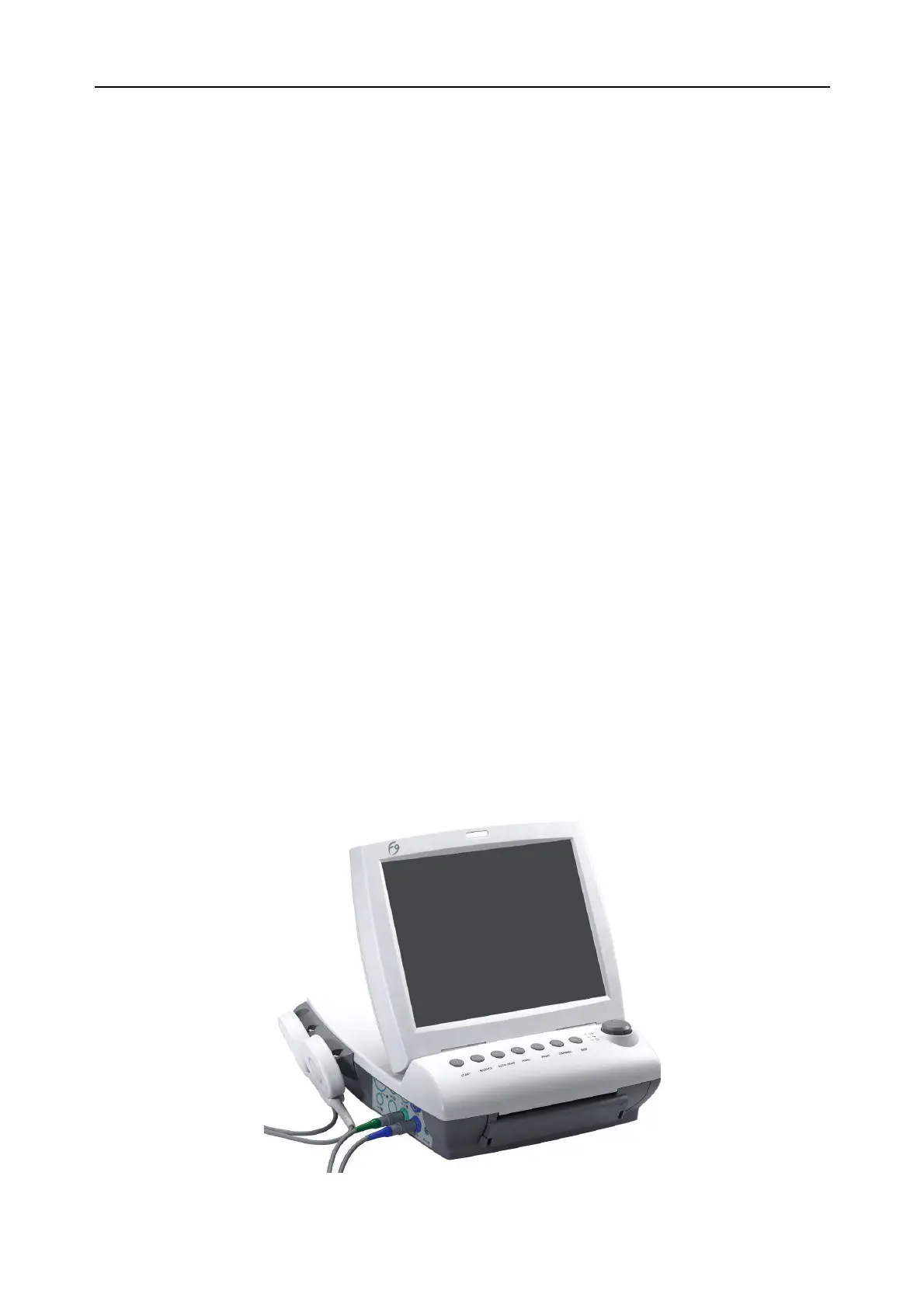

Figure 3-1 The monitor on a flat surface
