EDAN F9 - Replacing the Gear Assembly; Replacing the Speaker

F9 Fetal & maternal Monitor Service Manual Disassembling the Monitor
- 53 -

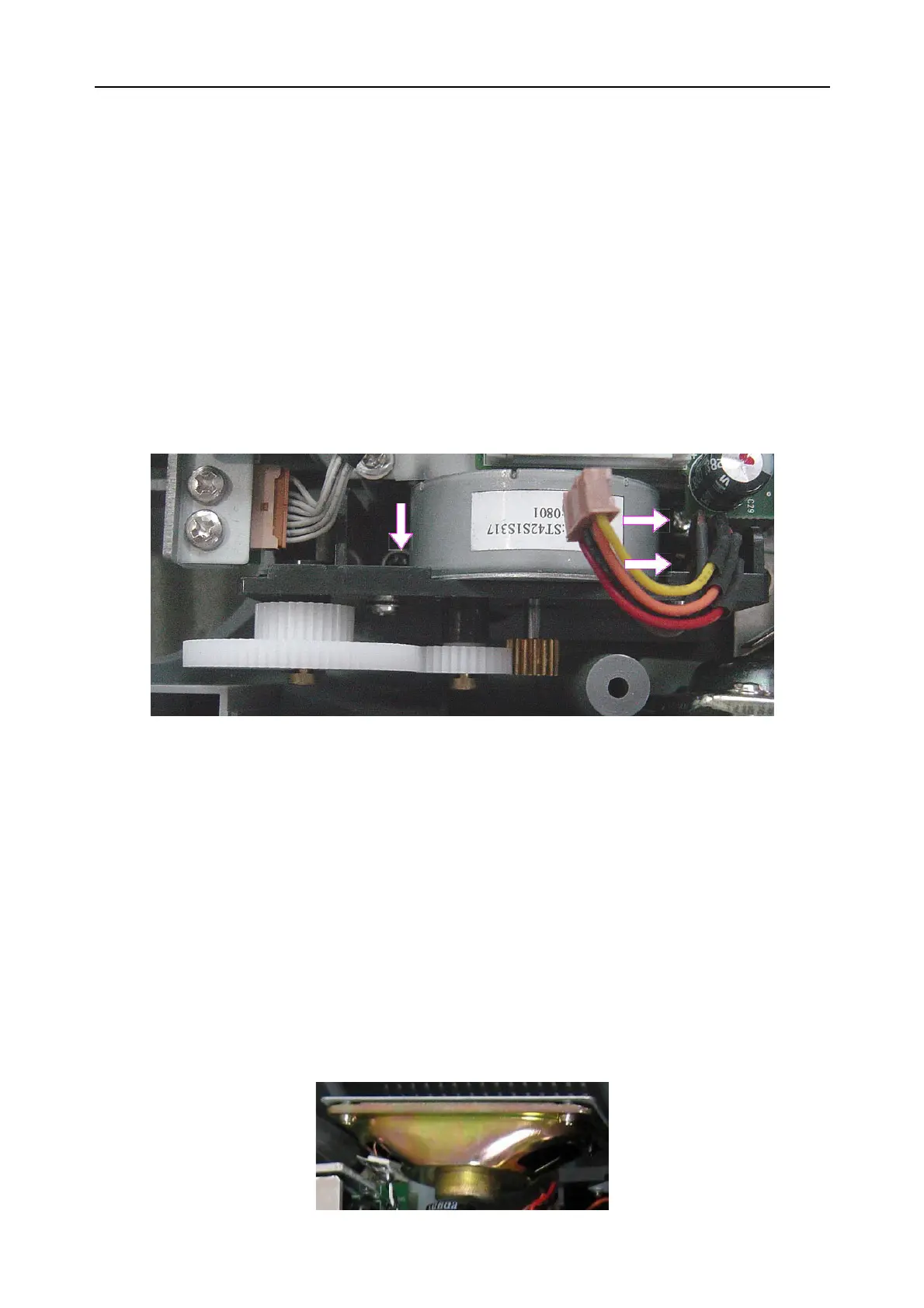

10.4.5 Replacing the Gear Assembly
To remove the gear assembly,
1)
Separate the upper assembly and the lower assembly.
2)
Disconnect the wires’ connector from the print controlling board.
3)
Remove the three screws securing the gear assembly.
To replace the gear assembly,
Replace the gear assembly in a reverse procedure. Ensure the wires’ connector is correctly
connected to the print controlling board.
10.4.6 Replacing the Speaker
To remove the speaker,
1)
Separate the upper assembly and the lower assembly.
2)
Unplug the speaker wires’ connector from the FM module.
3)
Remove the four screws securing the speaker.
To replace the speaker,
Replace the speaker in a reverse procedure. Ensure the wires’ connector is correctly connected to
the FM module.
