F9 Fetal & maternal Monitor Service Manual Disassembling the Monitor
- 48 -
lower assembly.
4)
Hold both upper assembly and lower assembly together, place the monitor upright again.
5)
Carefully lift up the upper assembly and place it upside down on the left side of the lower
assembly.

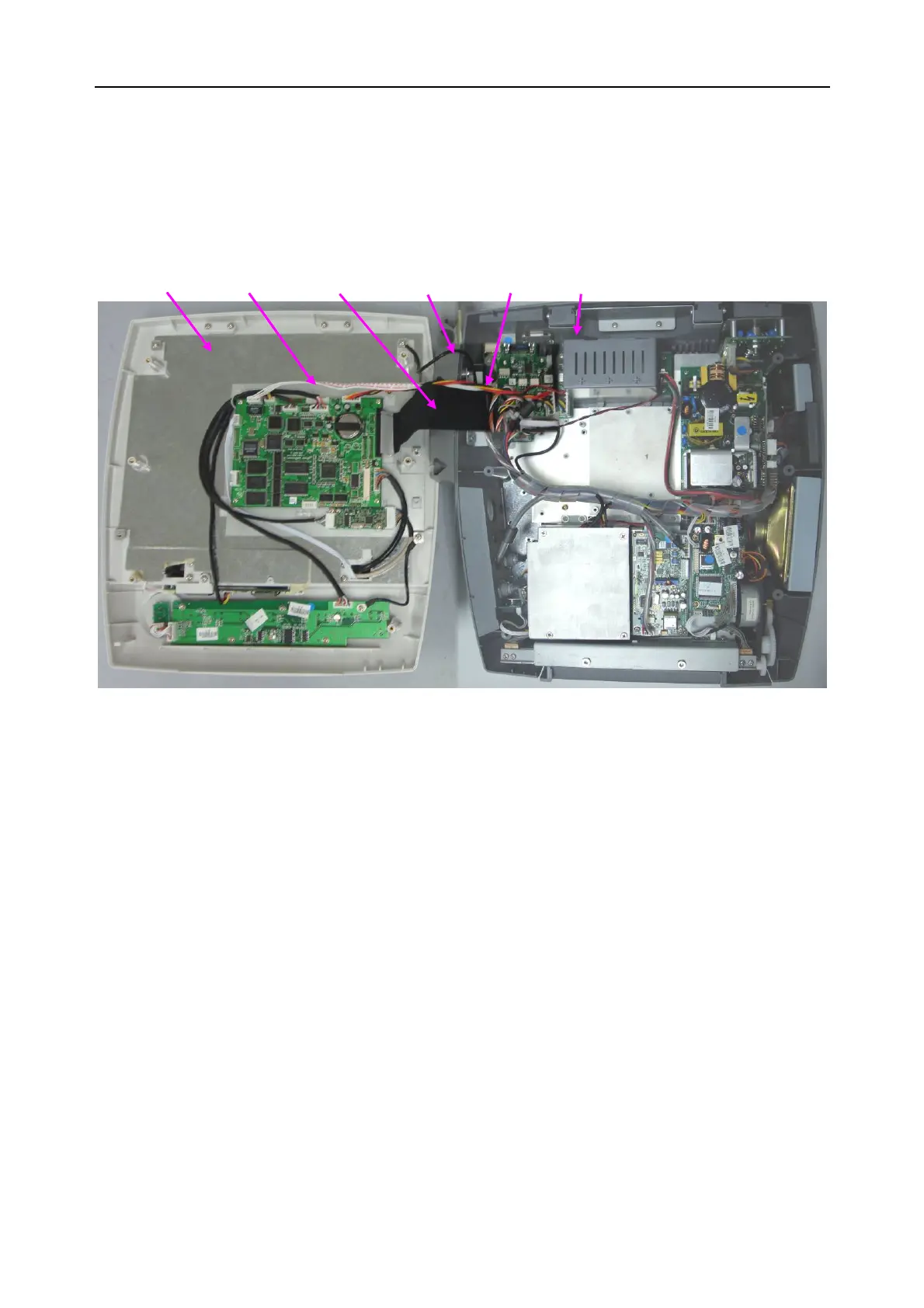

1 – Upper assembly
2 – Network Cable
3 – Main Control Board & Bottom Interfaces Board Connecting Cable
4 – Ground Wire (connecting the upper assembly and the lower assembly)
5 – Main control board Power Cable
6 – Lower assembly
6) Disconnect the cables/wires to separate the two parts.
10.4 Disassembling the Lower assembly
10.4.1 Replacing the FM Module
To remove the FM module,
1)
Separate the upper assembly and the lower assembly.
2)
Remove the four screws on the FM module shield cover.
