F9 Fetal & maternal Monitor Service Manual Principle Introduction
- 34 -
7.3 Interfaces

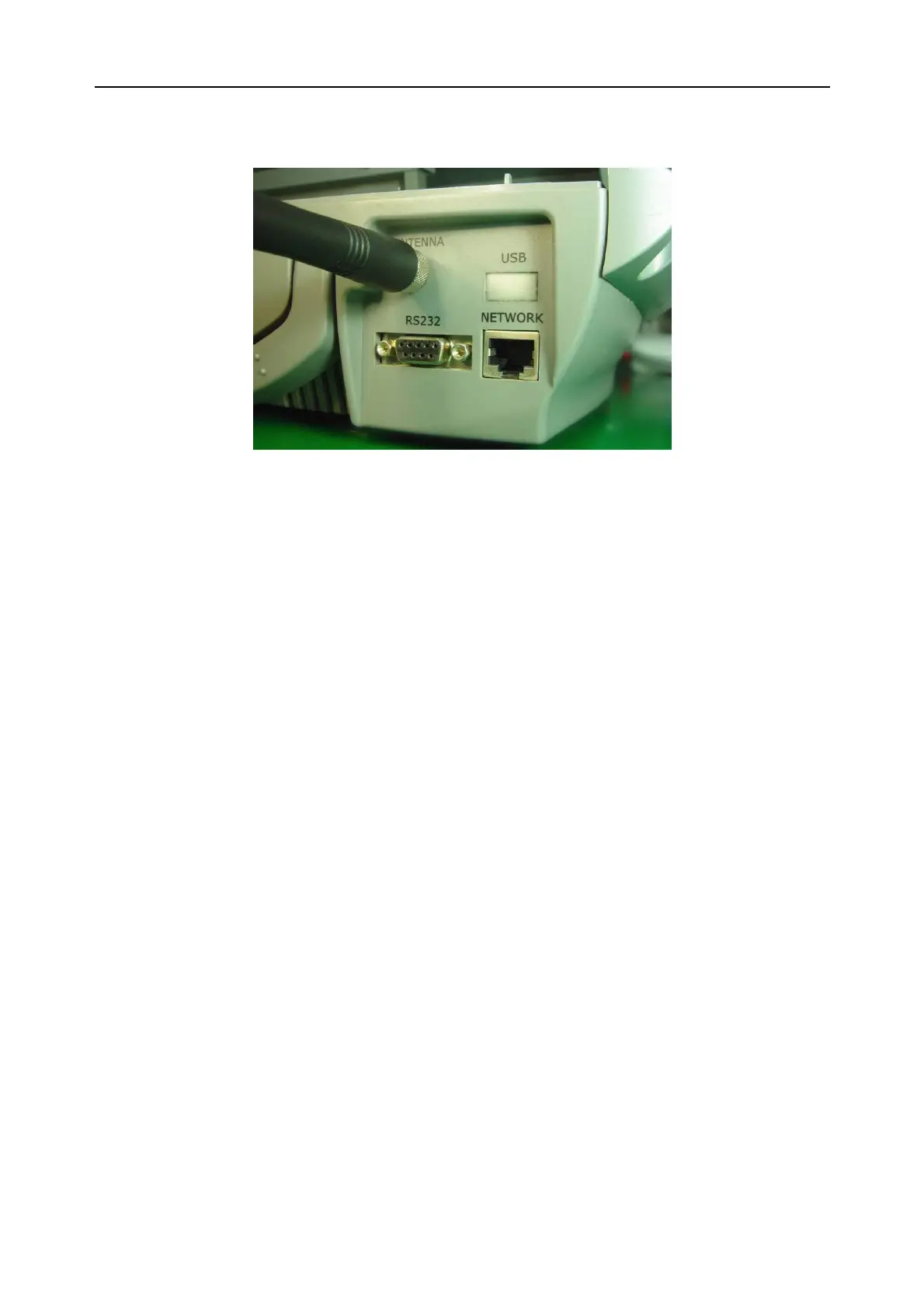

On the rear panel of the monitor, there are two interfaces and an antenna:
z DB 9 interface (RS232)
z RJ45 interface (NETWORK)
z Antenna
7.3.1 DB9 Interface
All the monitors are configured with a DB9 interface.
It is used to connect the monitor to a computer for monitoring information collection (with a
software such as Insight.), or to an obstetrical monitoring system such as MFM-CNS.
7.3.2 RJ45 Interface
All the monitors are configured with a RJ45 interface.
It is used to connect the monitor to a computer for updating or monitoring information collection
(with a software such as Insight.), or to an obstetrical monitoring system such as MFM-CNS.
7.3.3 Antenna
If the monitor has a wireless module built in it, an antenna will be configured.
It is used to send signals of the F9 bedside monitor to the obstetrical monitoring system.
