F9 Fetal & maternal Monitor Service Manual Disassembling the Monitor
- 59 -
10.5.5 Replacing the LCD
To remove the LCD,
1)
Separate the upper assembly and the lower assembly.
2)

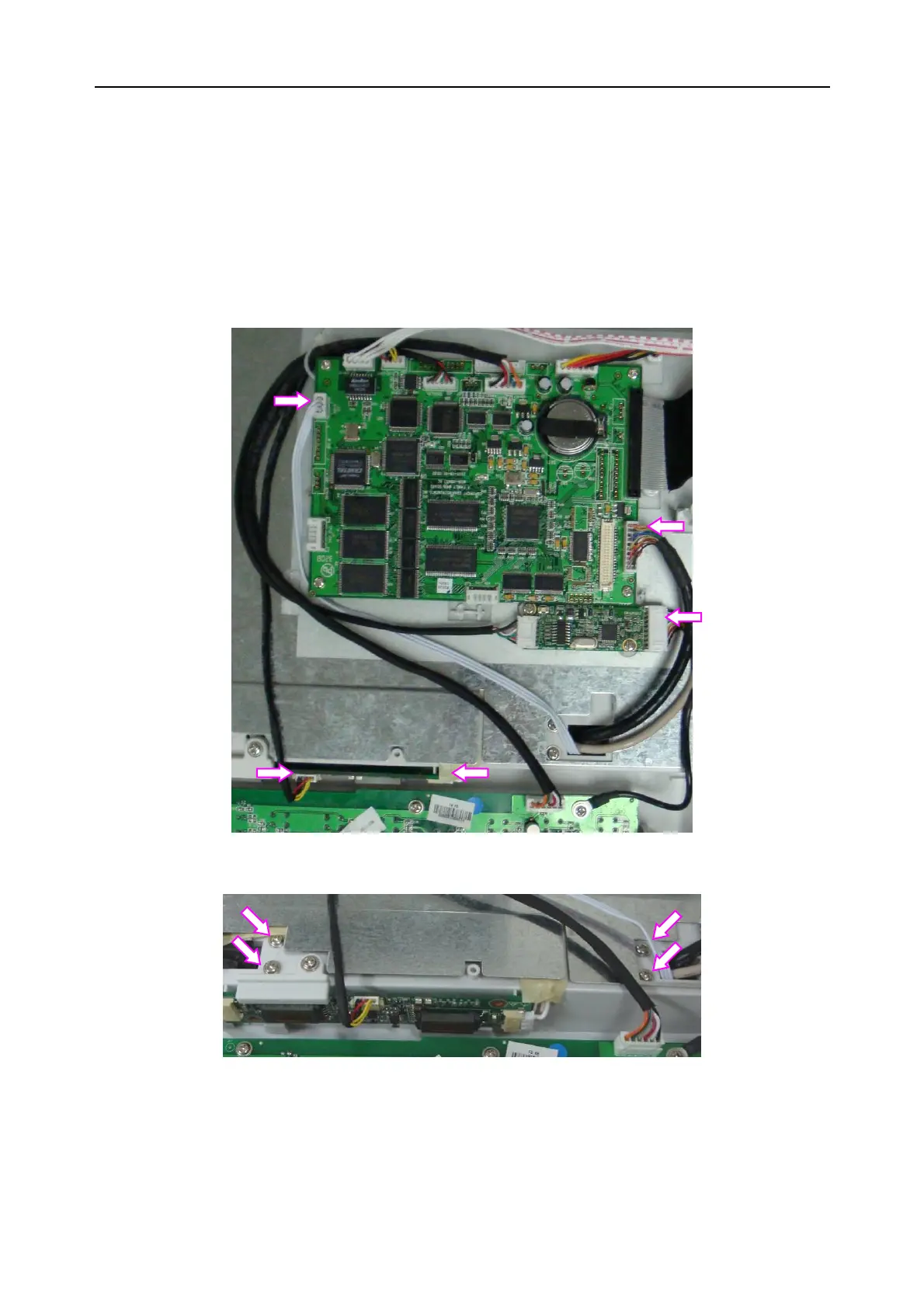

Disconnect the five wires from the power inverter board, main control board and touch
screen controlling board (shown with arrows).
3)
Remove the four screws shown with the arrows.
4)
Place the upper assembly upright. Open the display assembly completely. Remove four
screws securing the display assembly stander.
